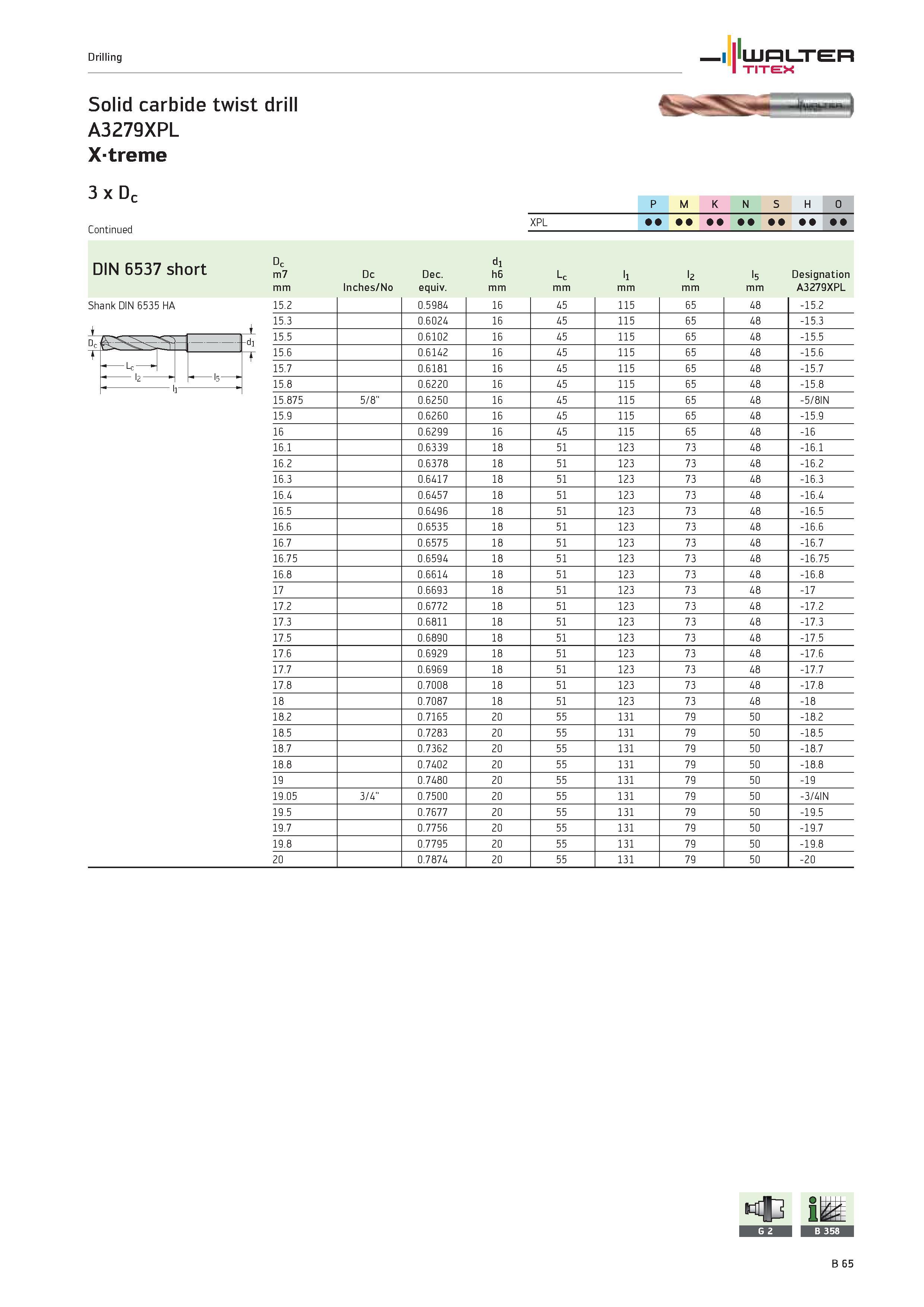

Drilling WALTER TITEX Solid carbide twist drill A3279XPL X-treme 3 x Dc P M K N S H O DIN 6537 short di Shank DIN 6535 HA m7 Dc Dec. h6 Lc li l2 l5 Designation mm Inches/No equiv. mm A3279XPL 15.2 0.5984 16 45 115 65 48 -15.2 15.3 0.6024 16 45 115 65 48 -15.3 15.5 0.6102 16 45 115 65 48 -15.5 15.6 0.6142 16 45 115 65 48 -15.6 15.7 0.6181 16 45 115 65 48 -15.7 15.8 0.6220 16 45 115 65 48 -15.8 15.875 5/8" 0.6250 16 45 115 65 48 -5/8IN 15.9 0.6260 16 45 115 65 48 -15.9 16 0.6299 16 45 115 65 48 -16 16.1 0.6339 18 51 123 73 48 -16.1 16.2 0.6378 18 51 123 73 48 -16.2 16.3 0.6417 18 51 123 73 48 -16.3 16.4 0.6457 18 51 123 73 48 -16.4 16.5 0.6496 18 51 123 73 48 -16.5 16.6 0.6535 18 51 123 73 48 -16.6 16.7 0.6575 18 51 123 73 48 -16.7 16.75 0.6594 18 51 123 73 48 -16.75 16.8 0.6614 18 51 123 73 48 -16.8 17 0.6693 18 51 123 73 48 -17 17.2 0.6772 18 51 123 73 48 -17.2 17.3 0.6811 18 51 123 73 48 -17.3 17.5 0.6890 18 51 123 73 48 -17.5 17.6 0.6929 18 51 123 73 48 -17.6 17.7 0.6969 18 51 123 73 48 -17.7 17.8 0.7008 18 51 123 73 48 -17.8 18 0.7087 18 51 123 73 48 -18 18.2 0.7165 20 55 131 79 50 -18.2 18.5 0.7283 20 55 131 79 50 -18.5 18.7 0.7362 20 55 131 79 50 -18.7 18.8 0.7402 20 55 131 79 50 -18.8 19 0.7480 20 55 131 79 50 -19 19.05 3/4" 0.7500 20 55 131 79 50 -3/4IN 19.5 0.7677 20 55 131 79 50 -19.5 19.7 0.7756 20 55 131 79 50 -19.7 19.8 0.7795 20 55 131 79 50 -19.8 20 0.7874 20 55 131 79 50 -20 D c L
