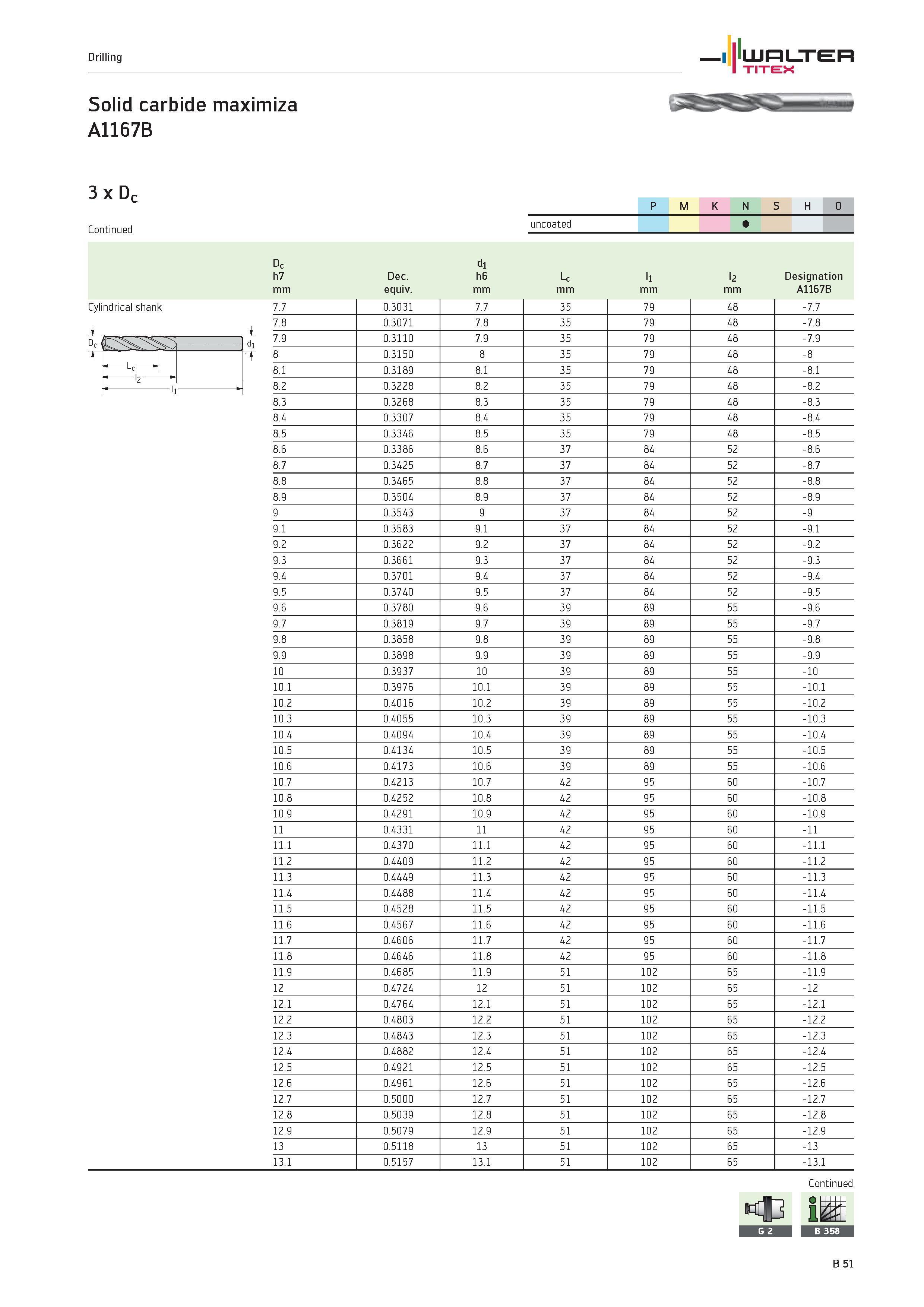

Drilling WALTER TITEX Solid carbide maximiza A1167B 3 x Dc Cylindrical shank 1 P M K N S H O uncoated Dc di h7 Dec. h6 Lc li l2 Designation mm equiv. mm A1167B 7.7 0.3031 7.7 35 79 48 -7.7 7.8 0.3071 7.8 35 79 48 -7.8 7.9 0.3110 7.9 35 79 48 -7.9 8 0.3150 8 35 79 48 -8 8.1 0.3189 8.1 35 79 48 -8.1 8.2 0.3228 8.2 35 79 48 -8.2 8.3 0.3268 8.3 35 79 48 -8.3 8.4 0.3307 8.4 35 79 48 -8.4 8.5 0.3346 8.5 35 79 48 -8.5 8.6 0.3386 8.6 37 84 52 -8.6 8.7 0.3425 8.7 37 84 52 -8.7 8.8 0.3465 8.8 37 84 52 -8.8 8.9 0.3504 8.9 37 84 52 -8.9 9 0.3543 9 37 84 52 -9 9.1 0.3583 9.1 37 84 52 -9.1 9.2 0.3622 9.2 37 84 52 -9.2 9.3 0.3661 9.3 37 84 52 -9.3 9.4 0.3701 9.4 37 84 52 -9.4 9.5 0.3740 9.5 37 84 52 -9.5 9.6 0.3780 9.6 39 89 55 -9.6 9.7 0.3819 9.7 39 89 55 -9.7 9.8 0.3858 9.8 39 89 55 -9.8 9.9 0.3898 9.9 39 89 55 -9.9 10 0.3937 10 39 89 55 -10 10.1 0.3976 10.1 39 89 55 -10.1 10.2 0.4016 10.2 39 89 55 -10.2 10.3 0.4055 10.3 39 89 55 -10.3 10.4 0.4094 10.4 39 89 55 -10.4 10.5 0.4134 10.5 39 89 55 -10.5 10.6 0.4173 10.6 39 89 55 -10.6 10.7 0.4213 10.7 42 95 60 -10.7 10.8 0.4252 10.8 42 95 60 -10.8 10.9 0.4291 10.9 42 95 60 -10.9 11 0.4331 11 42 95 60 -11 11.1 0.4370 11.1 42 95 60 -11.1 11.2 0.4409 11.2 42 95 60 -11.2 11.3 0.4449 11.3 42 95 60 -11.3 11.4 0.4488 11.4 42 95 60 -11.4 11.5 0.4528 11.5 42 95 60 -11.5 11.6 0.4567 11.6 42 95 60 -11.6 11.7 0.4606 11.7 42 95 60 -11.7 11.8 0.4646 11.8 42 95 60 -11.8 11.9 0.4685 11.9 51 102 65 -11.9 12 0.4724 12 51 102 65 -12 12.1 0.4764 12.1 51 102 65 -12.1 12.2 0.4803 12.2 51 102 65 -12.2 12.3 0.4843 12.3 51 102 65 -12.3 12.4 0.4882 12.4 51 102 65 -12.4 12.5 0.4921 12.5 51 102 65 -12.5 12.6 0.4961 12.6 51 102 65 -12.6 12.7 0.5000 12.7 51 102 65 -12.7 12.8 0.5039 12.8 51 102 65 -12.8 12.9 0.5079 12.9 51 102 65 -12.9 13 0.5118 13 51 102 65 -13 13.1 0.5157 13.1 51 102 65 -13.1 B 51
