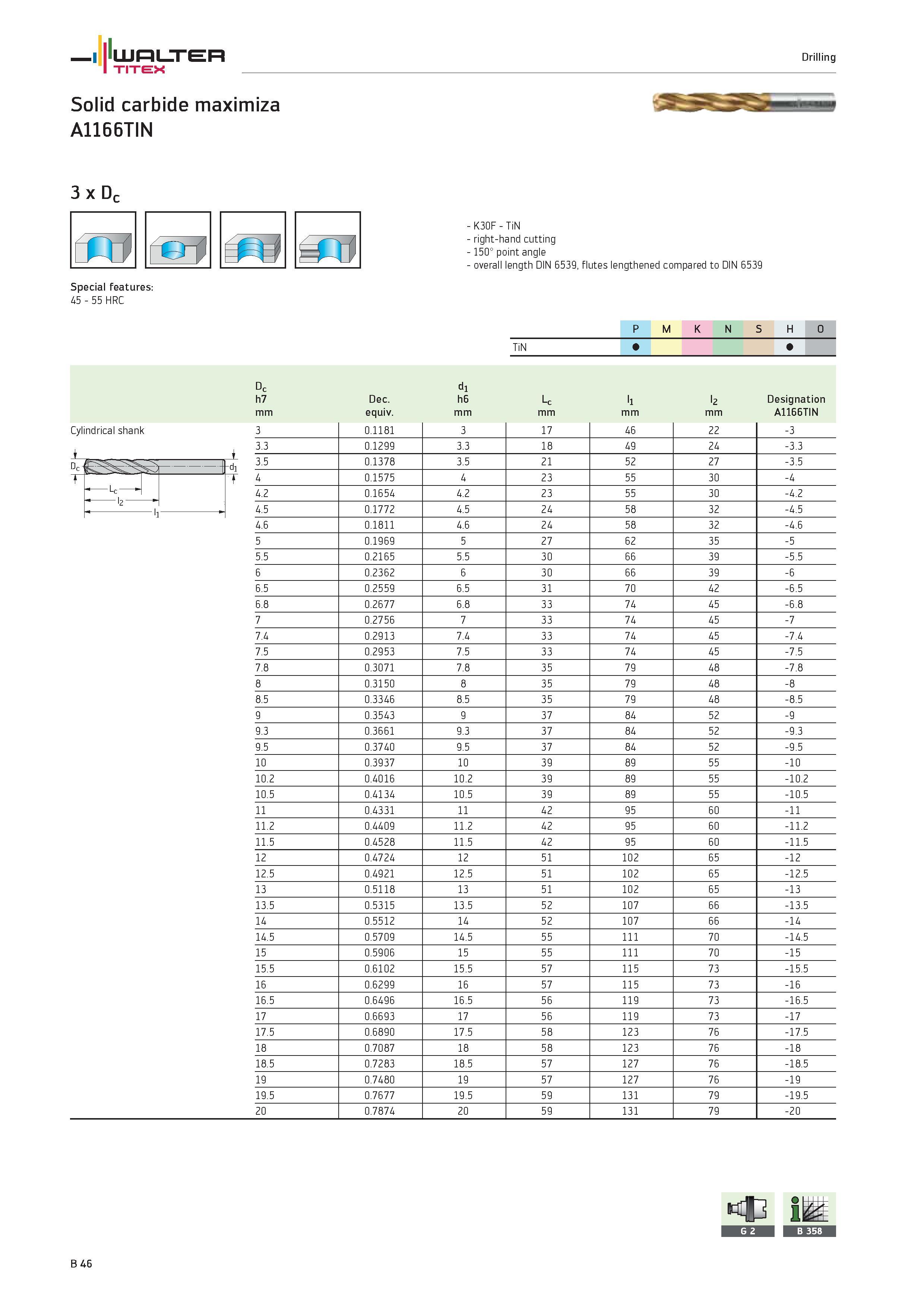

WALTER TITEX Solid carbide maximiza A1166TIN Drilling 3 x Dc fil re Special features 45 55 HRC K30F TiN right-hand cutting 150° point angle overall length DIN 6539, flutes lengthened compared to DIN 6539 P M K N S H O TiN Dc di h7 Dec. h6 Lc li l2 Designation mm equiv. mm A1166TIN Cylindrical shank 3 0.1181 3 17 46 22 -3 1 13 0.1299 3.3 18 49 24 -3.3 -I 3.5 0.1378 3.5 21 52 27 -3.5 1 h T 4 0.1575 4 23 55 30 -4 4.2 0.1654 4.2 23 55 30 -4.2 4.5 0.1772 4.5 24 58 32 -4.5 4.6 0.1811 4.6 24 58 32 -4.6 5 0.1969 5 27 62 35 -5 5.5 0.2165 5.5 30 66 39 -5.5 6 0.2362 6 30 66 39 -6 6.5 0.2559 6.5 31 70 42 -6.5 6.8 0.2677 6.8 33 74 45 -6.8 7 0.2756 7 33 74 45 -7 7.4 0.2913 7.4 33 74 45 -7.4 7.5 0.2953 7.5 33 74 45 -7.5 7.8 0.3071 7.8 35 79 48 -7.8 8 0.3150 8 35 79 48 -8 8.5 0.3346 8.5 35 79 48 -8.5 9 0.3543 9 37 84 52 -9 9.3 0.3661 9.3 37 84 52 -9.3 9.5 0.3740 9.5 37 84 52 -9.5 10 0.3937 10 39 89 55 -10 10.2 0.4016 10.2 39 89 55 -10.2 10.5 0.4134 10.5 39 89 55 -10.5 11 0.4331 11 42 95 60 -11 11.2 0.4409 11.2 42 95 60 -11.2 11.5 0.4528 11.5 42 95 60 -11.5 12 0.4724 12 51 102 65 -12 12.5 0.4921 12.5 51 102 65 -12.5 13 0.5118 13 51 102 65 -13 13.5 0.5315 13.5 52 107 66 -13.5 14 0.5512 14 52 107 66 -14 14.5 0.5709 14.5 55 111 70 -14.5 15 0.5906 15 55 111 70 -15 15.5 0.6102 15.5 57 115 73 -15.5 16 0.6299 16 57 115 73 -16 16.5 0.6496 16.5 56 119 73 -16.5 17 0.6693 17 56 119 73 -17 17.5 0.6890 17.5 58 123 76 -17.5 18 0.7087 18 58 123 76 -18 18.5 0.7283 18.5 57 127 76 -18.5 19 0.7480 19 57 127 76 -19 19.5 0.7677 19.5 59 131 79 -19.5 20 0.7874 20 59 131 79 -20 B 46
