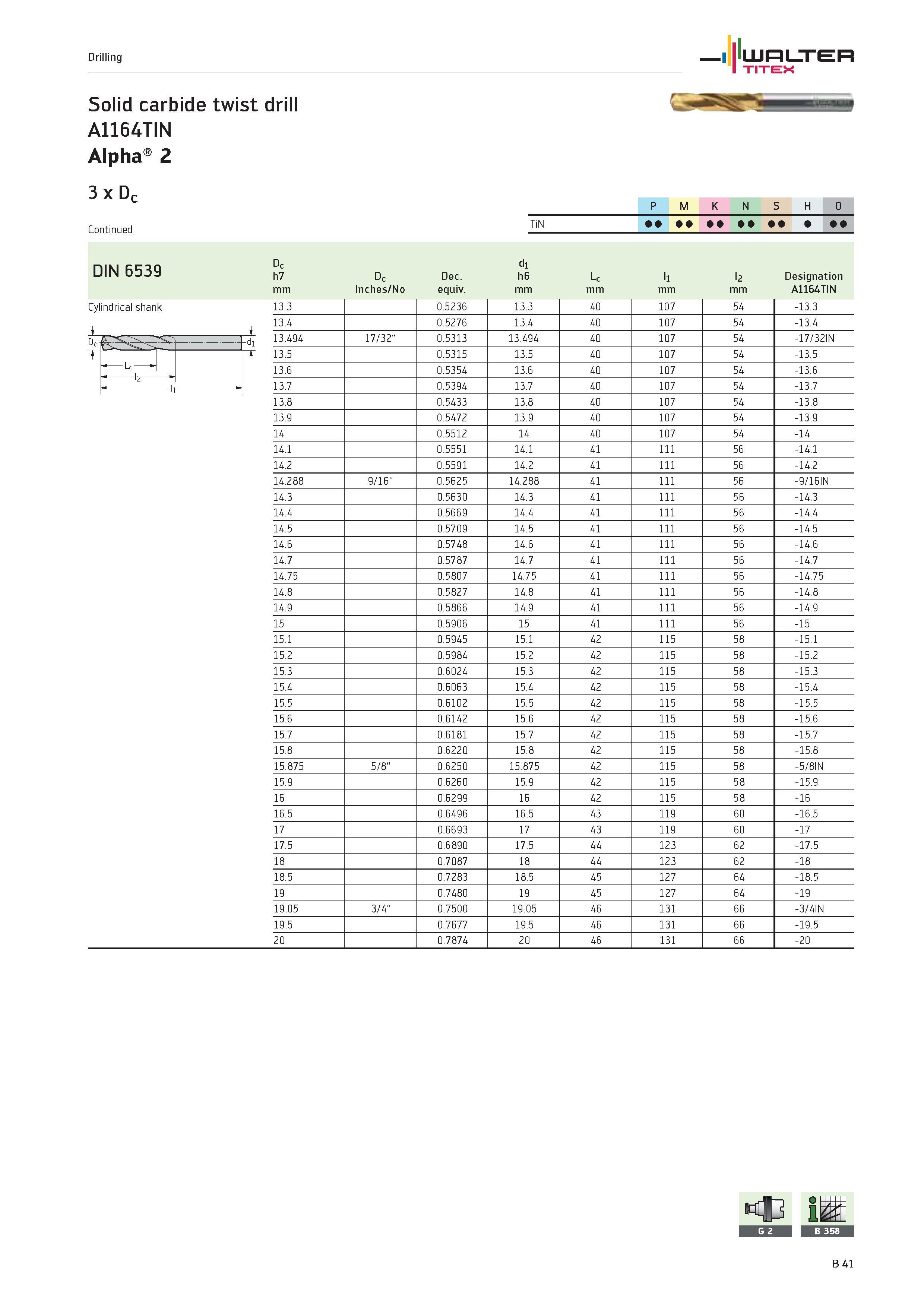

Drilling WALTER TITEX Solid carbide twist drill A1164TIN Alpha 2 3 x Dc P M K N S H O DIN 6539 Dc h7 mm Dc Inches/No Dec. equiv. di h6 mm Lc mm li mm l2 mm Designation A1164TIN Cylindrical shank 1 13.3 0.5236 13.3 40 107 54 -13.3 13.4 0.5276 13.4 40 107 54 -13.4 13.494 17/32" 0.5313 13.494 40 107 54 -17/32IN Dr -di t 13.5 0.5315 13.5 40 107 54 -13.5 Lc 13.6 0.5354 13.6 40 107 54 -13.6 li 13.7 0.5394 13.7 40 107 54 -13.7 13.8 0.5433 13.8 40 107 54 -13.8 13.9 0.5472 13.9 40 107 54 -13.9 14 0.5512 14 40 107 54 -14 14.1 0.5551 14.1 41 111 56 -14.1 14.2 0.5591 14.2 41 111 56 -14.2 14.288 9/16" 0.5625 14.288 41 111 56 -9/16IN 14.3 0.5630 14.3 41 111 56 -14.3 14.4 0.5669 14.4 41 111 56 -14.4 14.5 0.5709 14.5 41 111 56 -14.5 14.6 0.5748 14.6 41 111 56 -14.6 14.7 0.5787 14.7 41 111 56 -14.7 14.75 0.5807 14.75 41 111 56 -14.75 14.8 0.5827 14.8 41 111 56 -14.8 14.9 0.5866 14.9 41 111 56 -14.9 15 0.5906 15 41 111 56 -15 15.1 0.5945 15.1 42 115 58 -15.1 15.2 0.5984 15.2 42 115 58 -15.2 15.3 0.6024 15.3 42 115 58 -15.3 15.4 0.6063 15.4 42 115 58 -15.4 15.5 0.6102 15.5 42 115 58 -15.5 15.6 0.6142 15.6 42 115 58 -15.6 15.7 0.6181 15.7 42 115 58 -15.7 15.8 0.6220 15.8 42 115 58 -15.8 15.875 5/8" 0.6250 15.875 42 115 58 -5/8IN 15.9 0.6260 15.9 42 115 58 -15.9 16 0.6299 16 42 115 58 -16 16.5 0.6496 16.5 43 119 60 -16.5 17 0.6693 17 43 119 60 -17 17.5 0.6890 17.5 44 123 62 -17.5 18 0.7087 18 44 123 62 -18 18.5 0.7283 18.5 45 127 64 -18.5 19 0.7480 19 45 127 64 -19 19.05 3/4" 0.7500 19.05 46 131 66 -3/4IN 19.5 0.7677 19.5 46 131 66 -19.5 20 0.7874 20 46 131 66 -20
