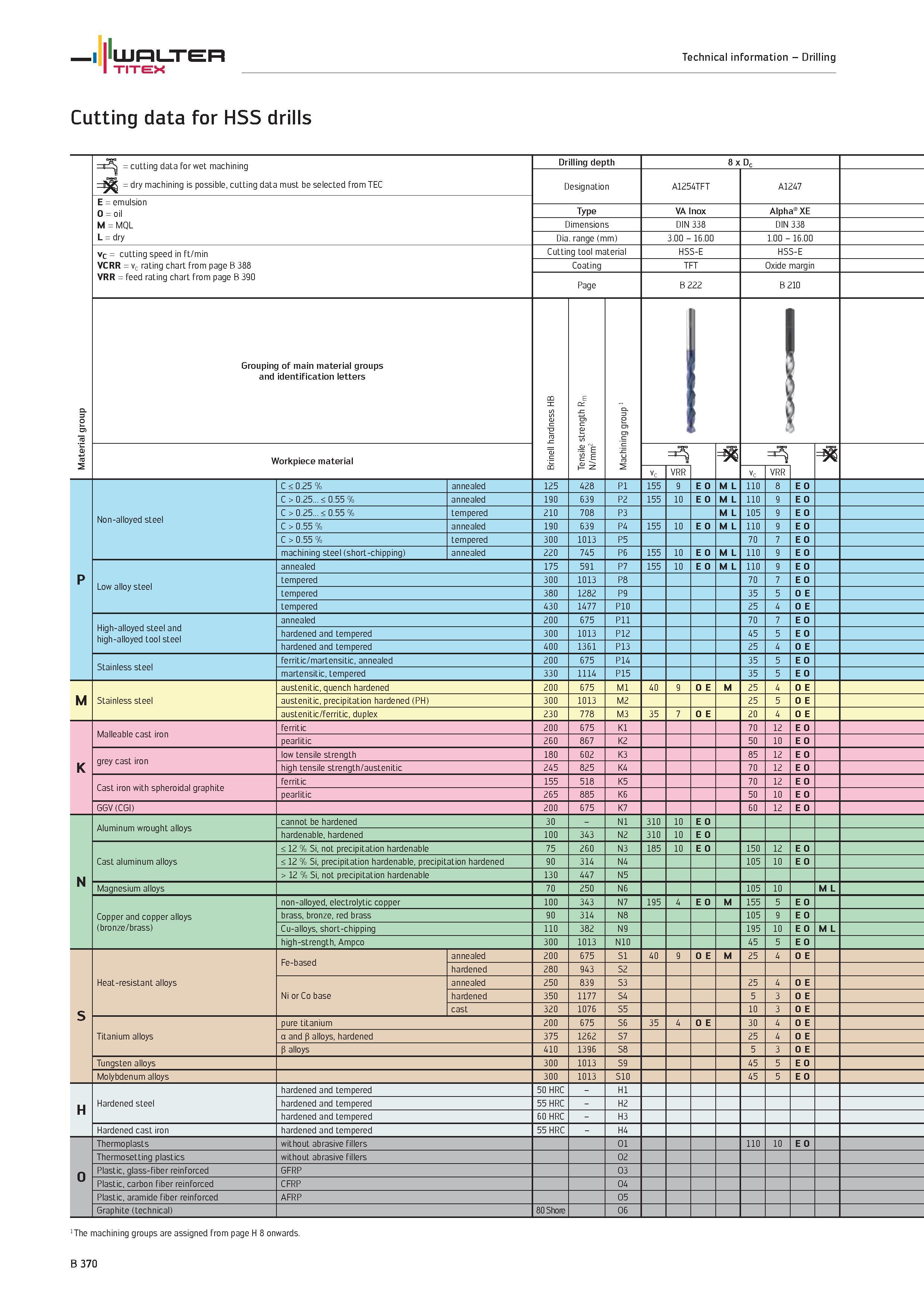

WALTER Technical information Drilling TITEX Cutting data for HSS drills Material group cutting data for wet machining dry machining is possible, cutting data must be selected from TEC Drilling depth 8 x Dc Designation A1254TFT A1247 E emulsion O oil M MQL L dry Type VA Inox Alpha XE Dimensions DIN 338 Dia. range (mm) 3.00 16.00 1.00 16.00 vc cutting speed in ft/min VCRR vc rating chart from page B 388 VRR feed rating chart from page B 390 Cutting tool material HSS-E Coating TFT Oxide margin Page B 222 B 210 Grouping of main material groups and identification letters Brinell hardness HB Tensile strength Rm N/mm2 Machining group 1 Workpiece material 3 Vc VRR Vc VRR p Non-alloyed steel C < 0.25 % annealed 125 428 P1 155 110 8 > 0.25 < 0.55 % annealed 190 639 P2 155 10 110 9 > 0.25 < 0.55 % tempered 210 708 P3 M L 105 9 > 0.55 % annealed 190 639 P4 155 10 110 9 > 0.55 % tempered 300 1013 P5 70 7 machining steel (short-chipping) annealed 220 745 P6 155 10 110 9 Low alloy steel annealed 175 591 P7 155 10 110 9 tempered 300 1013 P8 70 7 tempered 380 1282 P9 35 5 O E tempered 430 1477 P10 25 4 O E High-alloyed steel and high-alloyed tool steel annealed 200 675 P11 70 7 hardened and tempered 300 1013 P12 45 5 hardened and tempered 400 1361 P13 25 4 O E Stainless steel ferritic/martensitic, annealed 200 675 P14 35 5 martensitic, tempered 330 1114 P15 35 5 M Stainless steel austenitic, quench hardened 200 675 M1 40 O E M 25 4 O E austenitic, precipitation hardened (PH) 300 1013 M2 25 5 O E austenitic/ferritic, duplex 230 778 M3 35 O E 20 4 O E K Malleable cast iron ferritic 200 675 K1 70 12 pearlitic 260 867 K2 50 10 grey cast iron low tensile strength 180 602 K3 85 12 high tensile strength/austenitic 245 825 K4 70 12 Cast iron with spheroidal graphite ferritic 155 518 K5 70 12 pearlitic 265 885 K6 50 10 GGV (CGI) 200 675 K7 60 12 N Aluminum wrought alloys cannot be hardened 30 N1 310 10 hardenable, hardened 100 343 N2 310 10 Cast aluminum alloys < 12 % Si, not precipitation hardenable 75 260 N3 185 10 150 12 < 12 % Si, precipitation hardenable, precipitation hardened 90 314 N4 105 10 > 12 % Si, not precipitation hardenable 130 447 N5 Magnesium alloys 70 250 N6 105 10 M L Copper and copper alloys (bronze/brass) non-alloyed, electrolytic copper 100 343 N7 195 4 M 155 5 brass, bronze, red brass 90 314 N8 105 9 Cu-alloys, short-chipping 110 382 N9 195 10 high-strength, Ampco 300 1013 N10 45 5 S Heat-resistant alloys Fe-based annealed 200 675 S1 40 O E M 25 4 O E hardened 280 943 S2 Ni or Co base annealed 250 839 S3 25 4 O E hardened 350 1177 S4 5 3 O E cast 320 1076 S5 10 3 O E Titanium alloys pure titanium 200 675 S6 35 4 O E 30 4 O E a and p alloys, hardened 375 1262 S7 25 4 O E P alloys 410 1396 S8 5 3 O E Tungsten alloys 300 1013 S9 45 5 Molybdenum alloys 300 1013 S10 45 5 H Hardened steel hardened and tempered 50 HRC H1 hardened and tempered 55 HRC H2 hardened and tempered 60 HRC H3 Hardened cast iron hardened and tempered 55 HRC H4 O Thermoplasts without abrasive fillers O1 110 10 Thermosetting plastics without abrasive fillers O2 Plastic, glass-fiber reinforced GFRP O3 Plastic, carbon fiber reinforced CFRP O4 Plastic, aramide fiber reinforced AFRP O5 Graphite (technical) 80 Shore O6 1 The machining groups are assigned from page H 8 onwards. B 370
