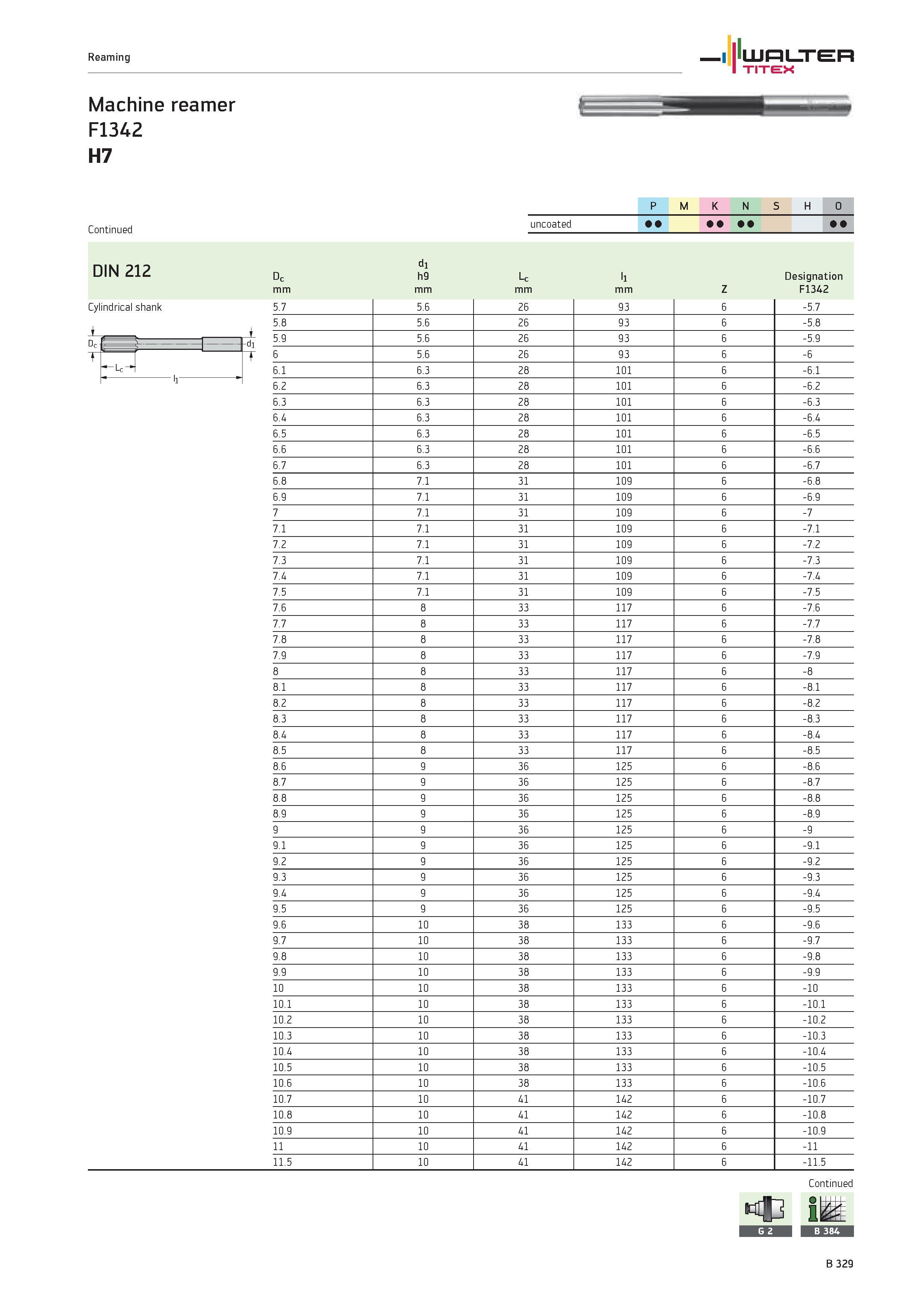

Reaming WALTER TITEX Machine reamer F1342 H7 P M K N S H O uncoated l DIN 212 Dc d -a jz Lc l1 Designation mm Z F1342 Cylindrical shank 5.7 5.6 26 93 6 -5.7 + + 5.8 5.6 26 93 6 -5.8 ’T > 1 5.9 5.6 26 93 6 -5.9 t 6 5.6 26 93 6 -6 Lc “4 6.1 6.3 28 101 6 -6.1 Il 6.2 6.3 28 101 6 -6.2 6.3 6.3 28 101 6 -6.3 6.4 6.3 28 101 6 -6.4 6.5 6.3 28 101 6 -6.5 6.6 6.3 28 101 6 -6.6 6.7 6.3 28 101 6 -6.7 6.8 7.1 31 9 0 6 -6.8 6.9 7.1 31 109 6 -6.9 7 7.1 31 109 6 -7 7.1 7.1 31 109 6 -7.1 7.2 7.1 31 109 6 -7.2 7.3 7.1 31 109 6 -7.3 7.4 7.1 31 109 6 -7.4 7.5 7.1 31 109 6 -7.5 7.6 8 33 117 6 -7.6 7.7 8 33 117 6 -7.7 7.8 8 33 117 6 -7.8 7.9 8 33 117 6 -7.9 8 8 33 117 6 -8 8.1 8 33 117 6 -8.1 8.2 8 33 117 6 -8.2 8.3 8 33 117 6 -8.3 8.4 8 33 117 6 -8.4 8.5 8 33 117 6 -8.5 8.6 9 36 125 6 -8.6 8.7 9 36 125 6 -8.7 8.8 9 36 125 6 -8.8 8.9 9 36 125 6 -8.9 9 9 36 125 6 -9 9.1 9 36 125 6 -9.1 9.2 9 36 125 6 -9.2 9.3 9 36 125 6 -9.3 9.4 9 36 125 6 -9.4 9.5 9 36 125 6 -9.5 9.6 10 38 133 6 -9.6 9.7 10 38 133 6 -9.7 9.8 10 38 133 6 -9.8 9.9 10 38 133 6 -9.9 10 10 38 133 6 -10 10.1 10 38 133 6 -10.1 10.2 10 38 133 6 -10.2 10.3 10 38 133 6 -10.3 10.4 10 38 133 6 -10.4 10.5 10 38 133 6 -10.5 10.6 10 38 133 6 -10.6 10.7 10 41 142 6 -10.7 10.8 10 41 142 6 -10.8 10.9 10 41 142 6 -10.9 11 10 41 142 6 -11 11.5 10 41 142 6 -11.5 B 329
