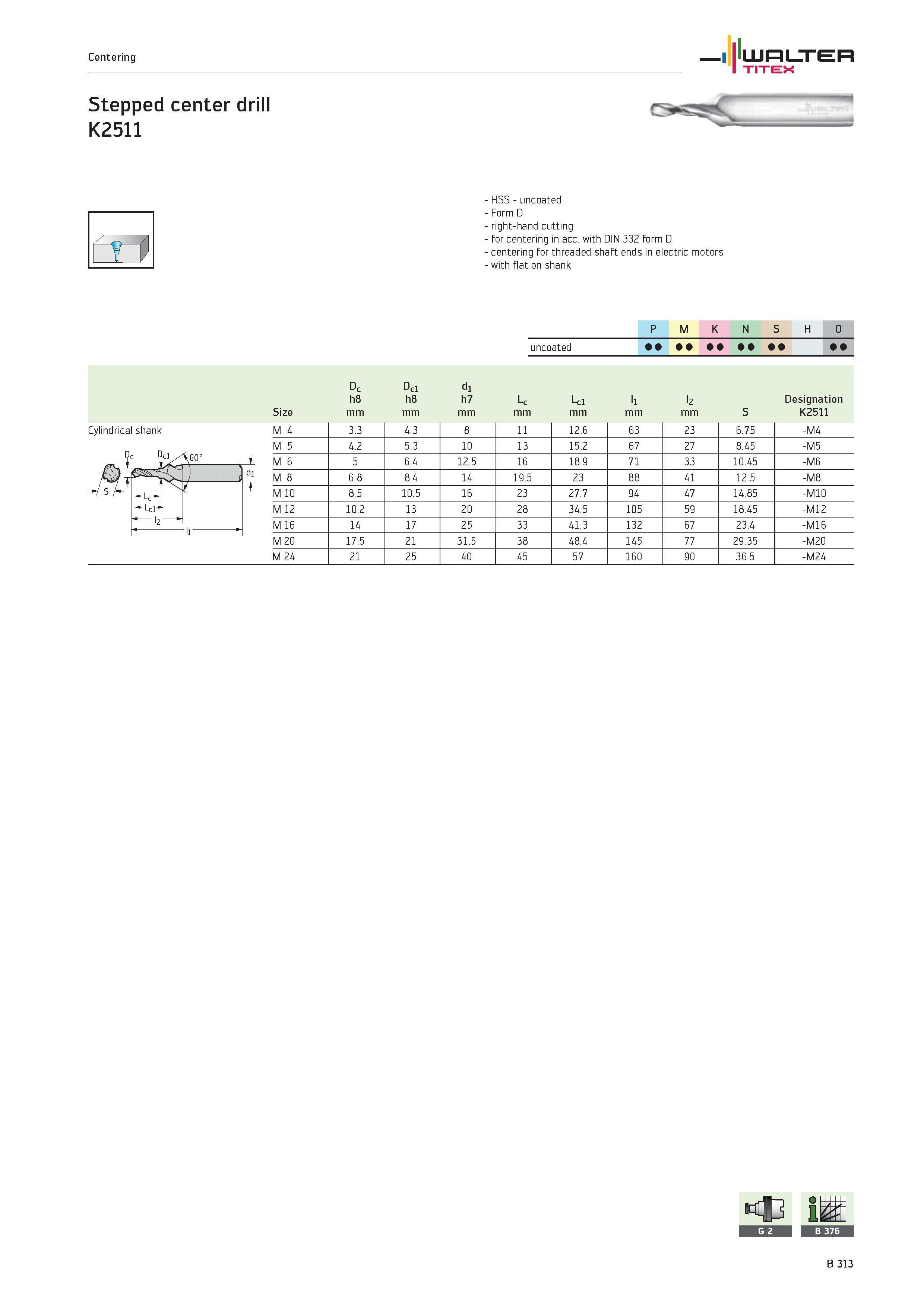

Centering WALTER TITEX Stepped center drill K2511 Cylindrical shank h- Lci ll HSS uncoated Form D right-hand cutting for centering in acc. with DIN 332 form D centering for threaded shaft ends in electric motors with flat on shank 1 P M K N S H O uncoated 1 Dc Del di h8 h8 h7 Lc Lci ll l2 Designation Size mm S K2511 M 4 3.3 4.3 8 11 12.6 63 23 6.75 -M4 M 5 4.2 5.3 10 13 15.2 67 27 8.45 -M5 M 6 5 6.4 12.5 16 18.9 71 33 10.45 -M6 M 8 6.8 8.4 14 19.5 23 88 41 12.5 -M8 M 10 8.5 10.5 16 23 27.7 94 47 14.85 -M10 M 12 10.2 13 20 28 34.5 105 59 18.45 -M12 M 16 14 17 25 33 41.3 132 67 23.4 -M16 M 20 17.5 21 31.5 38 48.4 145 77 29.35 -M20 M 24 21 25 40 45 57 160 90 36.5 -M24 B 313
