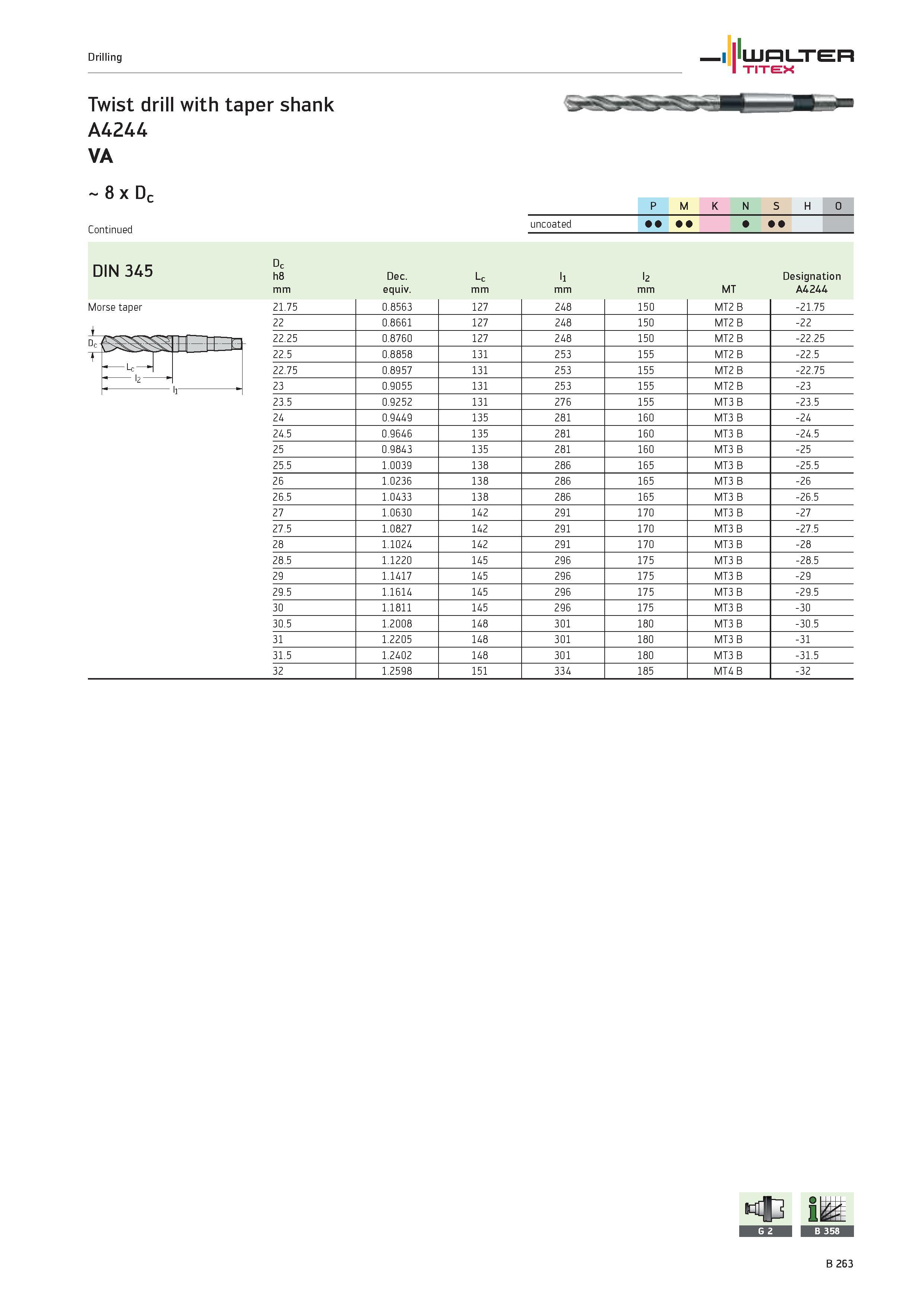

Drilling Twist drill with taper shank A4244 VA 8 x Dc I I'LURLJrEH TITEX P M K N S H O uncoated l DIN 345 Morse taper B5H3 ii h8 Dec. Lc ll l2 Designation mm equiv. mm MT A4244 21.75 0.8563 127 248 150 MT2 B -21.75 22 0.8661 127 248 150 MT2 B -22 22.25 0.8760 127 248 150 MT2 B -22.25 22.5 0.8858 131 253 155 MT2 B -22.5 22.75 0.8957 131 253 155 MT2 B -22.75 23 0.9055 131 253 155 MT2 B -23 23.5 0.9252 131 276 155 MT3 B -23.5 24 0.9449 135 281 160 MT3 B -24 24.5 0.9646 135 281 160 MT3 B -24.5 25 0.9843 135 281 160 MT3 B -25 25.5 1.0039 138 286 165 MT3 B -25.5 26 1.0236 138 286 165 MT3 B -26 26.5 1.0433 138 286 165 MT3 B -26.5 27 1.0630 142 291 170 MT3 B -27 27.5 1.0827 142 291 170 MT3 B -27.5 28 1.1024 142 291 170 MT3 B -28 28.5 1.1220 145 296 175 MT3 B -28.5 29 1.1417 145 296 175 MT3 B -29 29.5 1.1614 145 296 175 MT3 B -29.5 30 1.1811 145 296 175 MT3 B -30 30.5 1.2008 148 301 180 MT3 B -30.5 31 1.2205 148 301 180 MT3 B -31 31.5 1.2402 148 301 180 MT3 B -31.5 32 1.2598 151 334 185 MT4 B -32 D c
