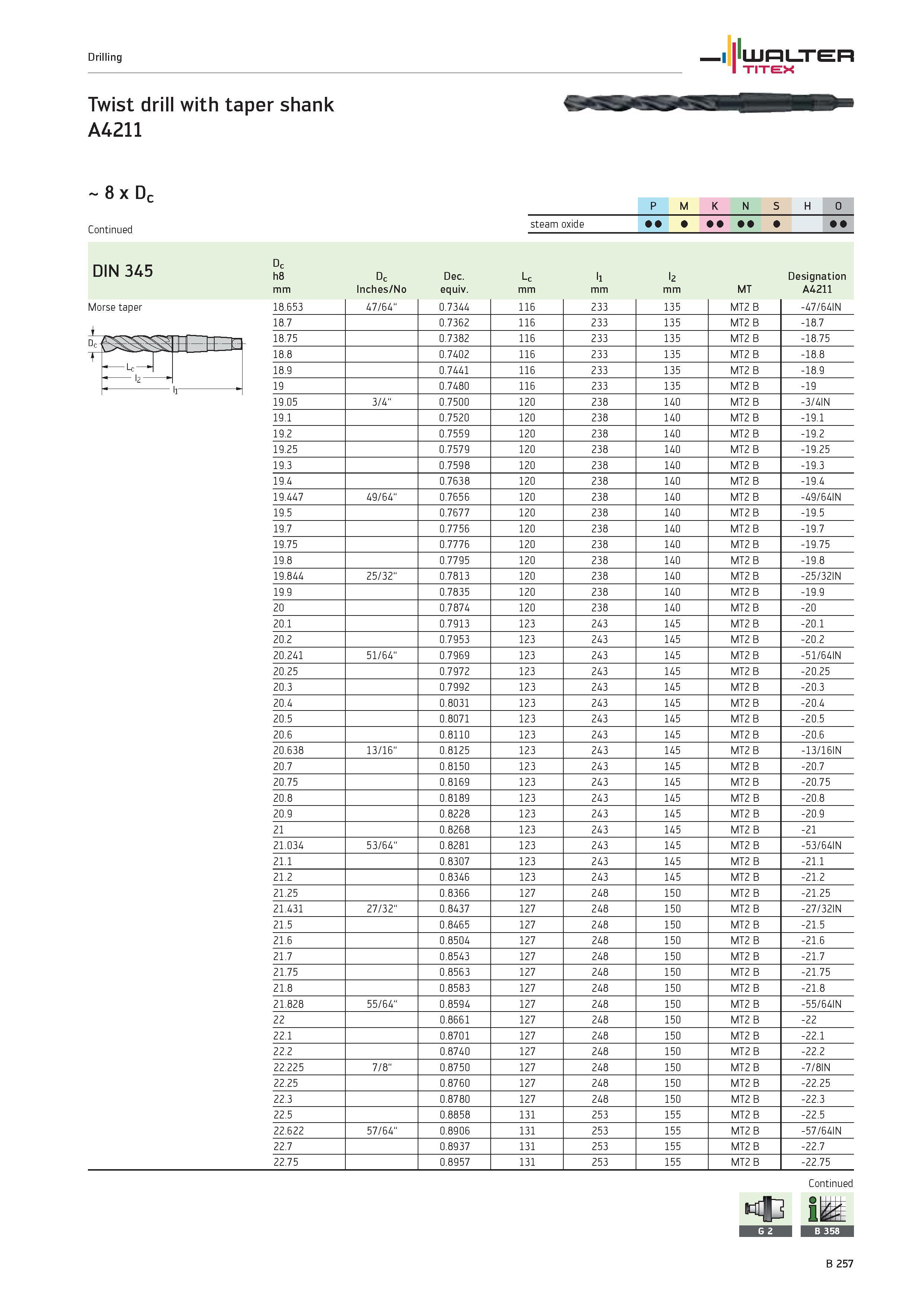

Drilling Twist drill with taper shank A4211 WALTER TITEX 8 x Dc P M K N S H O steam oxide DIN 345 Morse taper B5H3 ii h8 Dc Dec. Lc ll l2 Designation mm Inches/No equiv. mm MT A4211 18.653 47/64" 0.7344 116 233 135 MT2 B -47/64IN 18.7 0.7362 116 233 135 MT2 B -18.7 18.75 0.7382 116 233 135 MT2 B -18.75 18.8 0.7402 116 233 135 MT2 B -18.8 18.9 0.7441 116 233 135 MT2 B -18.9 19 0.7480 116 233 135 MT2 B -19 19.05 3/4" 0.7500 120 238 140 MT2 B -3/4IN 19.1 0.7520 120 238 140 MT2 B -19.1 19.2 0.7559 120 238 140 MT2 B -19.2 19.25 0.7579 120 238 140 MT2 B -19.25 19.3 0.7598 120 238 140 MT2 B -19.3 19.4 0.7638 120 238 140 MT2 B -19.4 19.447 49/64" 0.7656 120 238 140 MT2 B -49/64IN 19.5 0.7677 120 238 140 MT2 B -19.5 19.7 0.7756 120 238 140 MT2 B -19.7 19.75 0.7776 120 238 140 MT2 B -19.75 19.8 0.7795 120 238 140 MT2 B -19.8 19.844 25/32" 0.7813 120 238 140 MT2 B -25/32IN 19.9 0.7835 120 238 140 MT2 B -19.9 20 0.7874 120 238 140 MT2 B -20 20.1 0.7913 123 243 145 MT2 B -20.1 20.2 0.7953 123 243 145 MT2 B -20.2 20.241 51/64" 0.7969 123 243 145 MT2 B -51/64IN 20.25 0.7972 123 243 145 MT2 B -20.25 20.3 0.7992 123 243 145 MT2 B -20.3 20.4 0.8031 123 243 145 MT2 B -20.4 20.5 0.8071 123 243 145 MT2 B -20.5 20.6 0.8110 123 243 145 MT2 B -20.6 20.638 13/16" 0.8125 123 243 145 MT2 B -13/16IN 20.7 0.8150 123 243 145 MT2 B -20.7 20.75 0.8169 123 243 145 MT2 B -20.75 20.8 0.8189 123 243 145 MT2 B -20.8 20.9 0.8228 123 243 145 MT2 B -20.9 21 0.8268 123 243 145 MT2 B -21 21.034 53/64" 0.8281 123 243 145 MT2 B -53/64IN 21.1 0.8307 123 243 145 MT2 B -21.1 21.2 0.8346 123 243 145 MT2 B -21.2 21.25 0.8366 127 248 150 MT2 B -21.25 21.431 27/32" 0.8437 127 248 150 MT2 B -27/32IN 21.5 0.8465 127 248 150 MT2 B -21.5 21.6 0.8504 127 248 150 MT2 B -21.6 21.7 0.8543 127 248 150 MT2 B -21.7 21.75 0.8563 127 248 150 MT2 B -21.75 21.8 0.8583 127 248 150 MT2 B -21.8 21.828 55/64" 0.8594 127 248 150 MT2 B -55/64IN 22 0.8661 127 248 150 MT2 B -22 22.1 0.8701 127 248 150 MT2 B -22.1 22.2 0.8740 127 248 150 MT2 B -22.2 22.225 7/8" 0.8750 127 248 150 MT2 B -7/8IN 22.25 0.8760 127 248 150 MT2 B -22.25 22.3 0.8780 127 248 150 MT2 B -22.3 22.5 0.8858 131 253 155 MT2 B -22.5 22.622 57/64" 0.8906 131 253 155 MT2 B -57/64IN 22.7 0.8937 131 253 155 MT2 B -22.7 22.75 0.8957 131 253 155 MT2 B -22.75 O b n D c B 257
