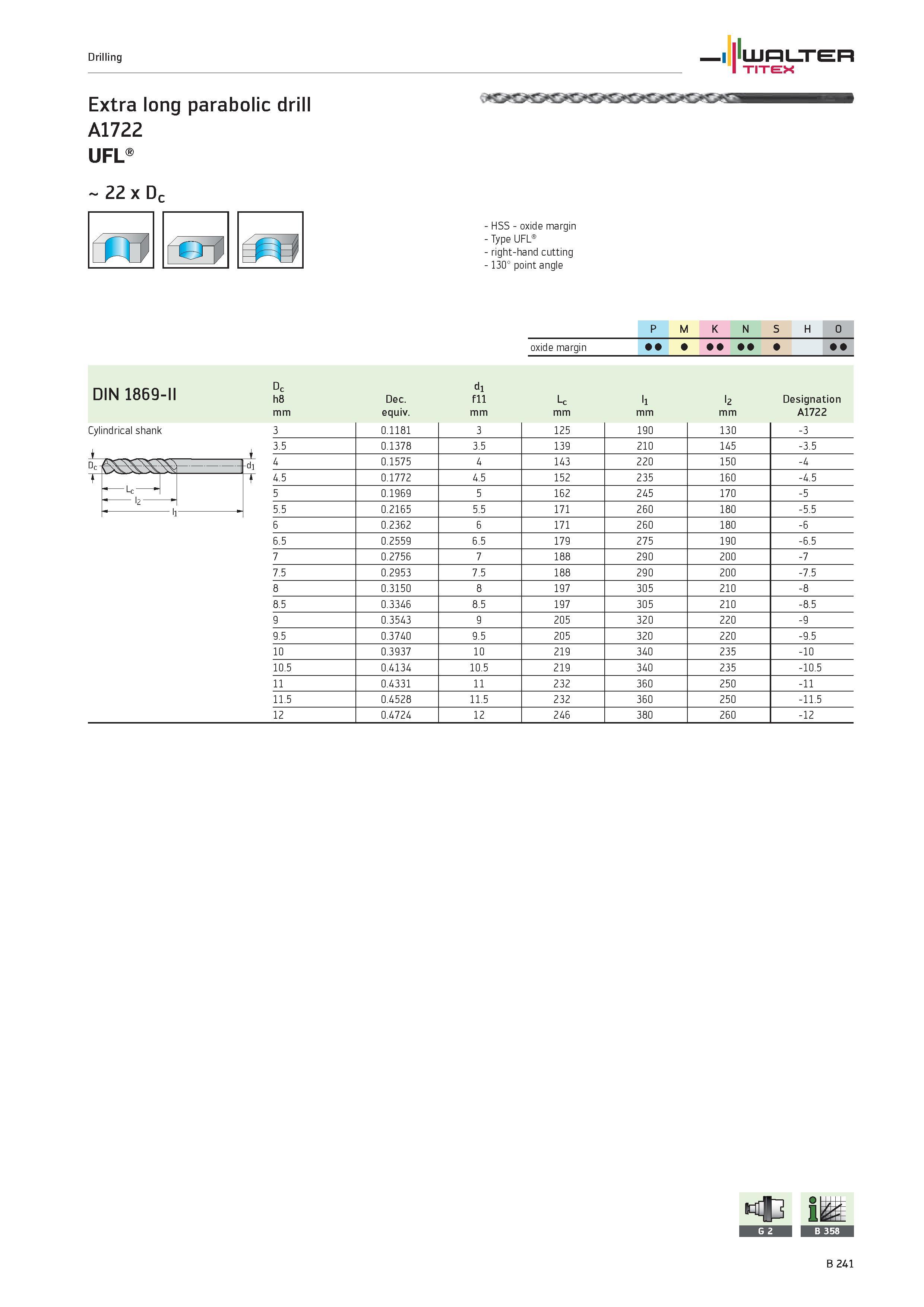

Drilling WALTER TITEX Extra long parabolic drill A1722 UFL 22 x Dc rT0 re HSS oxide margin Type UFL right-hand cutting 130° point angle P M K N S H O oxide margin DIN 1869 -II Dc h8 mm Dec. equiv. di f11 mm Lc mm l1 mm l2 mm Designation A1722 Cylindrical shank 3 0.1181 3 125 190 130 -3 3.5 0.1378 3.5 139 210 145 -3.5 4 0.1575 4 143 220 150 -4 Dr- di 1 4.5 0.1772 4.5 152 235 160 -4.5 Lc 5 0.1969 5 162 245 170 -5 ll 5.5 0.2165 5.5 171 260 180 -5.5 6 0.2362 6 171 260 180 -6 6.5 0.2559 6.5 179 275 190 -6.5 7 0.2756 7 188 290 200 -7 7.5 0.2953 7.5 188 290 200 -7.5 8 0.3150 8 197 305 210 -8 8.5 0.3346 8.5 197 305 210 -8.5 9 0.3543 9 205 320 220 -9 9.5 0.3740 9.5 205 320 220 -9.5 10 0.3937 10 9 21 340 235 -10 10.5 0.4134 10.5 219 340 235 -10.5 11 0.4331 11 232 360 250 -11 11.5 0.4528 11.5 232 360 250 -11.5 12 0.4724 12 246 380 260 -12
