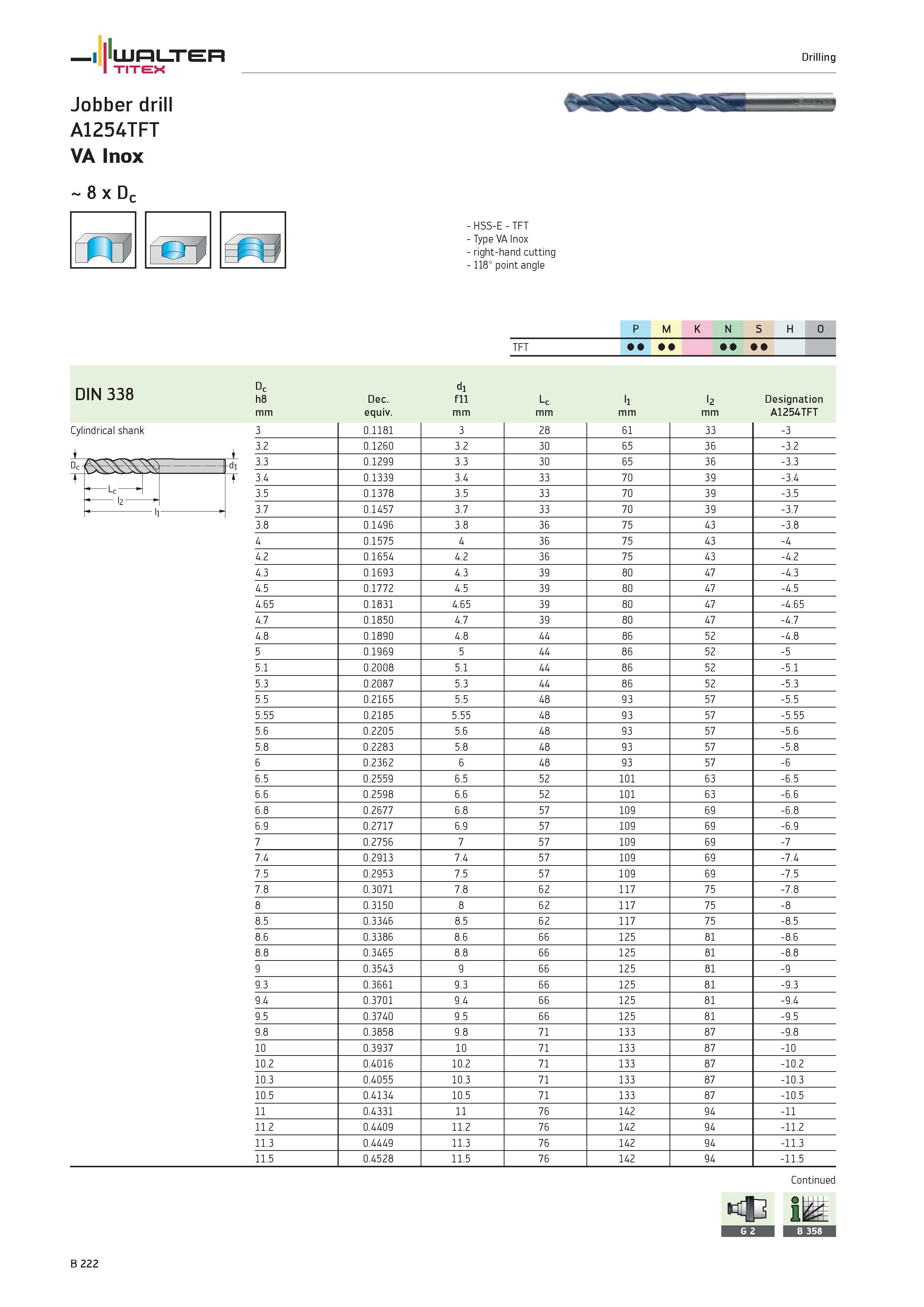

WALTER TITEX Drilling Jobber drill A1254TFT VA Inox 8 x Dc re HSS-E TFT Type VA Inox right-hand cutting 118° point angle 1 P M K N S H O TFT 1 Cylindrical shank DIN 338 Dc h8 Dec. di f11 Lc li l2 Designation mm equiv. mm A1254TFT 3 0.1181 3 28 61 33 -3 3.2 0.1260 3.2 30 65 36 -3.2 3.3 0.1299 3.3 30 65 36 -3.3 3.4 0.1339 3.4 33 70 39 -3.4 3.5 0.1378 3.5 33 70 39 -3.5 3.7 0.1457 3.7 33 70 39 -3.7 3.8 0.1496 3.8 36 75 43 -3.8 4 0.1575 4 36 75 43 -4 4.2 0.1654 4.2 36 75 43 -4.2 4.3 0.1693 4.3 39 80 47 -4.3 4.5 0.1772 4.5 39 80 47 -4.5 4.65 0.1831 4.65 39 80 47 -4.65 4.7 0.1850 4.7 39 80 47 -4.7 4.8 0.1890 4.8 44 86 52 -4.8 5 0.1969 5 44 86 52 -5 5.1 0.2008 5.1 44 86 52 -5.1 5.3 0.2087 5.3 44 86 52 -5.3 5.5 0.2165 5.5 48 93 57 -5.5 5.55 0.2185 5.55 48 93 57 -5.55 5.6 0.2205 5.6 48 93 57 -5.6 5.8 0.2283 5.8 48 93 57 -5.8 6 0.2362 6 48 93 57 -6 6.5 0.2559 6.5 52 101 63 -6.5 6.6 0.2598 6.6 52 101 63 -6.6 6.8 0.2677 6.8 57 109 69 -6.8 6.9 0.2717 6.9 57 109 69 -6.9 7 0.2756 7 57 109 69 -7 7.4 0.2913 7.4 57 109 69 -7.4 7.5 0.2953 7.5 57 109 69 -7.5 7.8 0.3071 7.8 62 117 75 -7.8 8 0.3150 8 62 117 75 -8 8.5 0.3346 8.5 62 117 75 -8.5 8.6 0.3386 8.6 66 125 81 -8.6 8.8 0.3465 8.8 66 125 81 -8.8 9 0.3543 9 66 125 81 -9 9.3 0.3661 9.3 66 125 81 -9.3 9.4 0.3701 9.4 66 125 81 -9.4 9.5 0.3740 9.5 66 125 81 -9.5 9.8 0.3858 9.8 71 133 87 -9.8 10 0.3937 10 71 133 87 -10 10.2 0.4016 10.2 71 133 87 -10.2 10.3 0.4055 10.3 71 133 87 -10.3 10.5 0.4134 10.5 71 133 87 -10.5 11 0.4331 11 76 142 94 -11 11.2 0.4409 11.2 76 142 94 -11.2 11.3 0.4449 11.3 76 142 94 -11.3 11.5 0.4528 11.5 76 142 94 -11.5 CM Lc B 222
