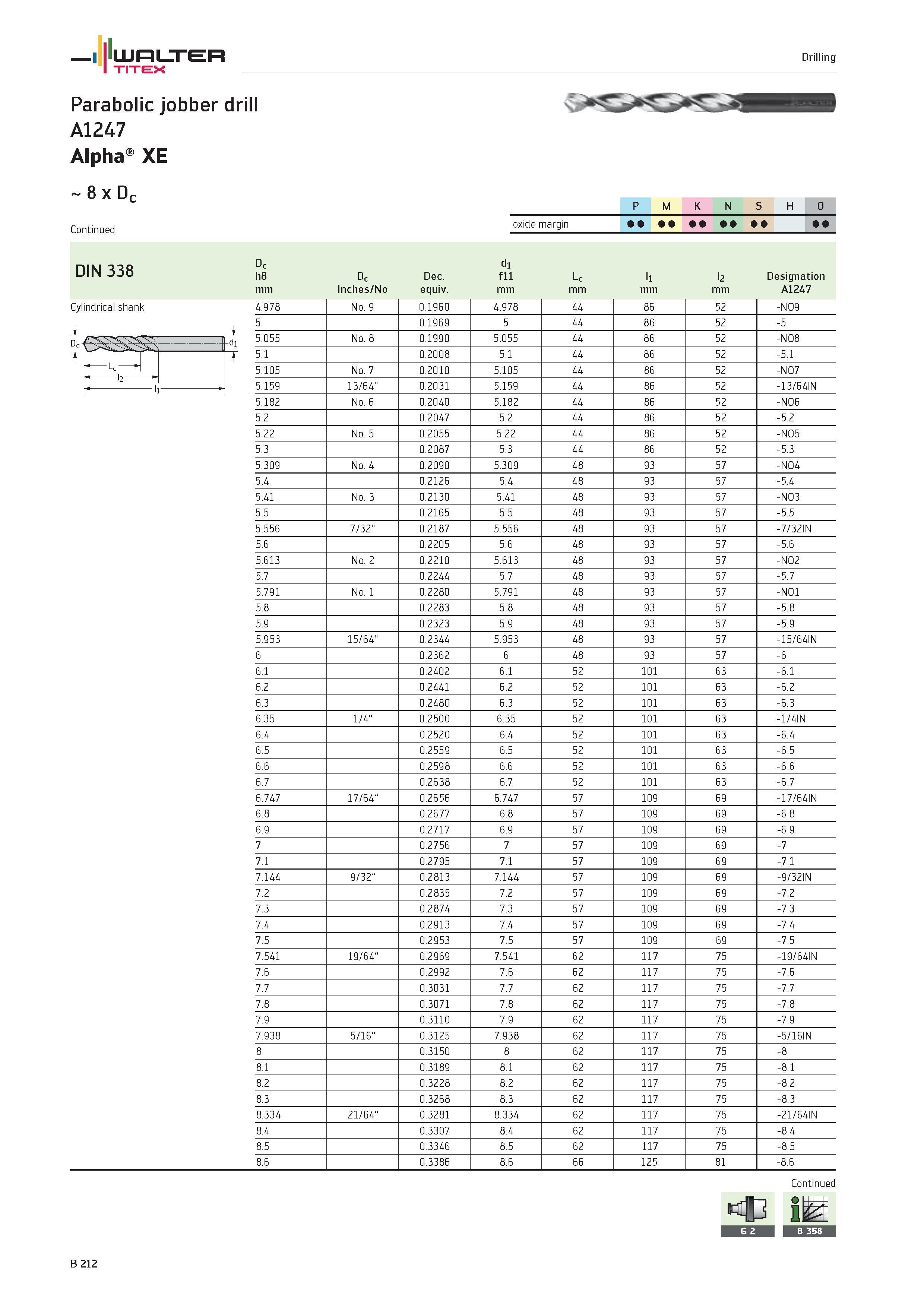

WALTER TITEX Parabolic jobber drill A1247 Alpha XE 8 x Dc Cylindrical shank Lc" Drilling P M K N S H O oxide margin I DIN 338 Dc h8 Dc Dec. d1 f11 Lc l1 l2 Designation mm Inches/No equiv. mm A1247 4.978 No. 9 0.1960 4.978 44 86 52 -NO9 5 0.1969 5 44 86 52 -5 5.055 No. 8 0.1990 5.055 44 86 52 -NO8 5.1 0.2008 5.1 44 86 52 -5.1 5.105 No. 7 0.2010 5.105 44 86 52 -NO7 5.159 13/64" 0.2031 5.159 44 86 52 -13/64IN 5.182 No. 6 0.2040 5.182 44 86 52 -NO6 5.2 0.2047 5.2 44 86 52 -5.2 5.22 No. 5 0.2055 5.22 44 86 52 -NO5 5.3 0.2087 5.3 44 86 52 -5.3 5.309 No. 4 0.2090 5.309 48 93 57 -NO4 5.4 0.2126 5.4 48 93 57 -5.4 5.41 No. 3 0.2130 5.41 48 93 57 -NO3 5.5 0.2165 5.5 48 93 57 -5.5 5.556 7/32" 0.2187 5.556 48 93 57 -7/32IN 5.6 0.2205 5.6 48 93 57 -5.6 5.613 No. 2 0.2210 5.613 48 93 57 -NO2 5.7 0.2244 5.7 48 93 57 -5.7 5.791 No. 1 0.2280 5.791 48 93 57 -NO1 5.8 0.2283 5.8 48 93 57 -5.8 5.9 0.2323 5.9 48 93 57 -5.9 5.953 15/64" 0.2344 5.953 48 93 57 -15/64IN 6 0.2362 6 48 93 57 -6 6.1 0.2402 6.1 52 101 63 -6.1 6.2 0.2441 6.2 52 101 63 -6.2 6.3 0.2480 6.3 52 101 63 -6.3 6.35 1/4" 0.2500 6.35 52 101 63 -1/4IN 6.4 0.2520 6.4 52 101 63 -6.4 6.5 0.2559 6.5 52 101 63 -6.5 6.6 0.2598 6.6 52 101 63 -6.6 6.7 0.2638 6.7 52 101 63 -6.7 6.747 17/64" 0.2656 6.747 57 109 69 -17/64IN 6.8 0.2677 6.8 57 109 69 -6.8 6.9 0.2717 6.9 57 109 69 -6.9 7 0.2756 7 57 109 69 -7 7.1 0.2795 7.1 57 109 69 -7.1 7.144 9/32" 0.2813 7.144 57 109 69 -9/32IN 7.2 0.2835 7.2 57 109 69 -7.2 7.3 0.2874 7.3 57 109 69 -7.3 7.4 0.2913 7.4 57 109 69 -7.4 7.5 0.2953 7.5 57 109 69 -7.5 7.541 19/64" 0.2969 7.541 62 117 75 -19/64IN 7.6 0.2992 7.6 62 117 75 -7.6 7.7 0.3031 7.7 62 117 75 -7.7 7.8 0.3071 7.8 62 117 75 -7.8 7.9 0.3110 7.9 62 117 75 -7.9 7.938 5/16" 0.3125 7.938 62 117 75 -5/16IN 8 0.3150 8 62 117 75 -8 8.1 0.3189 8.1 62 117 75 -8.1 8.2 0.3228 8.2 62 117 75 -8.2 8.3 0.3268 8.3 62 117 75 -8.3 8.334 21/64" 0.3281 8.334 62 117 75 -21/64IN 8.4 0.3307 8.4 62 117 75 -8.4 8.5 0.3346 8.5 62 117 75 -8.5 8.6 0.3386 8.6 66 125 81 -8.6 O \-fl B 212
