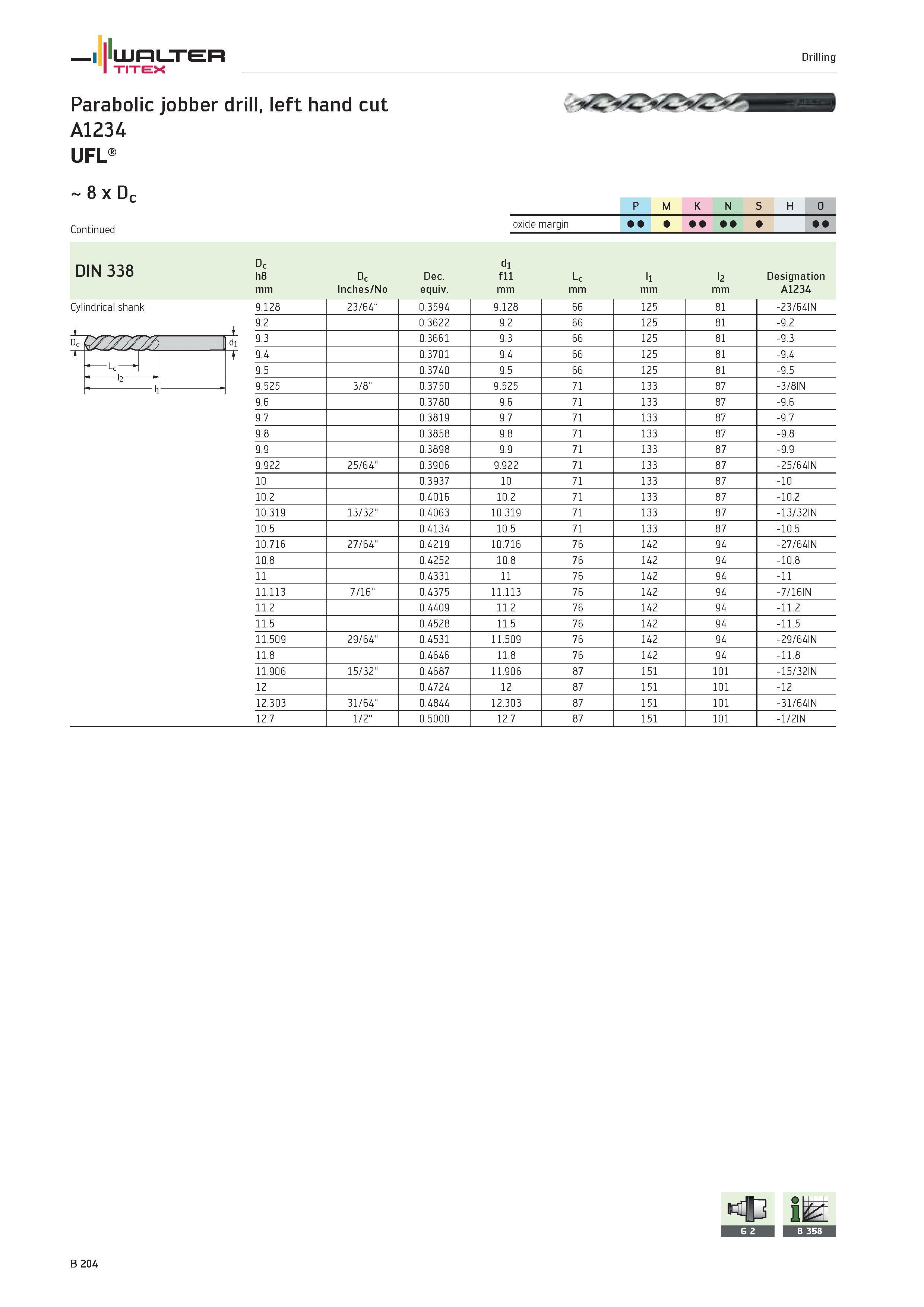

WALTER TITEX Drilling Parabolic jobber drill, left hand cut A1234 UFL 8 x Dc P M K N S H O oxide margin 1 1 DIN 338 Dc h8 mm Dc Inches/No Dec. equiv. d1 f11 mm Lc mm l1 mm l2 mm Designation A1234 Cylindrical shank i 9.128 23/64" 0.3594 9.128 66 125 81 -23/64IN 9.2 0.3622 9.2 66 125 81 -9.2 9.3 0.3661 9.3 66 125 81 -9.3 IV d + t 9.4 0.3701 9.4 66 125 81 -9.4 Lc n 9.5 0.3740 9.5 66 125 81 -9.5 l 9.525 3/8" 0.3750 9.525 71 133 87 -3/8IN 9.6 0.3780 9.6 71 133 87 -9.6 9.7 0.3819 9.7 71 133 87 -9.7 9.8 0.3858 9.8 71 133 87 -9.8 9.9 0.3898 9.9 71 133 87 -9.9 9.922 25/64" 0.3906 9.922 71 133 87 -25/64IN 10 0.3937 10 71 133 87 -10 10.2 0.4016 10.2 71 133 87 -10.2 10.319 13/32" 0.4063 10.319 71 133 87 -13/32IN 10.5 0.4134 10.5 71 133 87 -10.5 10.716 27/64" 0.4219 10.716 76 142 94 -27/64IN 10.8 0.4252 10.8 76 142 94 -10.8 11 0.4331 11 76 142 94 -11 11.113 7/16" 0.4375 11.113 76 142 94 -7/16IN 11.2 0.4409 11.2 76 142 94 -11.2 11.5 0.4528 11.5 76 142 94 -11.5 11.509 29/64" 0.4531 11.509 76 142 94 -29/64IN 11.8 0.4646 11.8 76 142 94 -11.8 11.906 15/32" 0.4687 11.906 87 151 101 -15/32IN 12 0.4724 12 87 151 101 -12 12.303 31/64" 0.4844 12.303 87 151 101 -31/64IN 12.7 1/2" 0.5000 12.7 87 151 101 -1/2IN B 204
