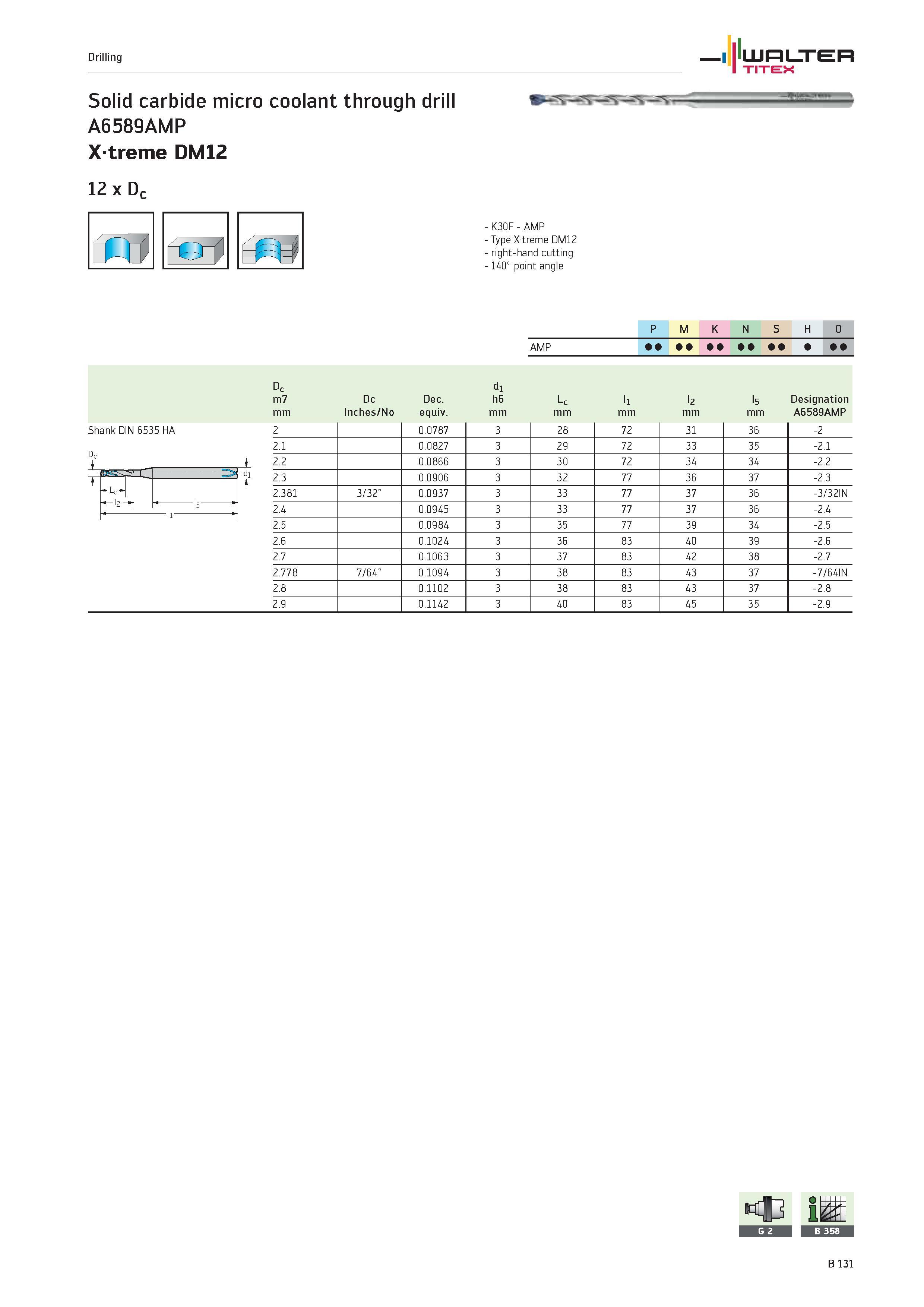

Drilling WALTER TITEX Solid carbide micro coolant through drill A6589AMP X-treme DM12 K30F AMP Type Xtreme DM12 right-hand cutting 140° point angle P M K N S H O Dc m7 mm Dc Inches/No Dec. equiv. 16 m dhm Lc mm l1 mm l2 mm l5 mm Designation A6589AMP Shank DIN 6535 HA Dc 1 2 0.0787 3 28 72 31 36 -2 2.1 0.0827 3 29 72 33 35 -2.1 2.2 0.0866 3 30 72 34 34 -2.2 t W 2 ri =3 Mi 2.3 0.0906 3 32 77 36 37 -2.3 -L 2.381 3/32" 0.0937 3 33 77 37 36 -3/32IN 12 r l5 li 2.4 0.0945 3 33 77 37 36 -2.4 2.5 0.0984 3 35 77 39 34 -2.5 2.6 0.1024 3 36 83 40 39 -2.6 2.7 0.1063 3 37 83 42 38 -2.7 2.778 7/64" 0.1094 3 38 83 43 37 -7/64IN 2.8 0.1102 3 38 83 43 37 -2.8 2.9 0.1142 3 40 83 45 35 -2.9 B 131 12 x Dc ere I
