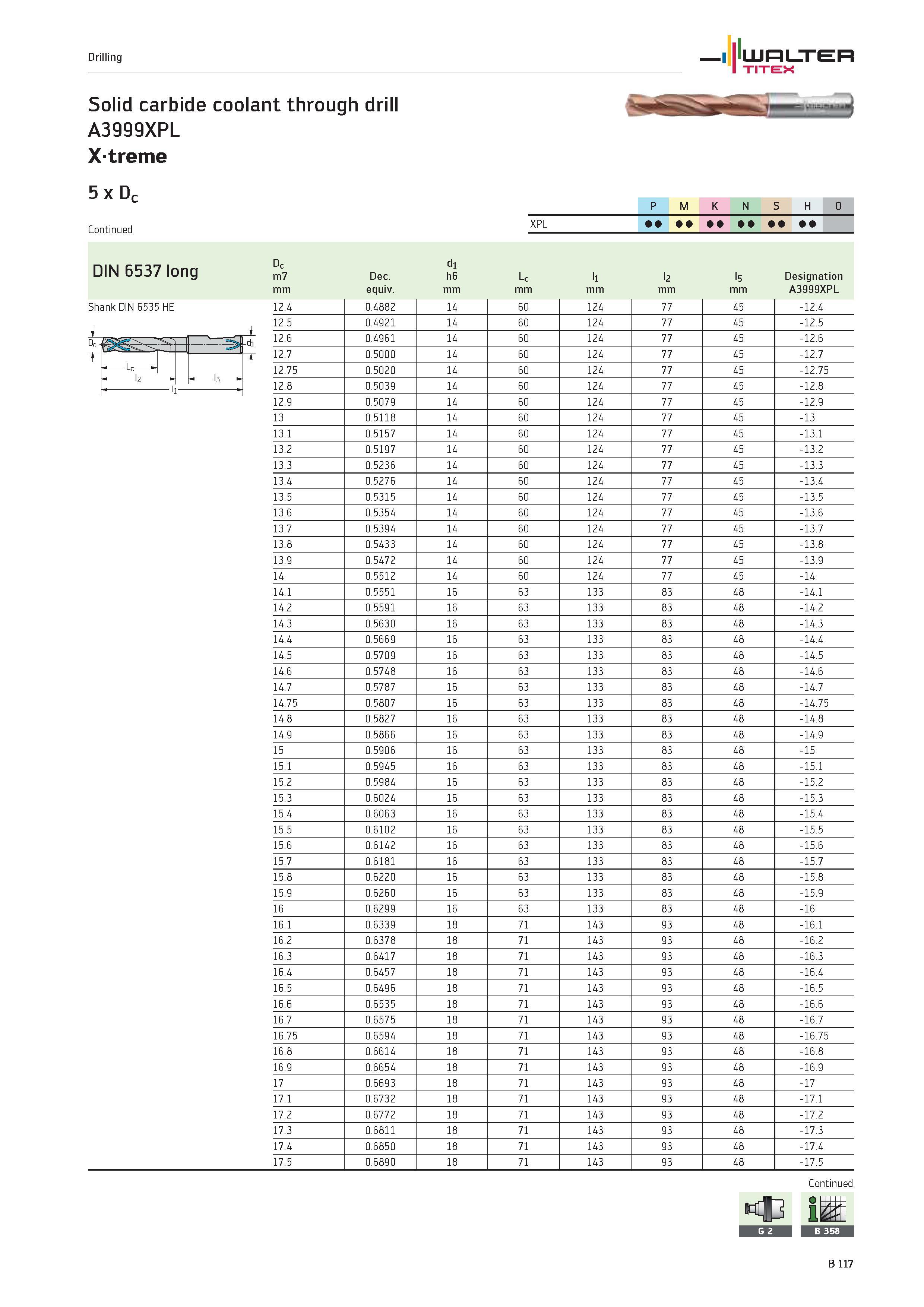

Drilling WALTER TITEX Solid carbide coolant through drill A3999XPL X-treme 5 x Dc P M K N S H O DIN 6537 long 7 mm Dec. equiv. d1 h6 mm Lc mm l1 mm l2 mm l5 mm Designation A3999XPL Shank DIN 6535 HE 12.4 0.4882 14 60 124 77 45 -12.4 12.5 0.4921 14 60 124 77 45 -12.5 T n- CTdT 12.6 0.4961 14 60 124 77 45 -12.6 2. f 0.5000 14 60 124 77 45 -12.7 L- 12.75 0.5020 14 60 124 77 45 -12.75 l 5 r 12.8 0.5039 14 60 124 77 45 -12.8 12.9 0.5079 14 60 124 77 45 -12.9 13 0.5118 14 60 124 77 45 -13 13.1 0.5157 14 60 124 77 45 -13.1 13.2 0.5197 14 60 124 77 45 -13.2 13.3 0.5236 14 60 124 77 45 -13.3 13.4 0.5276 14 60 124 77 45 -13.4 13.5 0.5315 14 60 124 77 45 -13.5 13.6 0.5354 14 60 124 77 45 -13.6 13.7 0.5394 14 60 124 77 45 -13.7 13.8 0.5433 14 60 124 77 45 -13.8 13.9 0.5472 14 60 124 77 45 -13.9 14 0.5512 14 60 124 77 45 -14 14.1 0.5551 16 63 133 83 48 -14.1 14.2 0.5591 16 63 133 83 48 -14.2 14.3 0.5630 16 63 133 83 48 -14.3 14.4 0.5669 16 63 133 83 48 -14.4 14.5 0.5709 16 63 133 83 48 -14.5 14.6 0.5748 16 63 133 83 48 -14.6 14.7 0.5787 16 63 133 83 48 -14.7 14.75 0.5807 16 63 133 83 48 -14.75 14.8 0.5827 16 63 133 83 48 -14.8 14.9 0.5866 16 63 133 83 48 -14.9 15 0.5906 16 63 133 83 48 -15 15.1 0.5945 16 63 133 83 48 -15.1 15.2 0.5984 16 63 133 83 48 -15.2 15.3 0.6024 16 63 133 83 48 -15.3 15.4 0.6063 16 63 133 83 48 -15.4 15.5 0.6102 16 63 133 83 48 -15.5 15.6 0.6142 16 63 133 83 48 -15.6 15.7 0.6181 16 63 133 83 48 -15.7 15.8 0.6220 16 63 133 83 48 -15.8 15.9 0.6260 16 63 133 83 48 -15.9 16 0.6299 16 63 133 83 48 -16 16.1 0.6339 18 71 143 93 48 -16.1 16.2 0.6378 18 71 143 93 48 -16.2 16.3 0.6417 18 71 143 93 48 -16.3 16.4 0.6457 18 71 143 93 48 -16.4 16.5 0.6496 18 71 143 93 48 -16.5 16.6 0.6535 18 71 143 93 48 -16.6 16.7 0.6575 18 71 143 93 48 -16.7 16.75 0.6594 18 71 143 93 48 -16.75 16.8 0.6614 18 71 143 93 48 -16.8 16.9 0.6654 18 71 143 93 48 -16.9 17 0.6693 18 71 143 93 48 -17 17.1 0.6732 18 71 143 93 48 -17.1 17.2 0.6772 18 71 143 93 48 -17.2 17.3 0.6811 18 71 143 93 48 -17.3 17.4 0.6850 18 71 143 93 48 -17.4 17.5 0.6890 18 71 143 93 48 -17.5 B 117
