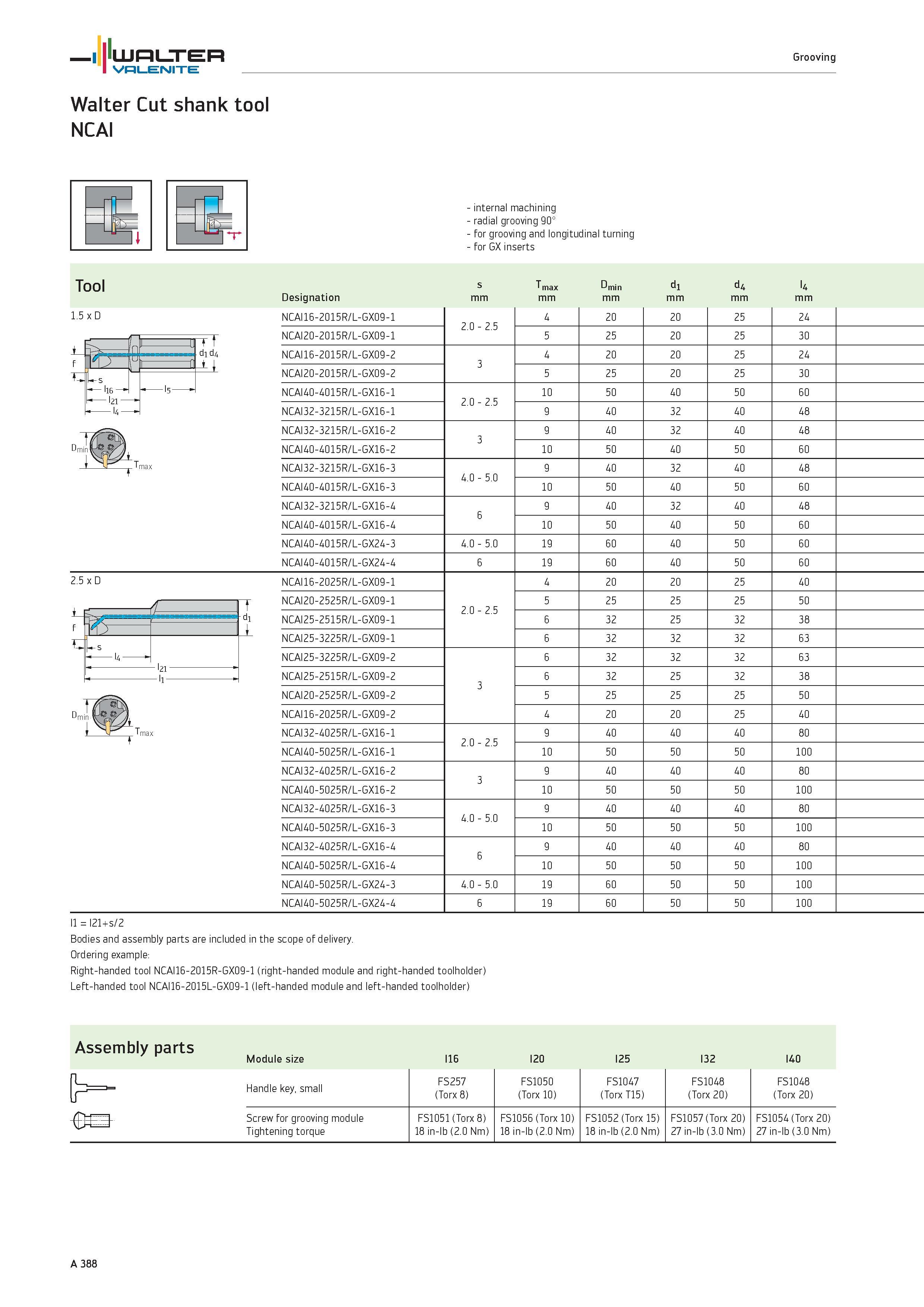

WALTER Valenite Grooving Walter Cut shank tool NCAI P internal machining radial grooving 90° for grooving and longitudinal turning for GX inserts Tool 1.5 x D Designation s mm 1 max mm '-'min mm di mm d4 mm l4 mm NCAI16-2015R/L-GX09-1 2.0 2.5 4 20 20 25 24 NCAI20-2015R/L-GX09-1 5 25 20 25 30 NCAI16-2015R/L-GX09-2 3 4 20 20 25 24 NCAI20-2015R/L-GX09-2 5 25 20 25 30 NCAI40-4015R/L-GX16-1 2.0 2.5 10 50 40 50 60 NCAI32-3215R/L-GX16-1 9 40 32 40 48 NCAI32-3215R/L-GX16-2 3 9 40 32 40 48 NCAI40-4015R/L-GX16-2 10 50 40 50 60 NCAI32-3215R/L-GX16-3 4.0 5.0 9 40 32 40 48 NCAI40-4015R/L-GX16-3 10 50 40 50 60 NCAI32-3215R/L-GX16-4 6 9 40 32 40 48 NCAI40-4015R/L-GX16-4 10 50 40 50 60 NCAI40-4015R/L-GX24-3 4.0 5.0 19 60 40 50 60 NCAI40-4015R/L-GX24-4 6 19 60 40 50 60 NCAI16-2025R/L-GX09-1 2.0 2.5 4 20 20 25 40 NCAI20-2525R/L-GX09-1 5 25 25 25 50 NCAI25-2515R/L-GX09-1 6 32 25 32 38 NCAI25-3225R/L-GX09-1 6 32 32 32 63 NCAI25-3225R/L-GX09-2 3 6 32 32 32 63 NCAI25-2515R/L-GX09-2 6 32 25 32 38 NCAI20-2525R/L-GX09-2 5 25 25 25 50 NCAI16-2025R/L-GX09-2 4 20 20 25 40 NCAI32-4025R/L-GX16-1 2.0 2.5 9 40 40 40 80 NCAI40-5025R/L-GX16-1 10 50 50 50 100 NCAI32-4025R/L-GX16-2 3 9 40 40 40 80 NCAI40-5025R/L-GX16-2 10 50 50 50 100 NCAI32-4025R/L-GX16-3 4.0 5.0 9 40 40 40 80 NCAI40-5025R/L-GX16-3 10 50 50 50 100 NCAI32-4025R/L-GX16-4 6 9 40 40 40 80 NCAI40-5025R/L-GX16-4 10 50 50 50 100 NCAI40-5025R/L-GX24-3 4.0 5.0 19 60 50 50 100 NCAI40-5025R/L-GX24-4 6 19 60 50 50 100 2.5 x D -l21- -l1- U Dmin l1 l21+s/2 Bodies and assembly parts are included in the scope of delivery. Ordering example Right-handed tool NCAI16-2015R-GX09-1 (right-handed module and right-handed toolholder) Left-handed tool NCAI16-2015L-GX09-1 (left-handed module and left-handed toolholder) Assembly parts Module size I16 I20 I25 I32 I40 IK Handle key, small FS257 (Torx 8) FS1050 (Torx 10) FS1047 (Torx T15) FS1048 (Torx 20) FS1048 (Torx 20) s- Screw for grooving module Tightening torque FS1051 (Torx 8) 18 in-lb (2.0 Nm) FS1056 (Torx 10) 18 in-lb (2.0 Nm) FS1052 (Torx 15) 18 in-lb (2.0 Nm) FS1057 (Torx 20) 27 in-lb (3.0 Nm) FS1054 (Torx 20) 27 in-lb (3.0 Nm) s T max A 388
