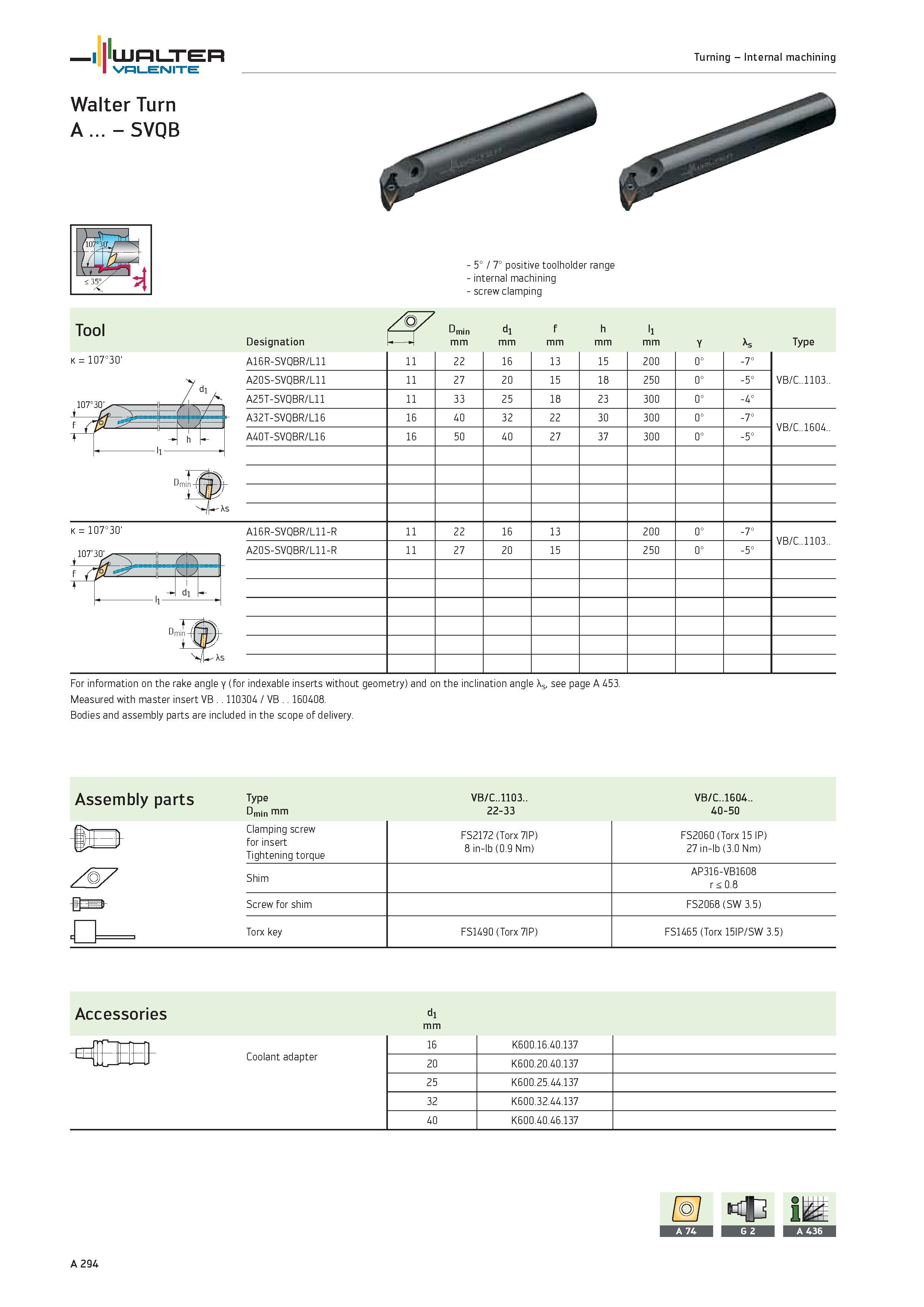

WALTER Valenite Turning Internal machining Walter Turn A SVQB k 107°30' 0 3 S’ J 4 1 5° / 7° positive toolholder range internal machining screw clamping Tool Dmin dl f h ll Designation mm Y As Type A16R-SVQBR/L11 11 22 16 13 15 200 0° -7° VB/C..1103.. A20S-SVQBR/L11 11 27 20 15 18 250 0° -5° A25T-SVQBR/L11 11 33 25 18 23 300 0° -4° A32T-SVQBR/L16 16 40 32 22 30 300 0° -7° VB/C..1604.. A40T-SVQBR/L16 16 50 40 27 37 300 0° -5° A16R-SVQBR/L11-R 11 22 16 13 200 0° -7° VB/C..1103.. A20S-SVQBR/L11-R 11 27 20 15 250 0° -5° k 107°30' 107°30’ Xs For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Measured with master insert VB 110304 / VB 160408. Bodies and assembly parts are included in the scope of delivery. u u Assembly parts Type VB/C..1103.. vb/c..i604.. Dmin mm 22-33 40-50 Accessories dl mm 16 K600.16.40.137 Coolant adapter 20 K600.20.40.137 25 K600.25.44.137 32 K600.32.44.137 40 K600.40.46.137 A 294
