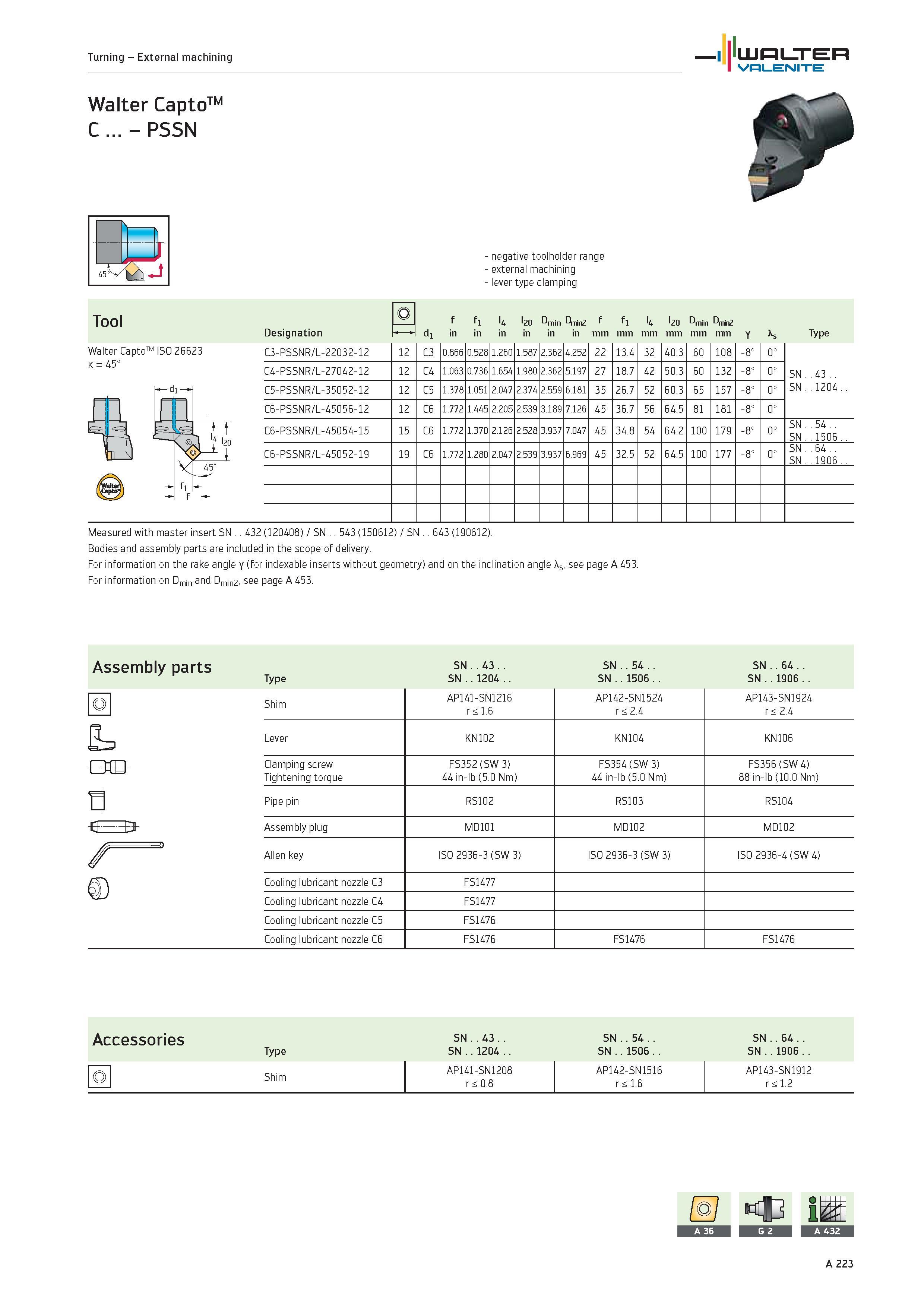

Turning External machining WALTER Valenite Walter CaptoTM C PSSN J Tool Walter CaptoTM ISO 26623 K 45° n v. Designation r "I di negative toolholder range external machining lever type clamping l4 l20 Dmin Dmin2 f f1 l4 l20 Dmin Dmin2 in mm Type C3-PSSNR/L-22032-12 12 C3 0.866 0.528 1.260 1.587 2.362 4.252 22 13.4 32 40.3 60 108 -8° 0° SN 43 SN .1204. C4-PSSNR/L-27042-12 12 C4 1.063 0.736 1.654 1.980 2.362 5.197 27 18.7 42 50.3 60 132 -8° 0° C5-PSSNR/L-35052-12 12 C5 1.378 1.051 2.047 2.374 2.559 6.181 35 26.7 52 60.3 65 157 -8° 0° C6-PSSNR/L-45056-12 12 C6 1.772 1.445 2.205 2.539 3.189 7.126 45 36.7 56 64.5 81 181 -8° 0° C6-PSSNR/L-45054-15 15 C6 1.772 1.370 2.126 2.528 3.937 7.047 45 34.8 54 64.2 100 179 -8° 0° SN .54.. SN .1506. C6-PSSNR/L-45052-19 19 C6 1.772 1.280 2.047 2.539 3.937 6.969 45 32.5 52 64.5 100 177 -8° 0° SN .64.. SN .1906. s f Measured with master insert SN 432 (120408) / SN 543 (150612) / SN 643 (190612). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. Assembly parts Type SN 43 SN 1204 SN 54 SN 1506 SN 64 SN 1906 Shim AP141-SN1216 r < 1.6 AP142-SN1524 r < 2.4 AP143-SN1924 r < 2.4 JL Lever KN102 KN104 KN106 RtfR- Clamping screw FS352 (SW 3) FS354 (SW 3) FS356 (SW 4) Tightening torque 44 in-lb (5.0 Nm) 44 in-lb (5.0 Nm) 88 in-lb (10.0 Nm) n Pipe pin RS102 RS103 RS104 +- =0- Assembly plug MD101 MD102 MD102 “ Allen key ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) Cooling lubricant nozzle C3 FS1477 SL Cooling lubricant nozzle C4 FS1477 Cooling lubricant nozzle C5 FS1476 Cooling lubricant nozzle C6 FS1476 FS1476 FS1476 Accessories SN 43 SN 54 SN 64 Type SN 1204 SN 1506 SN 1906 AP141-SN1208 AP142-SN1516 AP143-SN1912 Shim r < 0.8 r < 1.6 r < 1.2
