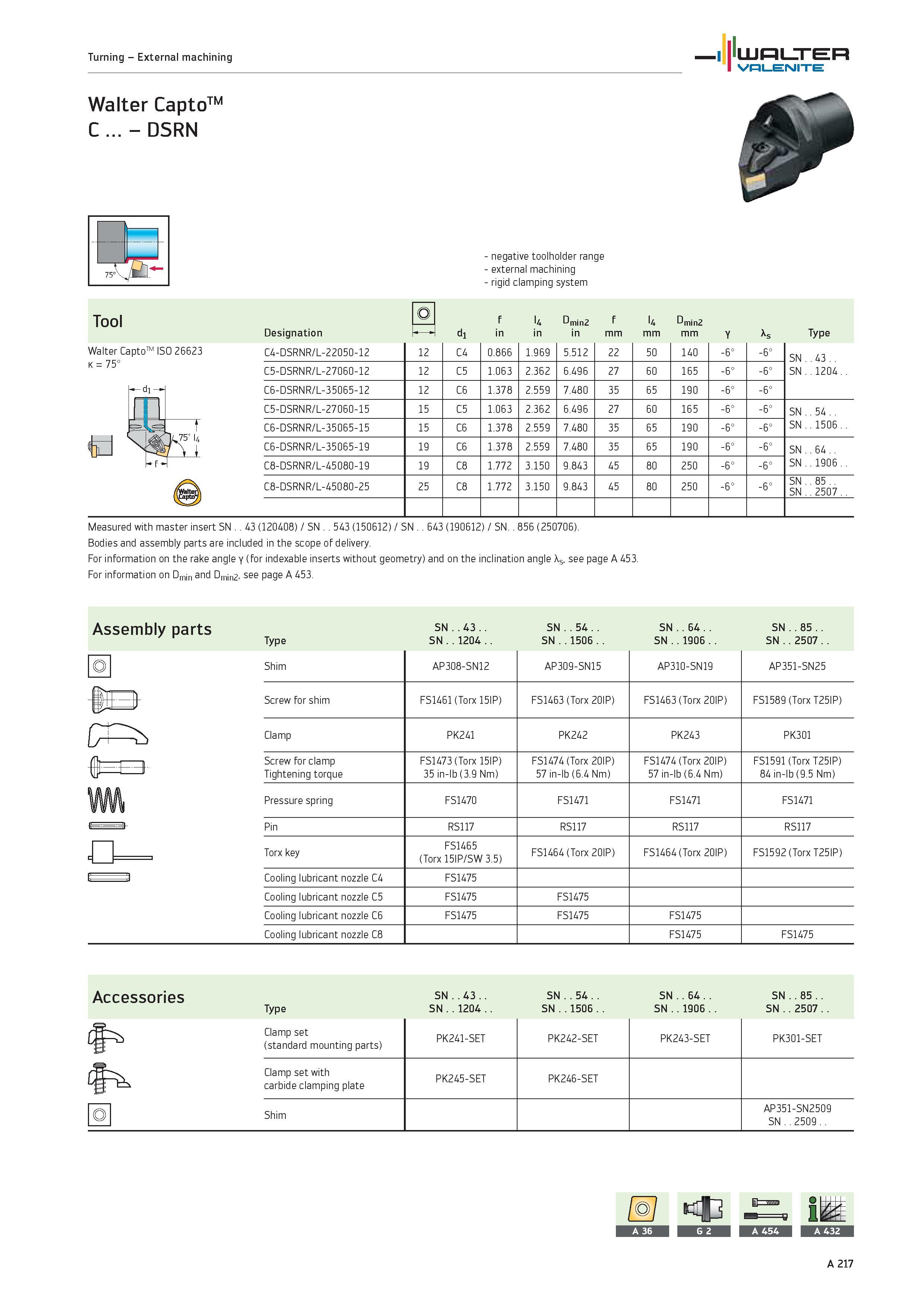

Turning External machining WALTER Valenite Walter CaptoTM C DSRN Walter CaptoTM ISO 26623 k 75° negative toolholder range external machining rigid clamping system Tool o f l4 Dmin2 f l4 Dmin2 Designation 1 dl in mm Y As Type C4-DSRNR/L-22050-12 12 C4 0.866 1.969 5.512 22 50 140 -6° -6° SN 43 C5-DSRNR/L-27060-12 12 C5 1.063 2.362 6.496 27 60 165 -6° -6° SN .1204 C6-DSRNR/L-35065-12 12 C6 1.378 2.559 7.480 35 65 190 -6° -6° C5-DSRNR/L-27060-15 15 C5 1.063 2.362 6.496 27 60 165 -6° -6° SN 54 C6-DSRNR/L-35065-15 15 C6 1.378 2.559 7.480 35 65 190 -6° -6° SN .1506 C6-DSRNR/L-35065-19 19 C6 1.378 2.559 7.480 35 65 190 -6° -6° SN 64 C8-DSRNR/L-45080-19 19 C8 1.772 3.150 9.843 45 80 250 -6° -6° SN .1906 C8-DSRNR/L-45080-25 25 C8 1.772 3.150 9.843 45 80 250 -6° -6° SN SN 85 2507 Measured with master insert SN 43 (120408) / SN 543 (150612) / SN 643 (190612) / SN. 856 (250706). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. Assembly parts Type SN .43. SN 1204 SN 54 SN 1506 SN 64 SN 1906 SN 85 SN 2507 Shim AP308-SN12 AP309-SN15 AP310-SN19 AP351-SN25 Screw for shim FS1461 (Torx 15IP) FS1463 (Torx 20IP) FS1463 (Torx 20IP) FS1589 (Torx T25IP) Clamp PK241 PK242 PK243 PK301 Screw for clamp Tightening torque FS1473 (Torx 15IP) 35 in-lb (3.9 Nm) FS1474 (Torx 20IP) 57 in-lb (6.4 Nm) FS1474 (Torx 20IP) 57 in-lb (6.4 Nm) FS1591 (Torx T25IP) 84 in-lb (9.5 Nm) Pressure spring FS1470 FS1471 FS1471 FS1471 Pin RS117 RS117 RS117 RS117 Torx key FS1465 (Torx 15IP/SW 3.5) FS1464 (Torx 20IP) FS1464 (Torx 20IP) FS1592 (Torx T25IP) Cooling lubricant nozzle C4 FS1475 Cooling lubricant nozzle C5 FS1475 FS1475 Cooling lubricant nozzle C6 FS1475 FS1475 FS1475 Cooling lubricant nozzle C8 FS1475 FS1475 Accessories SN .43. SN 54 SN 64 SN 85 Type SN 1204 SN 1506 SN 1906 SN 2507 Clamp set (standard mounting parts) PK241-SET PK242-SET PK243-SET PK301-SET Clamp set with j 1 carbide clamping plate PK245-SET PK246-SET Q Shim AP351-SN2509 SN..2509. A 217
