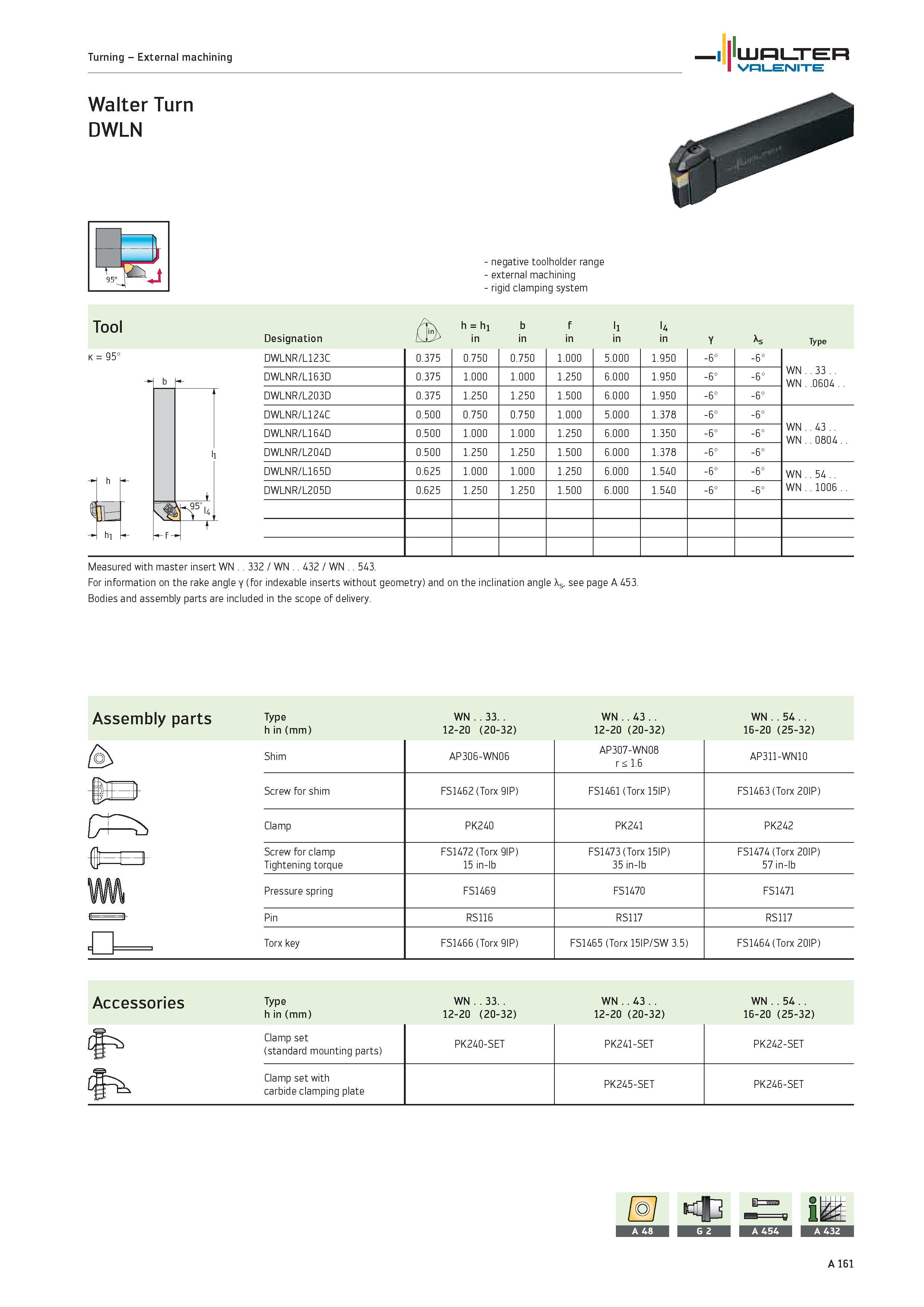

WALTER Valenite Turning External machining Walter Turn DWLN negative toolholder range external machining rigid clamping system Tool Designation h h1 in b in f in l1 in l4 in Y As Type K 95° DWLNR/L123C 0.375 0.750 0.750 1.000 5.000 1.950 -6° -6° b DWLNR/L163D 0.375 1.000 1.000 1.250 6.000 1.950 -6° -6° WN WN 33 .0604 DWLNR/L203D 0.375 1.250 1.250 1.500 6.000 1.950 -6° -6° DWLNR/L124C 0.500 0.750 0.750 1.000 5.000 1.378 -6° -6° DWLNR/L164D 0.500 1.000 1.000 1.250 6.000 1.350 -6° -6° WN WN 43 0804 DWLNR/L204D 0.500 1.250 1.250 1.500 6.000 1.378 -6° -6° DWLNR/L165D 0.625 1.000 1.000 1.250 6.000 1.540 -6° -6° WN 54 DWLNR/L205D 0.625 1.250 1.250 1.500 6.000 1.540 -6° -6° WN .1006 \fl rf'4 t Measured with master insert WN 332 / WN 432 / WN 543. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type h in (mm) WN 33. 12-20 (20-32) WN 43 12-20 (20-32) WN 54 16-20 (25-32) Shim AP306-WN06 AP307-WN08 r < 1.6 AP311-WN10 Screw for shim FS1462 (Torx 9IP) FS1461 (Torx 15IP) FS1463 (Torx 20IP) Clamp PK240 PK241 PK242 Screw for clamp FS1472 (Torx 9IP) FS1473 (Torx 15IP) FS1474 (Torx 20IP) Tightening torque 15 in-lb 35 in-lb 57 in-lb Pressure spring FS1469 FS1470 FS1471 Pin RS116 RS117 RS117 Torx key FS1466 (Torx 9IP) FS1465 (Torx 15IP/SW 3.5) FS1464 (Torx 20IP) Accessories Type h in (mm) WN 33. 12-20 (20-32) WN 43 12-20 (20-32) WN 54 16-20 (25-32) Clamp set (standard mounting parts) PK240-SET PK241-SET PK242-SET Clamp set with carbide clamping plate PK245-SET PK246-SET A 161
