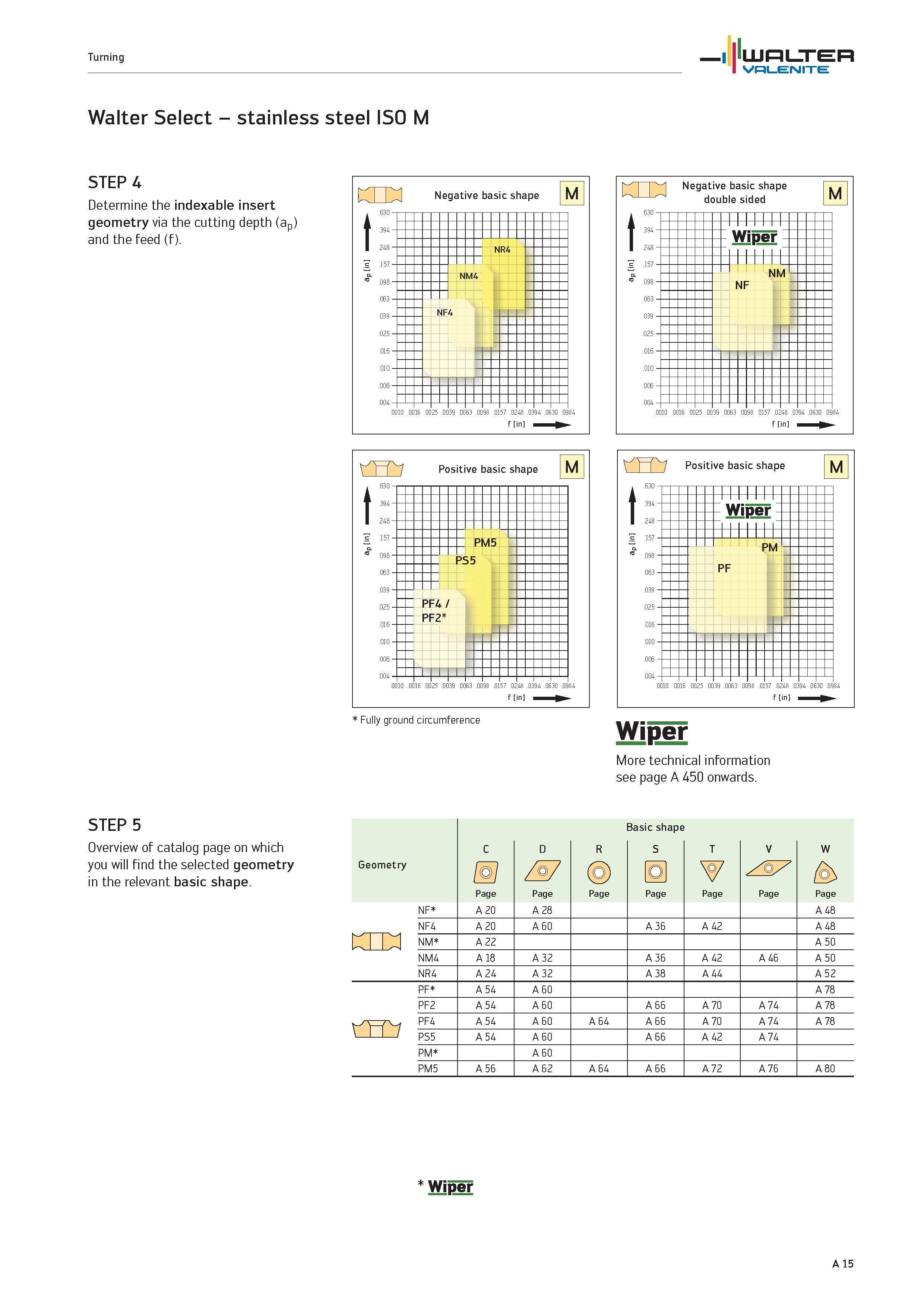

Turning WALTER Valenite Walter Select stainless steel ISO M STEP 4 Determine the indexable insert geometry via the cutting depth (ap) and the feed (f). Fully ground circumference Wiper More technical information see page A 450 onwards. STEP 5 Overview of catalog page on which you will find the selected geometry in the relevant basic shape. Basic shape Geometry NF C D R S T V W Page A 20 Z 7 Page A 28 Page o Page w Page /o> Page A 48 NF4 A 20 A 60 A 36 A 42 A 48 Cl 1II NM A 22 A 50 NM4 A 18 A 32 A 36 A 42 A 46 A 50 NR4 A 24 A 32 A 38 A 44 A 52 PF A 54 A 60 A 78 PF2 A 54 A 60 A 66 A 70 A 74 A 78 PF4 A 54 A 60 A 64 A 66 A 70 A 74 A 78 n ps5 A 54 A 60 A 66 A 42 A 74 PM A 60 PM5 A 56 A 62 A 64 A 66 A 72 A 76 A 80 WiRer A 15
