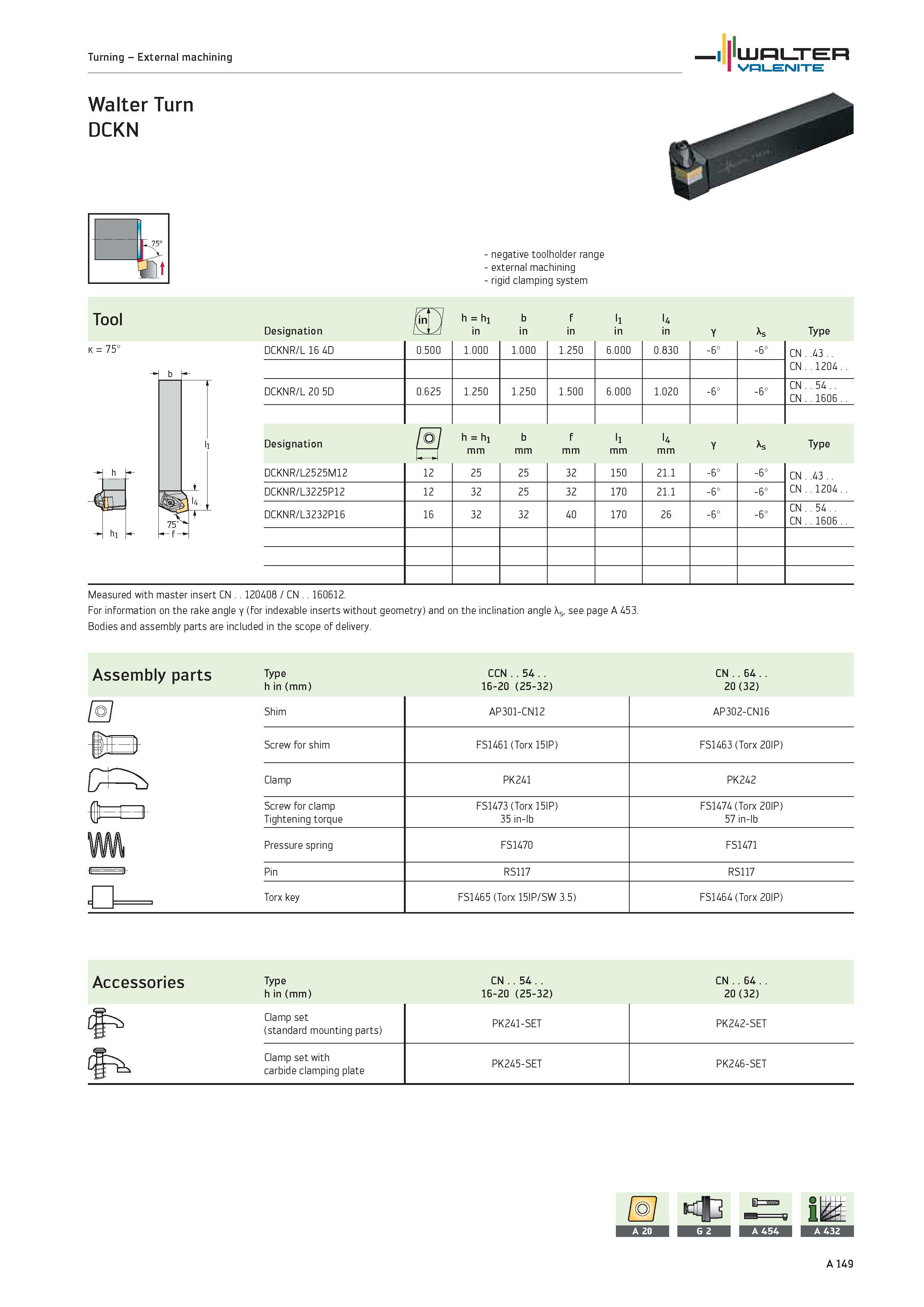

Turning External machining WALTER Valenite negative toolholder range external machining rigid clamping system Tool finj J h h1 b f l1 l4 Designation in Y As Type k 75° DCKNR/L 16 4D O.5OO 1.OOO 1.OOO 1.25O 6.OOO O.83O -6° -6° CN .43 CN .12O4 DCKNR/L 2O 5D O.625 1.25O 1.25O 1.5OO 6.OOO 1.O2O -6° -6° CN CN 54 .16O6 Designation h h1 mm b mm f mm l1 mm l4 mm Type DCKNR/L2525M12 12 25 25 32 15O 21.1 -6° -6° CN .43 CN 12O4 DCKNR/L3225P12 12 32 25 32 17O 21.1 -6° -6° DCKNR/L3232P16 16 32 32 4O 17O 26 -6° -6° CN ..54 CN ..16O6 Measured with master insert CN 120408 / CN 160612. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type CCN 54 CN 64 h in (mm) 16-20 (25-32) 20 (32) Accessories Type h in (mm) CN 54 16-20 (25-32) CN 64 20 (32) Clamp set (standard mounting parts) PK241-SET PK242-SET Clamp set with PK245-SET PK246-SET IT9 carbide clamping plate A 149
