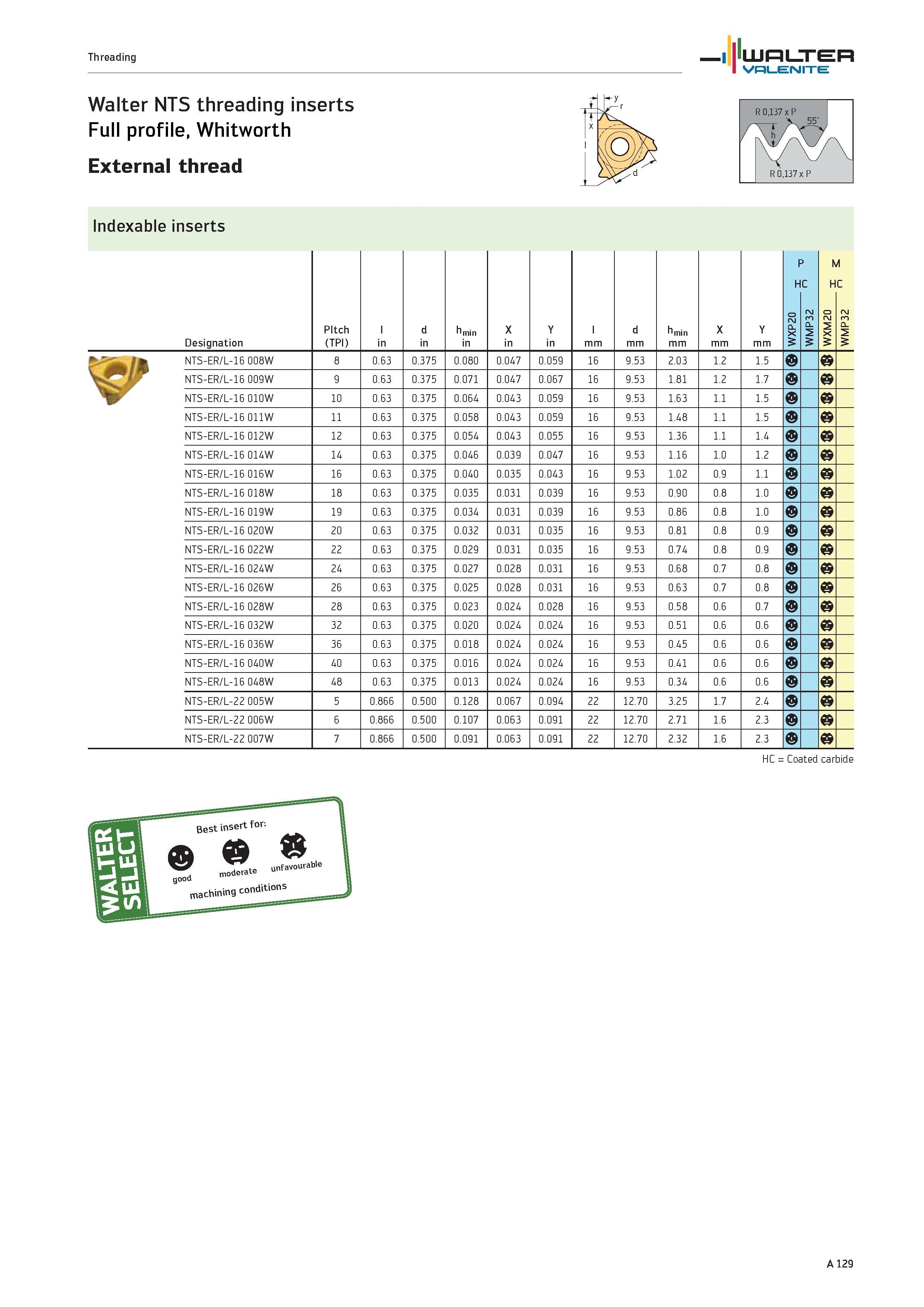

Threading WALTER Valenite Walter NTS threading inserts Full profile, Whitworth External thread Indexable inserts Designation Pitch (TPI) l in d in hmin in X in Y in l mm d mm hmin mm X mm Y mm H 0 P X WX WMP32 n M H 0 2 X 5 WMP32 n NTS-ER/L-16 008W 8 0.63 0.375 0.080 0.047 0.059 16 9.53 2.03 1.2 1.5 V NTS-ER/L-16 009W 9 0.63 0.375 0.071 0.047 0.067 16 9.53 1.81 1.2 1.7 NTS-ER/L-16 010W 10 0.63 0.375 0.064 0.043 0.059 16 9.53 1.63 1.1 1.5 NTS-ER/L-16 011W 11 0.63 0.375 0.058 0.043 0.059 16 9.53 1.48 1.1 1.5 NTS-ER/L-16 012W 12 0.63 0.375 0.054 0.043 0.055 16 9.53 1.36 1.1 1.4 NTS-ER/L-16 014W 14 0.63 0.375 0.046 0.039 0.047 16 9.53 1.16 1.0 1.2 NTS-ER/L-16 016W 16 0.63 0.375 0.040 0.035 0.043 16 9.53 1.02 0.9 1.1 NTS-ER/L-16 018W 18 0.63 0.375 0.035 0.031 0.039 16 9.53 0.90 0.8 1.0 NTS-ER/L-16 019W 19 0.63 0.375 0.034 0.031 0.039 16 9.53 0.86 0.8 1.0 NTS-ER/L-16 020W 20 0.63 0.375 0.032 0.031 0.035 16 9.53 0.81 0.8 0.9 NTS-ER/L-16 022W 22 0.63 0.375 0.029 0.031 0.035 16 9.53 0.74 0.8 0.9 NTS-ER/L-16 024W 24 0.63 0.375 0.027 0.028 0.031 16 9.53 0.68 0.7 0.8 NTS-ER/L-16 026W 26 0.63 0.375 0.025 0.028 0.031 16 9.53 0.63 0.7 0.8 NTS-ER/L-16 028W 28 0.63 0.375 0.023 0.024 0.028 16 9.53 0.58 0.6 0.7 NTS-ER/L-16 032W 32 0.63 0.375 0.020 0.024 0.024 16 9.53 0.51 0.6 0.6 NTS-ER/L-16 036W 36 0.63 0.375 0.018 0.024 0.024 16 9.53 0.45 0.6 0.6 NTS-ER/L-16 040W 40 0.63 0.375 0.016 0.024 0.024 16 9.53 0.41 0.6 0.6 NTS-ER/L-16 048W 48 0.63 0.375 0.013 0.024 0.024 16 9.53 0.34 0.6 0.6 NTS-ER/L-22 005W 5 0.866 0.500 0.128 0.067 0.094 22 12.70 3.25 1.7 2.4 NTS-ER/L-22 006W 6 0.866 0.500 0.107 0.063 0.091 22 12.70 2.71 1.6 2.3 NTS-ER/L-22 007W 7 0.866 0.500 0.091 0.063 0.091 22 12.70 2.32 1.6 2.3 HC Coated carbide A 129
