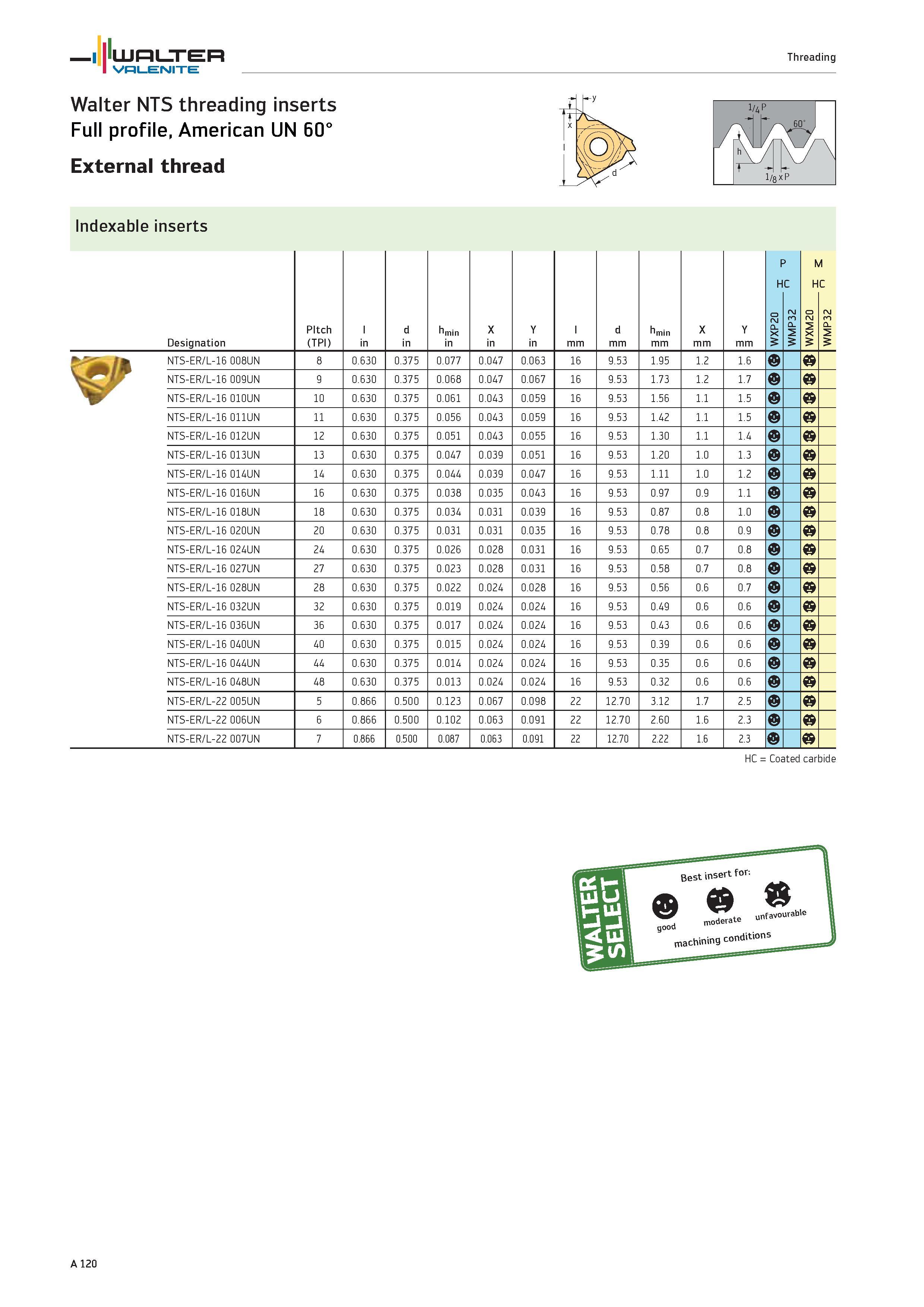

WALTER Valenite Threading Walter NTS threading inserts Full profile, American UN 60° External thread Indexable inserts Designation Pitch (TPI) l in d in hmin in X in Y in l mm d mm hmin mm X mm Y mm H 0 O- X WX WMP32 n M H 0 2 X 5 A C 2 m CL M W NTS-ER/L-16 008UN 8 0.630 0.375 0.077 0.047 0.063 16 9.53 1.95 1.2 1.6 NTS-ER/L-16 009UN 9 0.630 0.375 0.068 0.047 0.067 16 9.53 1.73 1.2 1.7 NTS-ER/L-16 010UN 10 0.630 0.375 0.061 0.043 0.059 16 9.53 1.56 1.1 1.5 NTS-ER/L-16 011UN 11 0.630 0.375 0.056 0.043 0.059 16 9.53 1.42 1.1 1.5 NTS-ER/L-16 012UN 12 0.630 0.375 0.051 0.043 0.055 16 9.53 1.30 1.1 1.4 NTS-ER/L-16 013UN 13 0.630 0.375 0.047 0.039 0.051 16 9.53 1.20 1.0 1.3 NTS-ER/L-16 014UN 14 0.630 0.375 0.044 0.039 0.047 16 9.53 1.11 1.0 1.2 NTS-ER/L-16 016UN 16 0.630 0.375 0.038 0.035 0.043 16 9.53 0.97 0.9 1.1 NTS-ER/L-16 018UN 18 0.630 0.375 0.034 0.031 0.039 16 9.53 0.87 0.8 1.0 NTS-ER/L-16 020UN 20 0.630 0.375 0.031 0.031 0.035 16 9.53 0.78 0.8 0.9 NTS-ER/L-16 024UN 24 0.630 0.375 0.026 0.028 0.031 16 9.53 0.65 0.7 0.8 NTS-ER/L-16 027UN 27 0.630 0.375 0.023 0.028 0.031 16 9.53 0.58 0.7 0.8 NTS-ER/L-16 028UN 28 0.630 0.375 0.022 0.024 0.028 16 9.53 0.56 0.6 0.7 NTS-ER/L-16 032UN 32 0.630 0.375 0.019 0.024 0.024 16 9.53 0.49 0.6 0.6 NTS-ER/L-16 036UN 36 0.630 0.375 0.017 0.024 0.024 16 9.53 0.43 0.6 0.6 NTS-ER/L-16 040UN 40 0.630 0.375 0.015 0.024 0.024 16 9.53 0.39 0.6 0.6 NTS-ER/L-16 044UN 44 0.630 0.375 0.014 0.024 0.024 16 9.53 0.35 0.6 0.6 NTS-ER/L-16 048UN 48 0.630 0.375 0.013 0.024 0.024 16 9.53 0.32 0.6 0.6 NTS-ER/L-22 005UN 5 0.866 0.500 0.123 0.067 0.098 22 12.70 3.12 1.7 2.5 NTS-ER/L-22 006UN 6 0.866 0.500 0.102 0.063 0.091 22 12.70 2.60 1.6 2.3 NTS-ER/L-22 007UN 7 0.866 0.500 0.087 0.063 0.091 2 2 12.70 2.22 1.6 2.3 HC Coated carbide A 120
