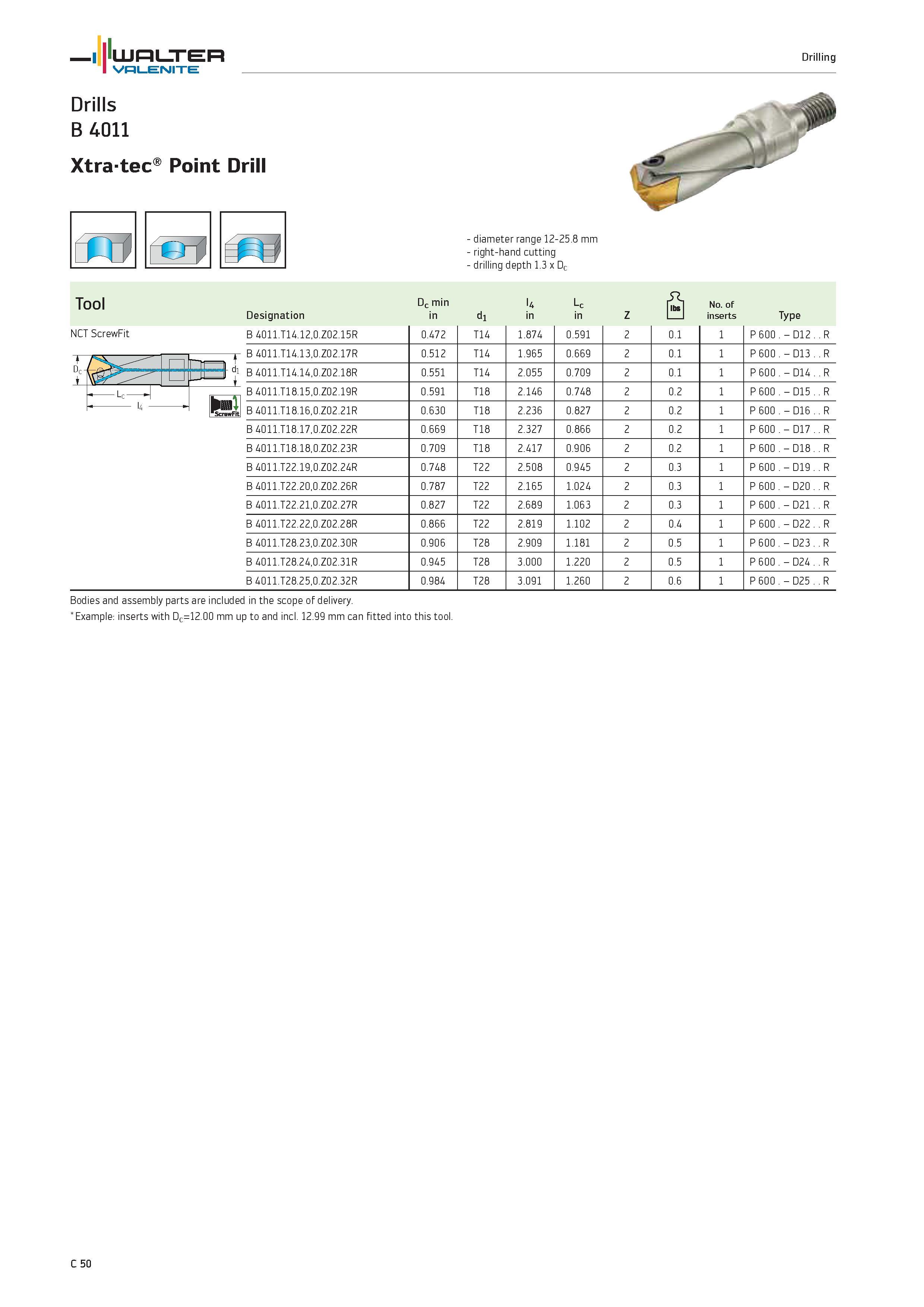

Drills WALTER B 4011 Xtra-tec Point Drill re diameter range 12-25 8 mm right-hand cutting drilling depth 1 3 x Dc Tool Designation Dc min in d1 l

Drills WALTER B 4011 Xtra-tec Point Drill re diameter range 12-25.8 mm right-hand cutting drilling depth 1.3 x Dc Tool Designation Dc min in d1 l4 in Lc in Z 0 No. of inserts Type NCT SrrewFit B 4011.T14.12.0.Z02.15R 0.472 T14 1.874 0.591 2 0.1 1 P 600 D12 R t 1 h K= 1, t B 4011.T14.13.0.Z02.17R 0.512 T14 1.965 0.669 2 0.1 1 P 600 D13 R Dc-i T B 4011.T14.14.0.Z02.18R 0.551 T14 2.055 0.709 2 0.1 1 P 600 D14 R Lc -1 B 4011.T18.15.0.Z02.19R 0.591 T18 2.146 0.748 2 0.2 1 P 600 D15 R l4 ScrawFrt B 4011.T18.16.0.Z02.21R 0.630 T18 2.236 0.827 2 0.2 1 P 600 D16 R B 4011.T18.17.0.Z02.22R 0.669 T18 2.327 0.866 2 0.2 1 P 600 D17 R B 4011.T18.18.0.Z02.23R 0.709 T18 2.417 0.906 2 0.2 1 P 600 D18 R B 4011.T22.19.0.Z02.24R 0.748 T22 2.508 0.945 2 0.3 1 P 600 D19 R B 4011.T22.20.0.Z02.26R 0.787 T22 2.165 1.024 2 0.3 1 P 600 D20 R B 4011.T22.21.0.Z02.27R 0.827 T22 2.689 1.063 2 0.3 1 P 600 D21 R B 4011.T22.22.0.Z02.28R 0.866 T22 2.819 1.102 2 0.4 1 P 600 D22 R B 4011.T28.23.0.Z02.30R 0.906 T28 2.909 1.181 2 0.5 1 P 600 D23 R B 4011.T28.24.0.Z02.31R 0.945 T28 3.000 1.220 2 0.5 1 P 600 D24 R B 4011.T28.25.0.Z02.32R 0.984 T28 3.091 1.260 2 0.6 1 P 600 D25 R Bodies and assembly parts are included in the scope of delivery. Example inserts with Dc=12.00 mm up to and incl. 12.99 mm can fitted into this tool. C 50 Valenite Drilling
