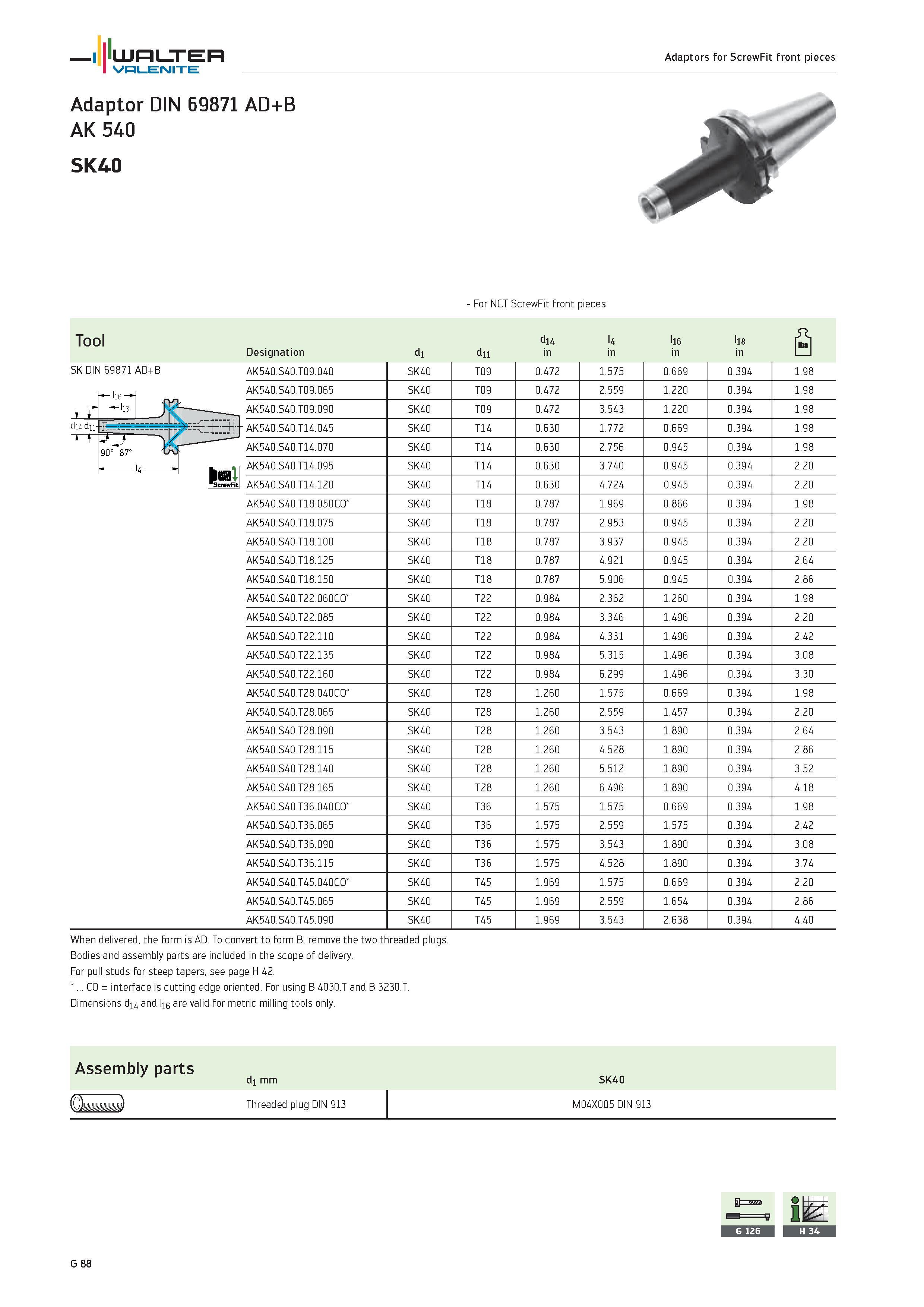

WALTER Valenite Adaptors for ScrewFit front pieces Adaptor DIN 69871 AD+B AK 540 SK40 For NCT ScrewFit front pieces Tool Designation di dii di4 in l4 in li6 in li8 in s SK DIN 69871 AD+B AK540.S40.T09.040 SK40 T09 0.472 1.575 0.669 0.394 1.98 r ll6 118 AK540.S40.T09.065 SK40 T09 0.472 2.559 1.220 0.394 1.98 AK540.S40.T09.090 SK40 T09 0.472 3.543 1.220 0.394 1.98 di4 dn iiror AK540.S40.T14.045 SK40 T14 0.630 1.772 0.669 0.394 1.98 t JU 90° 87° Wr AK540.S40.T14.070 SK40 T14 0.630 2.756 0.945 0.394 1.98 AK540.S40.T14.095 SK40 T14 0.630 3.740 0.945 0.394 2.20 p m ScrewFit AK540.S40.T14.120 SK40 T14 0.630 4.724 0.945 0.394 2.20 AK540.S40.T18.050C0 SK40 T18 0.787 1.969 0.866 0.394 1.98 AK540.S40.T18.075 SK40 T18 0.787 2.953 0.945 0.394 2.20 AK540.S40.T18.100 SK40 T18 0.787 3.937 0.945 0.394 2.20 AK540.S40.T18.125 SK40 T18 0.787 4.921 0.945 0.394 2.64 AK540.S40.T18.150 SK40 T18 0.787 5.906 0.945 0.394 2.86 AK540.S40.T22.060C0 SK40 T22 0.984 2.362 1.260 0.394 1.98 AK540.S40.T22.085 SK40 T22 0.984 3.346 1.496 0.394 2.20 AK540.S40.T22.110 SK40 T22 0.984 4.331 1.496 0.394 2.42 AK540.S40.T22.135 SK40 T22 0.984 5.315 1.496 0.394 3.08 AK540.S40.T22.160 SK40 T22 0.984 6.299 1.496 0.394 3.30 AK540.S40.T28.040C0 SK40 T28 1.260 1.575 0.669 0.394 1.98 AK540.S40.T28.065 SK40 T28 1.260 2.559 1.457 0.394 2.20 AK540.S40.T28.090 SK40 T28 1.260 3.543 1.890 0.394 2.64 AK540.S40.T28.115 SK40 T28 1.260 4.528 1.890 0.394 2.86 AK540.S40.T28.140 SK40 T28 1.260 5.512 1.890 0.394 3.52 AK540.S40.T28.165 SK40 T28 1.260 6.496 1.890 0.394 4.18 AK540.S40.T36.040C0 SK40 T36 1.575 1.575 0.669 0.394 1.98 AK540.S40.T36.065 SK40 T36 1.575 2.559 1.575 0.394 2.42 AK540.S40.T36.090 SK40 T36 1.575 3.543 1.890 0.394 3.08 AK540.S40.T36.115 SK40 T36 1.575 4.528 1.890 0.394 3.74 AK540.S40.T45.040C0 SK40 T45 1.969 1.575 0.669 0.394 2.20 AK540.S40.T45.065 SK40 T45 1.969 2.559 1.654 0.394 2.86 AK540.S40.T45.090 SK40 T45 1.969 3.543 2.638 0.394 4.40 When delivered, the form is AD. To convert to form B, remove the two threaded plugs. Bodies and assembly parts are included in the scope of delivery. For pull studs for steep tapers, see page H 42. interface is cutting edge oriented. For using B 4030.T and B 3230.T. Dimensions di4 and ljg are valid for metric milling tools only. Assembly parts di mm SK40 (0k Threaded plug DIN 913 M04X005 DIN 913 G 88
