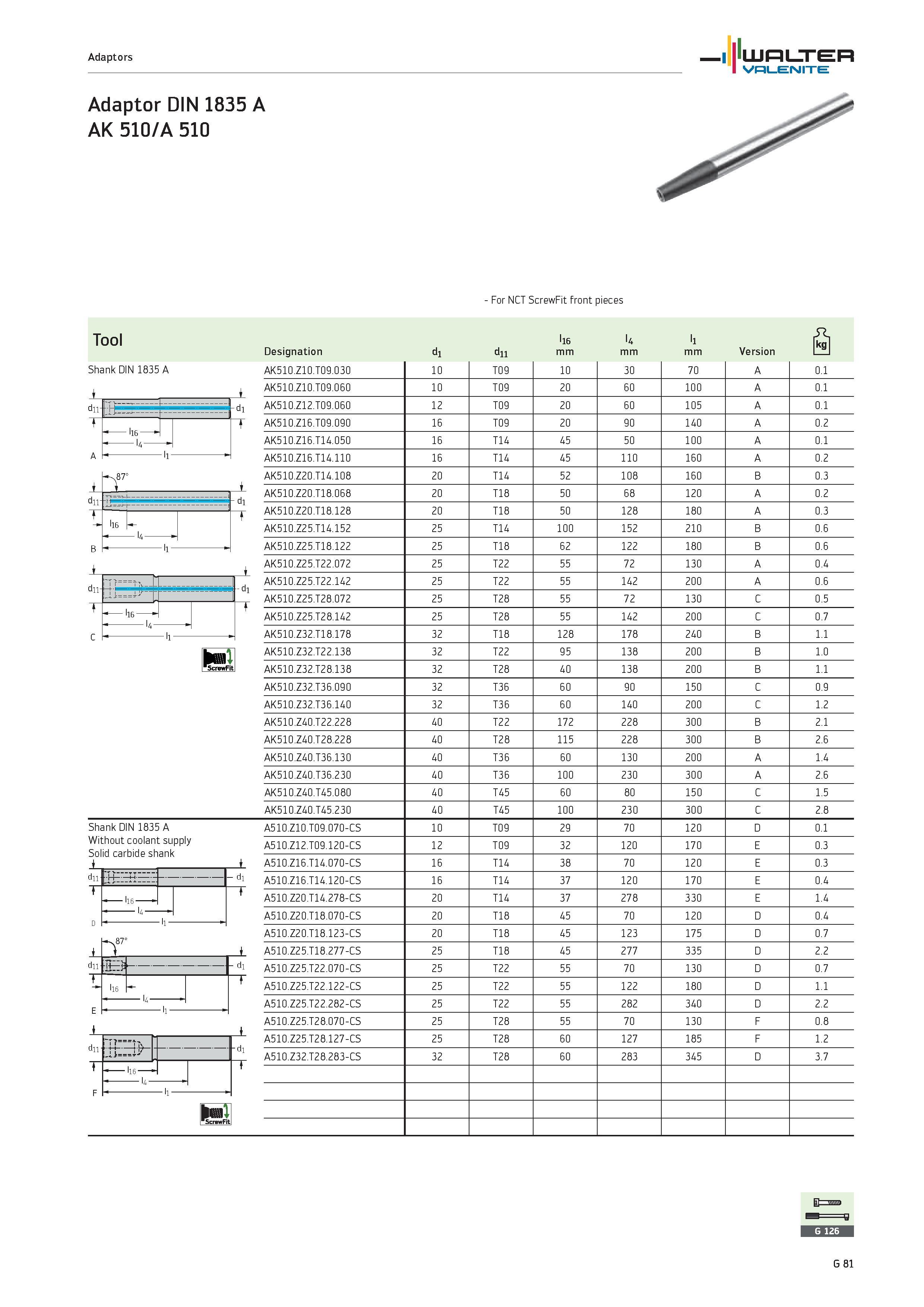

- For NCT ScrewFit front pieces Tool l16 l4 li s Designation di dn mm Version Shank DIN 1835 A >16 C -ll NI AK510.Z10.T09.030 10 T09 10 30 70 A 0.1 AK510.Z10.T09.060 10 T09 20 60 100 A 0.1 AK510.Z12.T09.060 12 T09 20 60 105 A 0.1 AK510.Z16.T09.090 16 T09 20 90 140 A 0.2 AK510.Z16.T14.050 16 T14 45 50 100 A 0.1 AK510.Z16.T14.110 16 T14 45 110 160 A 0.2 AK510.Z20.T14.108 20 T14 52 108 160 B 0.3 AK510.Z20.T18.068 20 T18 50 68 120 A 0.2 AK510.Z20.T18.128 20 T18 50 128 180 A 0.3 AK510.Z25.T14.152 25 T14 100 152 210 B 0.6 AK510.Z25.T18.122 25 T18 62 122 180 B 0.6 AK510.Z25.T22.072 25 T22 55 72 130 A 0.4 AK510.Z25.T22.142 25 T22 55 142 200 A 0.6 AK510.Z25.T28.072 25 T28 55 72 130 C 0.5 AK510.Z25.T28.142 25 T28 55 142 200 C 0.7 AK510.Z32.T18.178 32 T18 128 178 240 B 1.1 AK510.Z32.T22.138 32 T22 95 138 200 B 1.0 AK510.Z32.T28.138 32 T28 40 138 200 B 1.1 AK510.Z32.T36.090 32 T36 60 90 150 C 0.9 AK510.Z32.T36.140 32 T36 60 140 200 C 1.2 AK510.Z40.T22.228 40 T22 172 228 300 B 2.1 AK510.Z40.T28.228 40 T28 115 228 300 B 2.6 AK510.Z40.T36.130 40 T36 60 130 200 A 1.4 AK510.Z40.T36.230 40 T36 100 230 300 A 2.6 AK510.Z40.T45.080 40 T45 60 80 150 C 1.5 AK510.Z40.T45.230 40 T45 100 230 300 C 2.8 A510.Z10.T09.070-CS 10 T09 29 70 120 D 0.1 A510.Z12.T09.120-CS 12 T09 32 120 170 E 0.3 A510.Z16.T14.070-CS 16 T14 38 70 120 E 0.3 A510.Z16.T14.120-CS 16 T14 37 120 170 E 0.4 A510.Z20.T14.278-CS 20 T14 37 278 330 E 1.4 A510.Z20.T18.070-CS 20 T18 45 70 120 D 0.4 A510.Z20.T18.123-CS 20 T18 45 123 175 D 0.7 A510.Z25.T18.277-CS 25 T18 45 277 335 D 2.2 A510.Z25.T22.070-CS 25 T22 55 70 130 D 0.7 A510.Z25.T22.122-CS 25 T22 55 122 180 D 1.1 A510.Z25.T22.282-CS 25 T22 55 282 340 D 2.2 A510.Z25.T28.070-CS 25 T28 55 70 130 F 0.8 A510.Z25.T28.127-CS 25 T28 60 127 185 F 1.2 A510.Z32.T28.283-CS 32 T28 60 283 345 D 3.7 Shank DIN 1835 A Without coolant supply G 81
