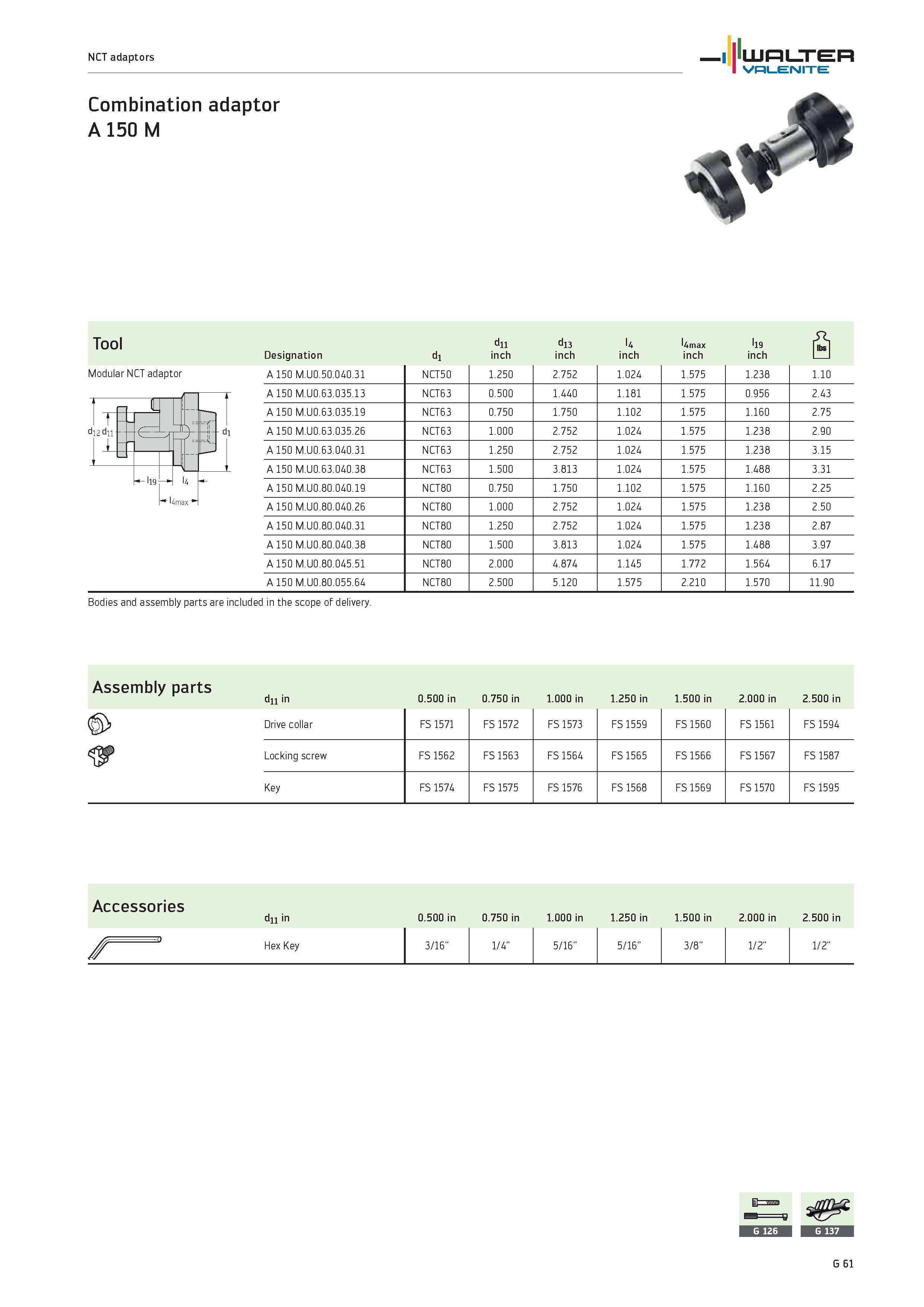

NCT adaptors WALTER Valenite Combination adaptor A 150 M Tool d11 d13 U Umax l19 2l Designation d1 inch inch inch inch inch 1 1 Modular NCT adaptor A 150 M.U0.50.040.31 NCT50 1.250 2.752 1.024 1.575 1.238 1.10 A 150 M.U0.63.035.13 NCT63 0.500 1.440 1.181 1.575 0.956 2.43 A 150 M.U0.63.035.19 NCT63 0.750 1.750 1.102 1.575 1.160 2.75 A 150 M.U0.63.035.26 NCT63 1.000 2.752 1.024 1.575 1.238 2.90 A 150 M.U0.63.040.31 NCT63 1.250 2.752 1.024 1.575 1.238 3.15 A 150 M.U0.63.040.38 NCT63 1.500 3.813 1.024 1.575 1.488 3.31 A 150 M.U0.80.040.19 NCT80 0.750 1.750 1.102 1.575 1.160 2.25 A 150 M.U0.80.040.26 NCT80 1.000 2.752 1.024 1.575 1.238 2.50 A 150 M.U0.80.040.31 NCT80 1.250 2.752 1.024 1.575 1.238 2.87 A 150 M.U0.80.040.38 NCT80 1.500 3.813 1.024 1.575 1.488 3.97 A 150 M.U0.80.045.51 NCT80 2.000 4.874 1.145 1.772 1.564 6.17 A 150 M.U0.80.055.64 NCT80 2.500 5.120 1.575 2.210 1.570 11.90 Bodies and assembly parts are included in the scope of delivery. Assembly parts d11 in 0.500 in 0.750 in 1.000 in 1.250 in 1.500 in 2.000 in 2.500 in Drive collar FS 1571 FS 1572 FS 1573 FS 1559 FS 1560 FS 1561 FS 1594 Locking screw FS 1562 FS 1563 FS 1564 FS 1565 FS 1566 FS 1567 FS 1587 Key FS 1574 FS 1575 FS 1576 FS 1568 FS 1569 FS 1570 FS 1595 Accessories d11 in 0.500 in 0.750 in 1.000 in 1.250 in 1.500 in 2.000 in 2.500 in / Hex Key 3/16" 1/4" 5/16" 5/16" 3/8" 1/2" 1/2" G 61
