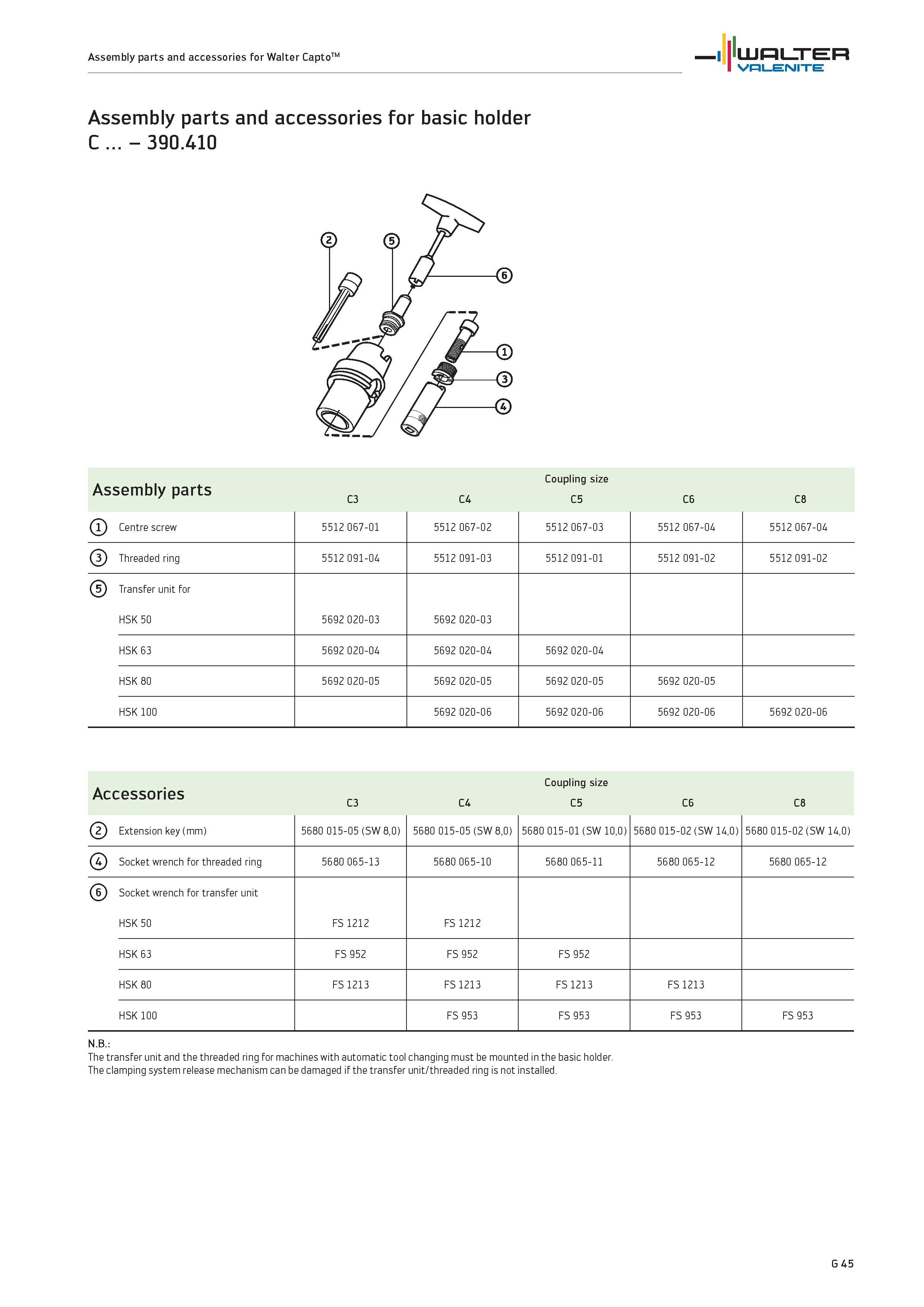

Assembly parts and accessories for Walter CaptoTM WALTER Valenite Assembly parts and accessories for basic holder C 390.410 Assembly parts Coupling size C3 C4 C5 C6 C8 Centre screw 5512 067-01 5512 067-02 5512 067-03 5512 067-04 5512 067-04 Threaded ring 5512 091-04 5512 091-03 5512 091-01 5512 091-02 5512 091-02 Transfer unit for HSK 50 5692 020-03 5692 020-03 HSK 63 5692 020-04 5692 020-04 5692 020-04 HSK 80 5692 020-05 5692 020-05 5692 020-05 5692 020-05 HSK 100 5692 020-06 5692 020-06 5692 020-06 5692 020-06 Accessories Coupling size C3 C4 C5 C6 C8 (p Extension key (mm) 5680 015-05 (SW 8,0) 5680 015-05 (SW 8,0) 5680 015-01 (SW 10,0) 5680 015-02 (SW 14,0) 5680 015-02 (SW 14,0) (p Socket wrench for threaded ring 5680 065-13 5680 065-10 5680 065-11 5680 065-12 5680 065-12 (p Socket wrench for transfer unit HSK 50 FS 1212 FS 1212 HSK 63 FS 952 FS 952 FS 952 HSK 80 FS 1213 FS 1213 FS 1213 FS 1213 HSK 100 FS 953 FS 953 FS 953 FS 953 The transfer unit and the threaded ring for machines with automatic tool changing must be mounted in the basic holder. The clamping system release mechanism can be damaged if the transfer unit/threaded ring is not installed. G 45
