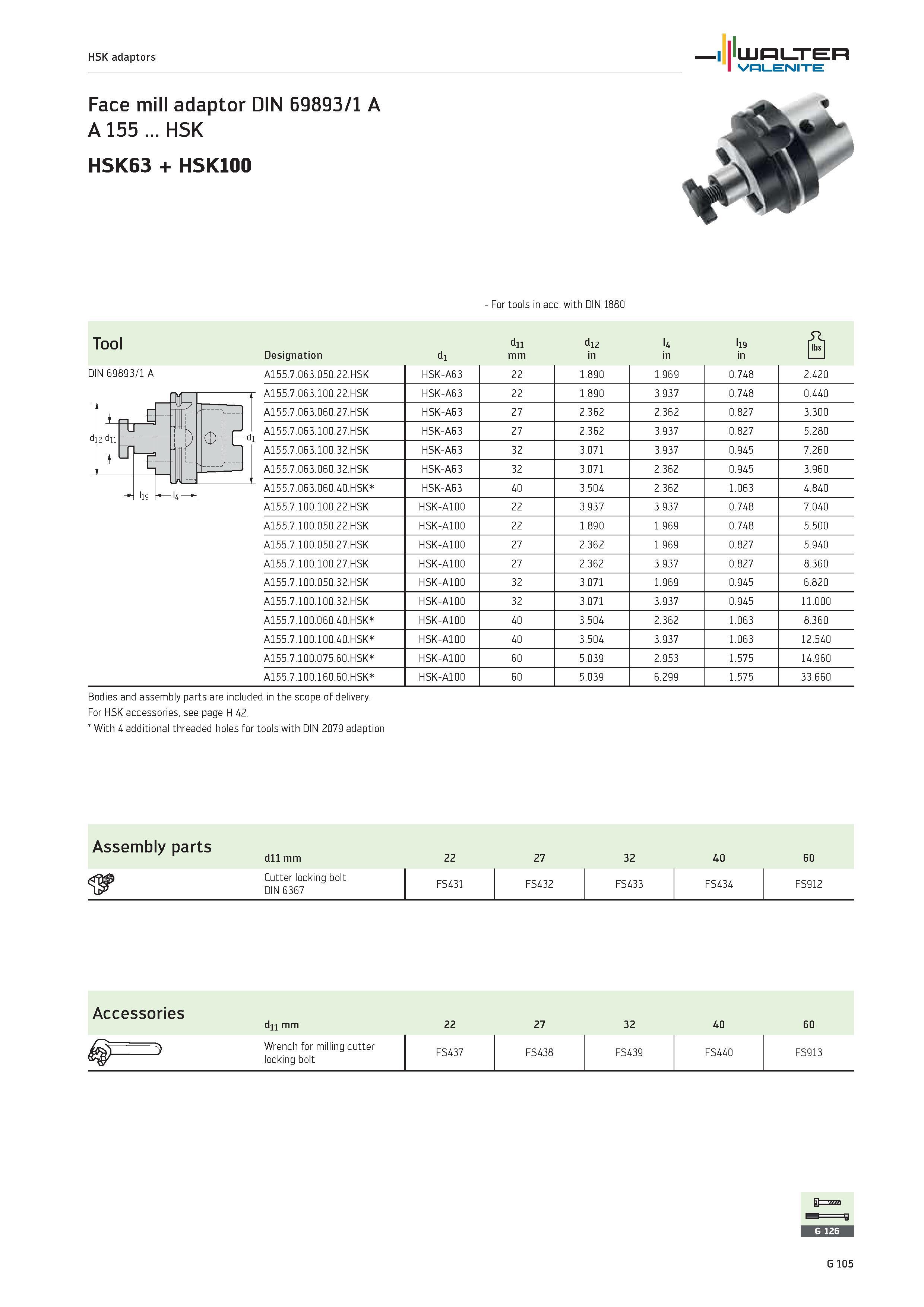

HSK adaptors WALTER Valenite Face mill adaptor DIN 69893/1 A A 155 HSK HSK63 + HSK100 For tools in acc. with DIN 1880 Tool dii di2 u li9 hbsl Designation di mm in 1 1 DIN 69893/1 A A155.7.063.050.22.HSK HSK-A63 22 1.890 1.969 0.748 2.420 A155.7.063.100.22.HSK HSK-A63 22 1.890 3.937 0.748 0.440 A155.7.063.060.27.HSK HSK-A63 27 2.362 2.362 0.827 3.300 A155.7.063.100.27.HSK HSK-A63 27 2.362 3.937 0.827 5.280 A155.7.063.100.32.HSK HSK-A63 32 3.071 3.937 0.945 7.260 A155.7.063.060.32.HSK HSK-A63 32 3.071 2.362 0.945 3.960 A155.7.063.060.40.HSK HSK-A63 40 3.504 2.362 1.063 4.840 A155.7.100.100.22.HSK HSK-A100 22 3.937 3.937 0.748 7.040 A155.7.100.050.22.HSK HSK-A100 22 1.890 1.969 0.748 5.500 A155.7.100.050.27.HSK HSK-A100 27 2.362 1.969 0.827 5.940 A155.7.100.100.27.HSK HSK-A100 27 2.362 3.937 0.827 8.360 A155.7.100.050.32.HSK HSK-A100 32 3.071 1.969 0.945 6.820 A155.7.100.100.32.HSK HSK-A100 32 3.071 3.937 0.945 11.000 A155.7.100.060.40.HSK HSK-A100 40 3.504 2.362 1.063 8.360 A155.7.100.100.40.HSK HSK-A100 40 3.504 3.937 1.063 12.540 A155.7.100.075.60.HSK HSK-A100 60 5.039 2.953 1.575 14.960 A155.7.100.160.60.HSK HSK-A100 60 5.039 6.299 1.575 33.660 Bodies and assembly parts are included in the scope of delivery. For HSK accessories, see page H 42. With 4 additional threaded holes for tools with DIN 2079 adaption Assembly parts dii mm 22 27 32 40 60 Cutter locking bolt DIN 6367 FS431 FS432 FS433 FS434 FS912 Accessories dii mm 22 27 32 40 60 Wrench for milling cutter locking bolt FS437 FS438 FS439 FS440 FS913 G 105
