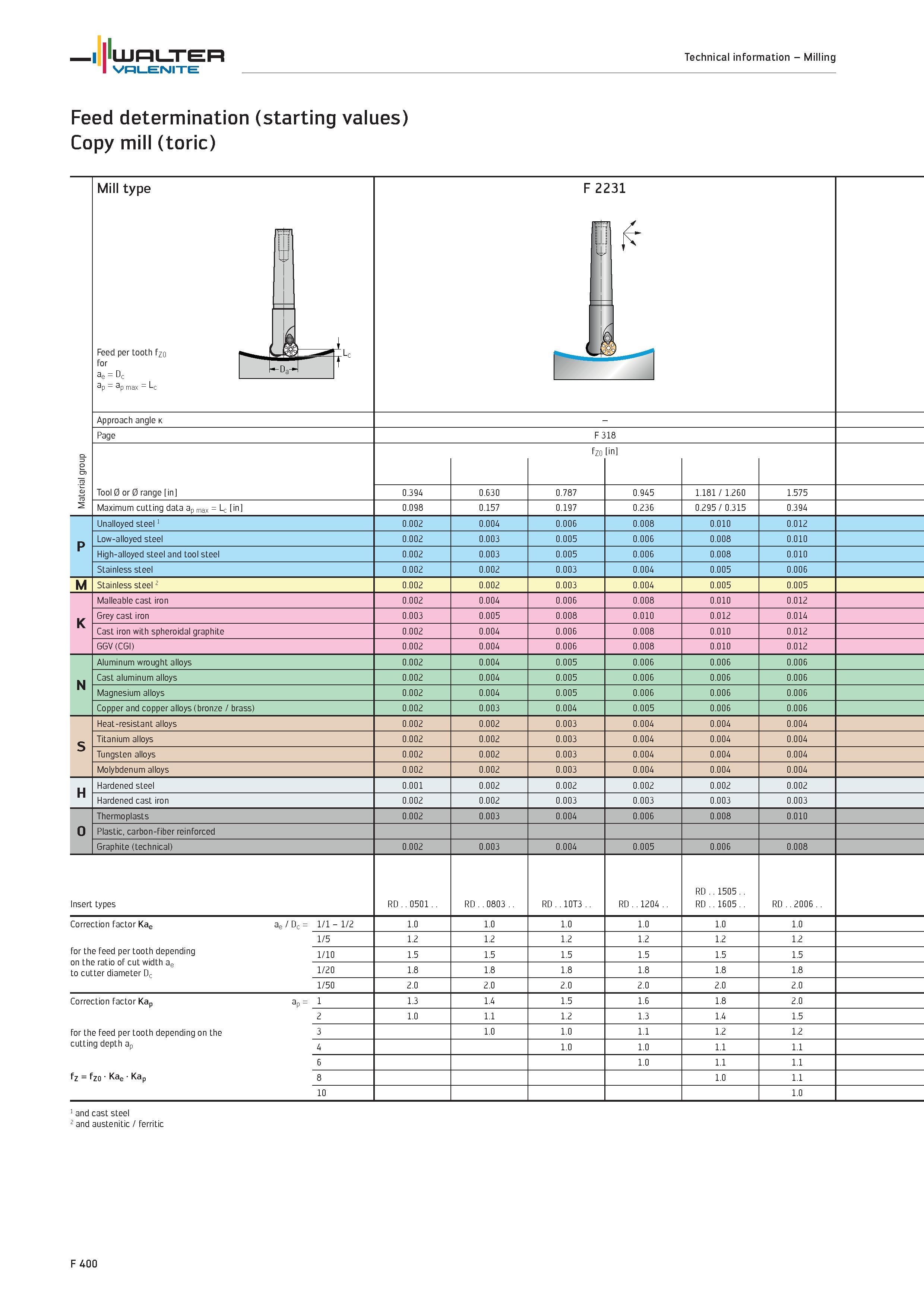

WALTER Valenite Technical information Milling Feed determination (starting values) Copy mill (toric) Material group Mill type r -s F 2 2 zj 31 Feed per tooth fzo I J for -C a- Jlc 7 ap ap max Lc Approach angle k Page F 318 Tool 0 or 0 range in fZ0 in 0.394 0.630 0.787 0.945 1.181 / 1.260 1.575 Maximum cutting data ap max Lc in 0.098 0.157 0.197 0.236 0.295 / 0.315 0.394 p Unalloyed steel 1 0.002 0.004 0.006 0.008 0.010 0.012 Low-alloyed steel 0.002 0.003 0.005 0.006 0.008 0.010 High-alloyed steel and tool steel 0.002 0.003 0.005 0.006 0.008 0.010 Stainless steel 0.002 0.002 0.003 0.004 0.005 0.006 M Stainless steel 2 0.002 0.002 0.003 0.004 0.005 0.005 K Malleable cast iron 0.002 0.004 0.006 0.008 0.010 0.012 Grey cast iron 0.003 0.005 0.008 0.010 0.012 0.014 Cast iron with spheroidal graphite 0.002 0.004 0.006 0.008 0.010 0.012 GGV (CGI) 0.002 0.004 0.006 0.008 0.010 0.012 N Aluminum wrought alloys 0.002 0.004 0.005 0.006 0.006 0.006 Cast aluminum alloys 0.002 0.004 0.005 0.006 0.006 0.006 Magnesium alloys 0.002 0.004 0.005 0.006 0.006 0.006 Copper and copper alloys (bronze / brass) 0.002 0.003 0.004 0.005 0.006 0.006 S Heat-resistant alloys 0.002 0.002 0.003 0.004 0.004 0.004 Titanium alloys 0.002 0.002 0.003 0.004 0.004 0.004 Tungsten alloys 0.002 0.002 0.003 0.004 0.004 0.004 Molybdenum alloys 0.002 0.002 0.003 0.004 0.004 0.004 H Hardened steel 0.001 0.002 0.002 0.002 0.002 0.002 Hardened cast iron 0.002 0.002 0.003 0.003 0.003 0.003 O Thermoplasts 0.002 0.003 0.004 0.006 0.008 0.010 Plastic, carbon-fiber reinforced Graphite (technical) 0.002 0.003 0.004 0.005 0.006 0.008 Insert types RD 0501 RD 0803 RD 10T3 4 CM D R RD .1505 RD 1605 RD 2006 Correction factor Kae ae / for the feed per tooth depending on the ratio of cut width ae to cutter diameter Dc Dc 1/1 1/2 1.0 1.0 1.0 1.0 1.0 1.0 1/5 1.2 1.2 1.2 1.2 1.2 1.2 1/10 1.5 1.5 1.5 1.5 1.5 1.5 1/20 1.8 1.8 1.8 1.8 1.8 1.8 1/50 2.0 2.0 2.0 2.0 2.0 2.0 Correction factor Kap for the feed per tooth depending on the cutting depth ap fz fzo Kae Kap ap 1 1.3 1.4 1.5 1.6 1.8 2.0 2 1.0 1.1 1.2 1.3 1.4 1.5 3 1.0 1.0 1.1 1.2 1.2 4 1.0 1.0 1.1 1.1 6 1.0 1.1 1.1 8 1.0 1.1 10 1.0 1 and cast steel 2 and austenitic / ferritic F 400
