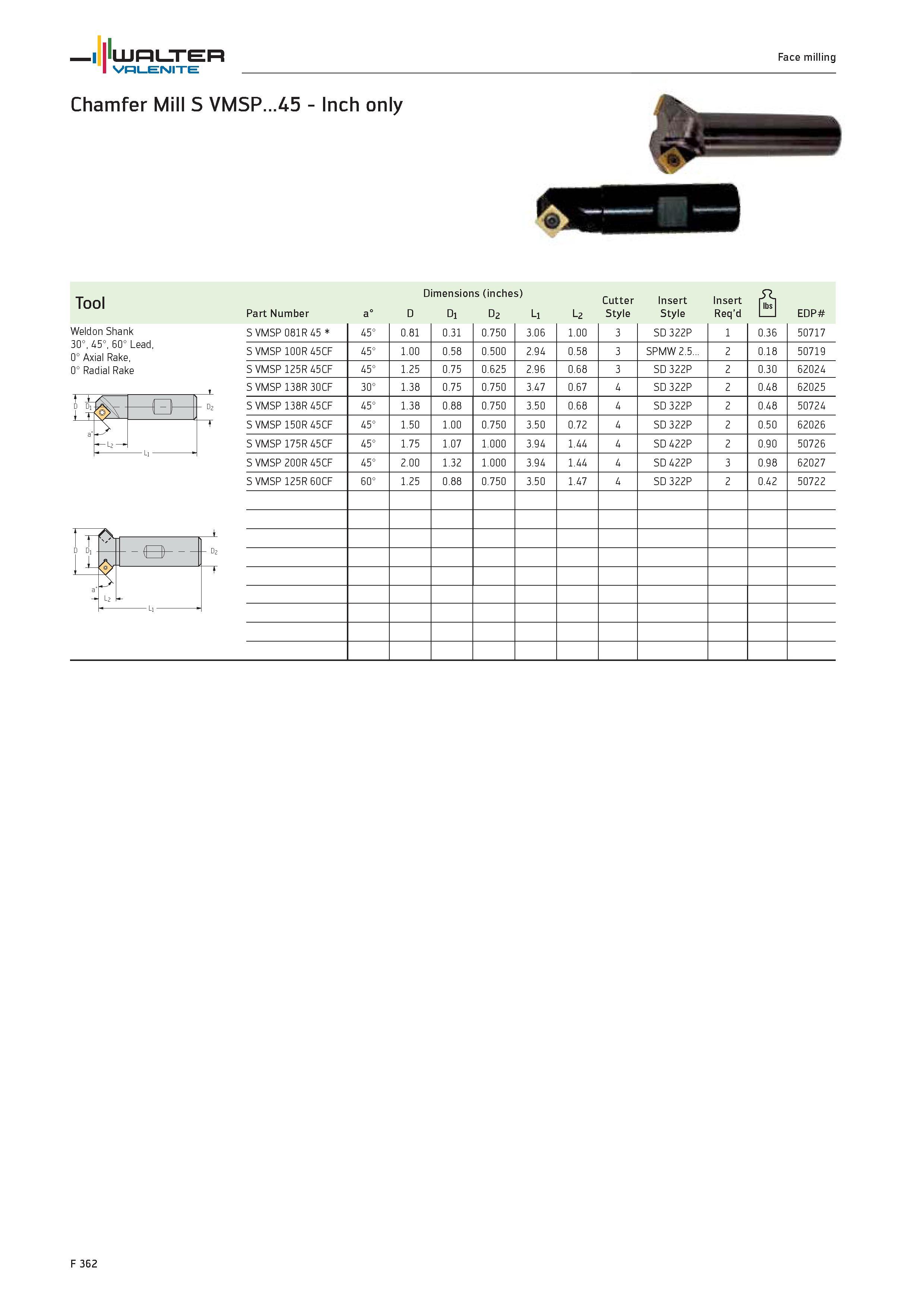

Tool Part Number Dimensions (inches) a° D Di D2 Li L2 Cutter Insert Insert rjbS Style Style Req'd 1 1 EDP Weldon Shank 30°, 45°, 60° Lead, 0° Axial Rake, 0° Radial Rake S VMSP 081R 45 45° 0.81 0.31 0.750 3.06 1.00 3 SD322P 1 0.36 50717 S VMSP 100R 45CF 45° 1.00 0.58 0.500 2.94 0.58 3 SPMW 2.5 2 0.18 50719 S VMSP 125R 45CF 45° 1.25 0.75 0.625 2.96 0.68 3 SD322P 2 0.30 62024 S VMSP 138R 30CF 30° 1.38 0.75 0.750 3.47 0.67 4 SD322P 2 0.48 62025 i t oS'x -Q z S VMSP 138R 45CF 45° 1.38 0.88 0.750 3.50 0.68 4 SD322P 2 0.48 50724 a' > S VMSP 150R 45CF 45° 1.50 1.00 0.750 3.50 0.72 4 SD322P 2 0.50 62026 S VMSP 175R 45CF 45° 1.75 1.07 1.000 3.94 1.44 4 SD 422P 2 0.90 50726 S VMSP 200R 45CF 45° 2.00 1.32 1.000 3.94 1.44 4 SD 422P 3 0.98 62027 S VMSP 125R 60CF 0° 6 1.25 0.88 0.750 3.50 1.47 4 SD322P 2 0.42 50722 r i-L a' h t Lz -2 1 h L F 362
