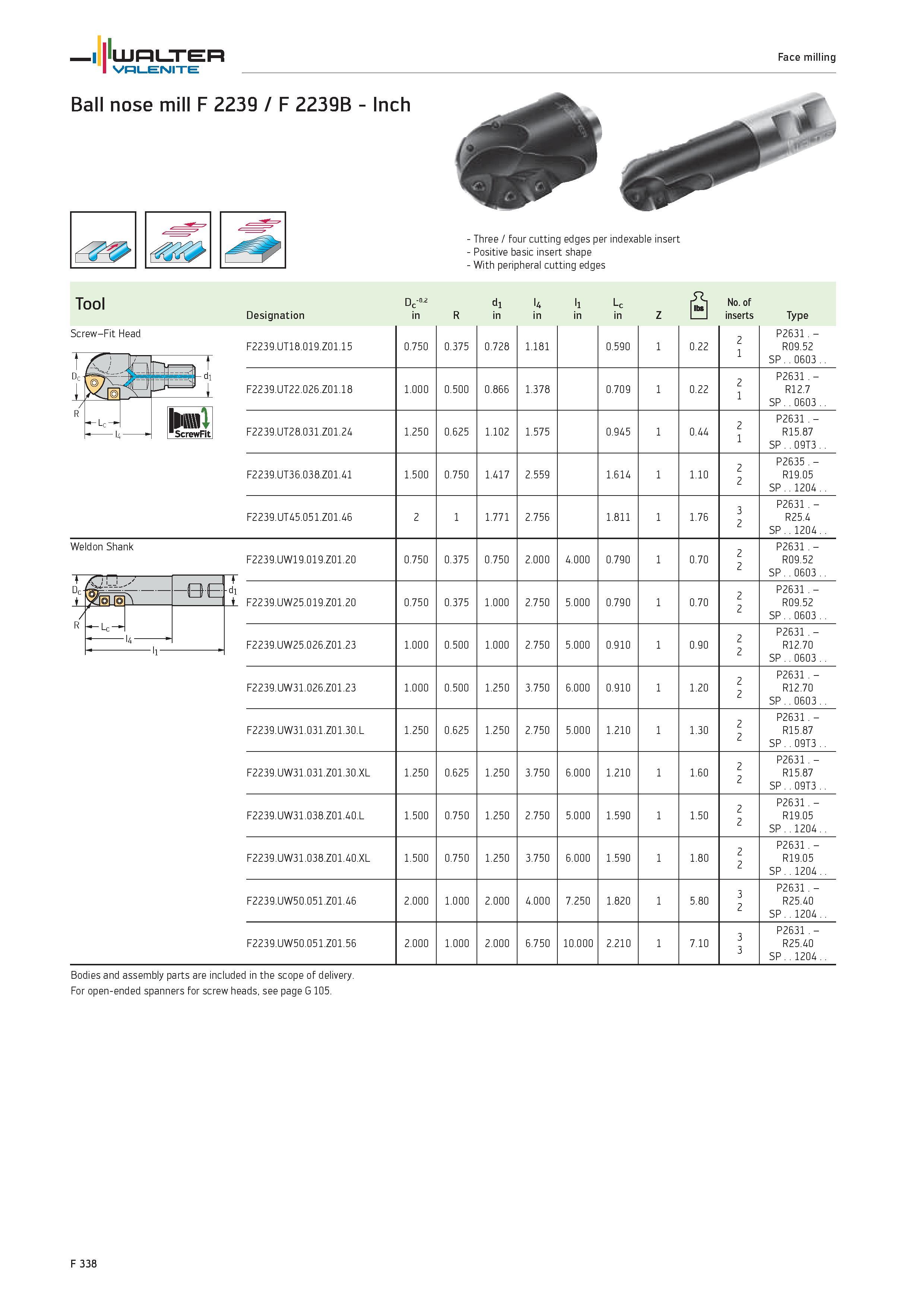

WALTER Valenite Face milling Ball nose mill F 2239 / F 2239B Inch Three / four cutting edges per indexable insert Positive basic insert shape With peripheral cutting edges Tool Dc-02 di U li Lc 2 No. of Designation in R in Z 1 1 inserts Type \im\ ScrewFit F2239.UT18.019.Z01.15 0.750 0.375 0.728 1.181 0.590 1 0.22 2 1 P2631 -R09.52 SP .0603.. F2239.UT22.026.Z01.18 1.000 0.500 0.866 1.378 0.709 1 0.22 2 1 P2631 -R12.7 SP..0603 F2239.UT28.031.Z01.24 1.250 0.625 1.102 1.575 0.945 1 0.44 2 1 P2631 -R15.87 SP..09T3.. F2239.UT36.038.Z01.41 1.500 0.750 1.417 2.559 1.614 1 1.10 2 2 P2635 -R19.05 SP..1204 F2239.UT45.051.Z01.46 2 1 1.771 2.756 1.811 1 1.76 3 2 P2631 -R25.4 SP .1204.. F2239.UW19.019.Z01.20 0.750 0.375 0.750 2.000 4.000 0.790 1 0.70 2 2 P2631 -R09.52 SP .0603.. F2239.UW25.019.Z01.20 0.750 0.375 1.000 2.750 5.000 0.790 1 0.70 2 2 P2631 -R09.52 SP..0603 F2239.UW25.026.Z01.23 1.000 0.500 1.000 2.750 5.000 0.910 1 0.90 2 2 P2631 -R12.70 SP..0603 F2239.UW31.026.Z01.23 1.000 0.500 1.250 3.750 6.000 0.910 1 1.20 2 2 P2631 -R12.70 SP .0603.. F2239.UW31.031.Z01.30.L 1.250 0.625 1.250 2.750 5.000 1.210 1 1.30 2 2 P2631 -R15.87 SP..09T3.. F2239.UW31.031.Z01.30.XL 1.250 0.625 1.250 3.750 6.000 1.210 1 1.60 2 2 P2631 -R15.87 SP..09T3.. F2239.UW31.038.Z01.40.L 1.500 0.750 1.250 2.750 5.000 1.590 1 1.50 2 2 P2631 -R19.05 SP .1204.. F2239.UW31.038.Z01.40.XL 1.500 0.750 1.250 3.750 6.000 1.590 1 1.80 2 2 P2631 -R19.05 SP .1204.. F2239.UW50.051.Z01.46 2.000 1.000 2.000 4.000 7.250 1.820 1 5.80 3 2 P2631 -R25.40 SP .1204.. F2239.UW50.051.Z01.56 2.000 1.000 2.000 6.750 10.000 2.210 1 7.10 3 3 P2631 -R25.40 SP .1204.. Weldon Shank dc -BHE- Bodies and assembly parts are included in the scope of delivery. For open-ended spanners for screw heads, see page G 105. R L F 338
