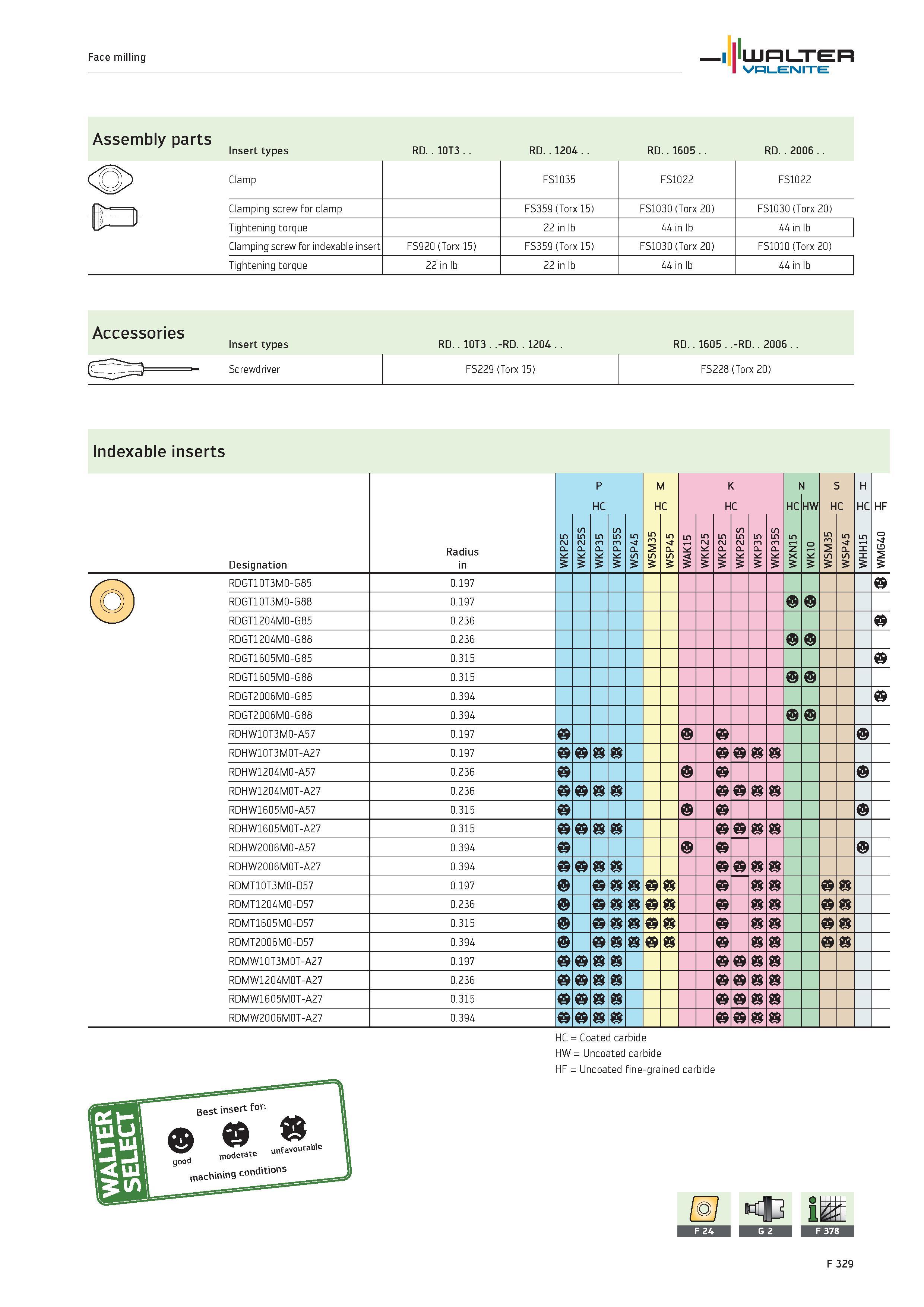

Face milling WALTER Valenite Assembly parts O j Insert types RD. 10T3 RD. 1204 RD. 1605 RD. 2006 Clamp FS1035 FS1022 FS1022 Clamping screw for clamp FS359 (Torx 15) FS1030 (Torx 20) FS1030 (Torx 20) Tightening torque 22 in lb 44 in lb 44 in lb Clamping screw for indexable insert FS920 (Torx 15) FS359 (Torx 15) FS1030 (Torx 20) FS1010 (Torx 20) Tightening torque 22 in lb 22 in lb 44 in lb 44 in lb Accessories Insert types RD. 10T3 .-RD. 1204 RD. 1605 .-RD. 2006 Screwdriver FS229 (Torx 15) FS228 (Torx 20) Indexable inserts Designation Radius in 5 P K WK 5 f>J P K WK P HC 5 m P K WK if) 5 m P K 5 5 P to 5 M H 5 m 2 to 5 WSP45 n 5 1-H K 1 5 K WK K H 5 f>J P K 5 WKP25S n 5 m P K WK S 5 m P K 5 HC 5 1-H z X 5 HW 0 1 K 5 S H 5 m 2 S WS WSP45 n H HC 5 1-H I H 5 HF 0 0 M RDGT10T3M0-G85 0.197 b ( (O) ) RDGT10T3M0-G88 0.197 Vl/ RDGT1204M0-G85 0.236 b RDGT1204M0-G88 0.236 RDGT1605M0-G85 0.315 b RDGT1605M0-G88 0.315 RDGT2006M0-G85 0.394 b RDGT2006M0-G88 0.394 RDHW10T3M0-A57 0.197 RDHW10T3M0T-A27 0.197 RDHW1204M0-A57 0.236 RDHW1204M0T-A27 0.236 RDHW1605M0-A57 0.315 RDHW1605M0T-A27 0.315 RDHW2006M0-A57 0.394 RDHW2006M0T-A27 0.394 RDMT10T3M0-D57 0.197 c c RDMT1204M0-D57 0.236 c c RDMT1605M0-D57 0.315 c c RDMT2006M0-D57 0.394 c c RDMW10T3M0T-A27 0.197 RDMW1204M0T-A27 0.236 RDMW1605M0T-A27 0.315 RDMW2006M0T-A27 0.394 HC Coated carbide HW Uncoated carbide HF Uncoated fine-grained carbide Best insert for A unfavourable good moderate machining conditions O h Qi F 329
