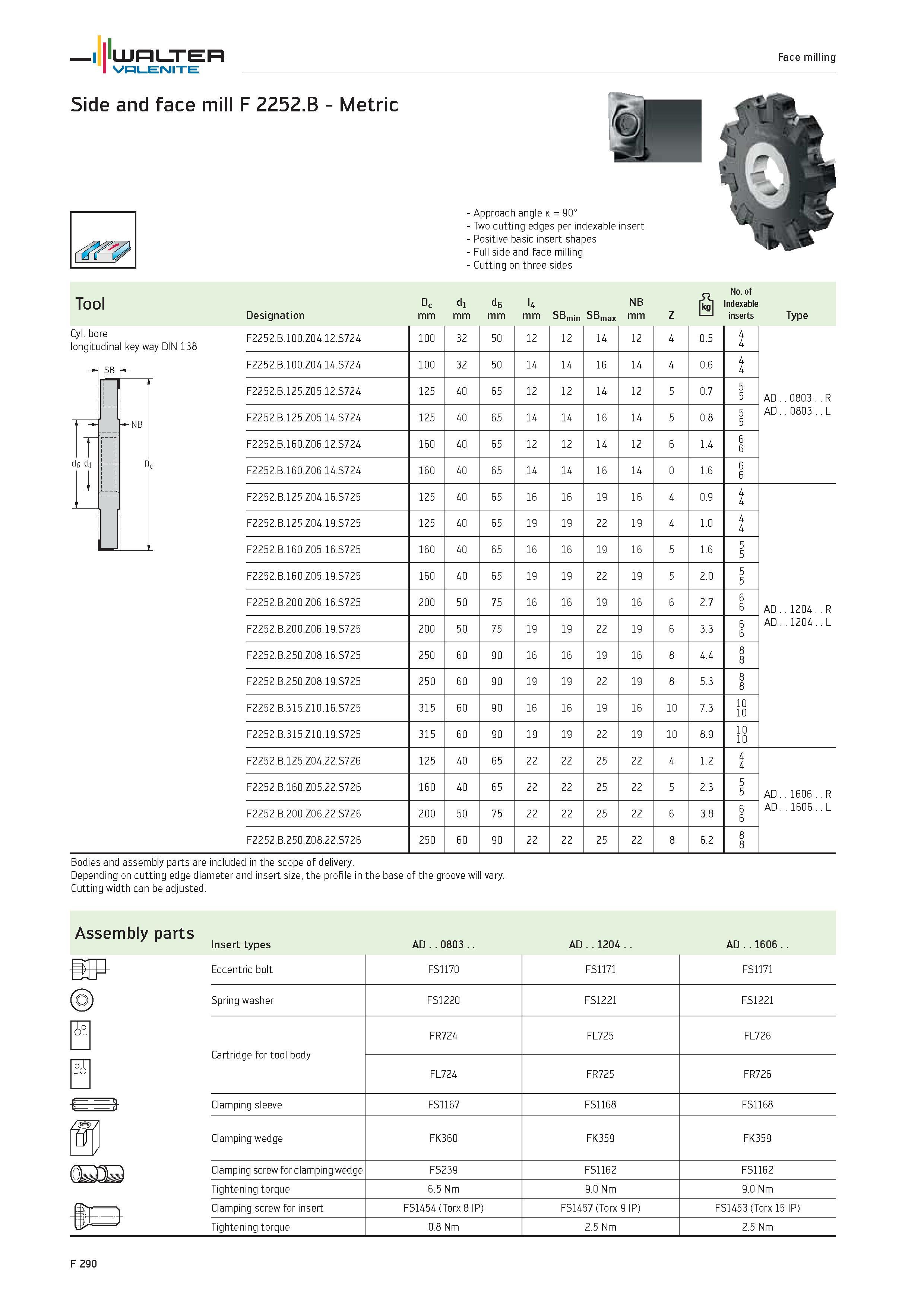

WALTER Valenite Face milling Side and face mill F 2252.B Metric Tool Cyl. bore longitudinal key way DIN 138 d6 di f u Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Full side and face milling Cutting on three sides Designation Dc mm di mm d6 mm U mm SBmin SBmax NB mm Z S No. of ndexable inserts Type F2252.B.100.Z04.12.S724 100 32 50 12 12 14 12 4 0.5 4 4 F2252.B.100.Z04.14.S724 100 32 50 14 14 16 14 4 0.6 4 4 F2252.B.125.Z05.12.S724 125 40 65 12 12 14 12 5 0.7 5 5 AD 0803 R F2252.B.125.Z05.14.S724 125 40 65 14 14 16 14 5 0.8 5 5 AD 0803 L F2252.B.160.Z06.12.S724 160 40 65 12 12 14 12 6 1.4 6 6 F2252.B.160.Z06.14.S724 160 40 65 14 14 16 14 0 1.6 6 6 F2252.B.125.Z04.16.S725 125 40 65 16 16 19 16 4 0.9 4 4 F2252.B.125.Z04.19.S725 125 40 65 19 19 22 19 4 1.0 4 4 F2252.B.160.Z05.16.S725 160 40 65 16 16 19 16 5 1.6 5 5 F2252.B.160.Z05.19.S725 160 40 65 19 19 22 19 5 2.0 5 5 F2252.B.200.Z06.16.S725 200 50 75 16 16 19 16 6 2.7 6 6 AD .1204. R F2252.B.200.Z06.19.S725 200 50 75 19 19 22 19 6 3.3 6 6 AD .1204. L F2252.B.250.Z08.16.S725 250 60 90 16 16 19 16 8 4.4 8 8 F2252.B.250.Z08.19.S725 250 60 90 19 19 22 19 8 5.3 8 8 F2252.B.315.Z10.16.S725 315 60 90 16 16 19 16 10 7.3 10 10 F2252.B.315.Z10.19.S725 315 60 90 19 19 22 19 10 8.9 10 10 F2252.B.125.Z04.22.S726 125 40 65 22 22 25 22 4 1.2 4 4 F2252.B.160.Z05.22.S726 160 40 65 22 22 25 22 5 2.3 5 5 AD 1606 R F2252.B.200.Z06.22.S726 200 50 75 22 22 25 22 6 3.8 6 6 AD 1606 L F2252.B.250.Z08.22.S726 250 60 90 22 22 25 22 8 6.2 8 8 Bodies and assembly parts are included in the scope of delivery. Depending on cutting edge diameter and insert size, the profile in the base of the groove will vary. Cutting width can be adjusted. SB NB D Assembly parts Insert types AD ..0803 AD..1204.. AD 1606 Eccentric bolt FS1170 FS1171 FS1171 Spring washer FS1220 FS1221 FS1221 Cartridge for tool body FR724 FL725 FL726 FL724 FR725 FR726 Clamping sleeve FS1167 FS1168 FS1168 Clamping wedge FK360 FK359 FK359 Clamping screw for clamping wedge FS239 FS1162 FS1162 Tightening torque 6.5 Nm 9.0 Nm 9.0 Nm Clamping screw for insert FS1454 (Torx 8 IP) FS1457 (Torx 9 IP) FS1453 (Torx 15 IP) Tightening torque 0.8 Nm 2.5 Nm 2.5 Nm F 290
