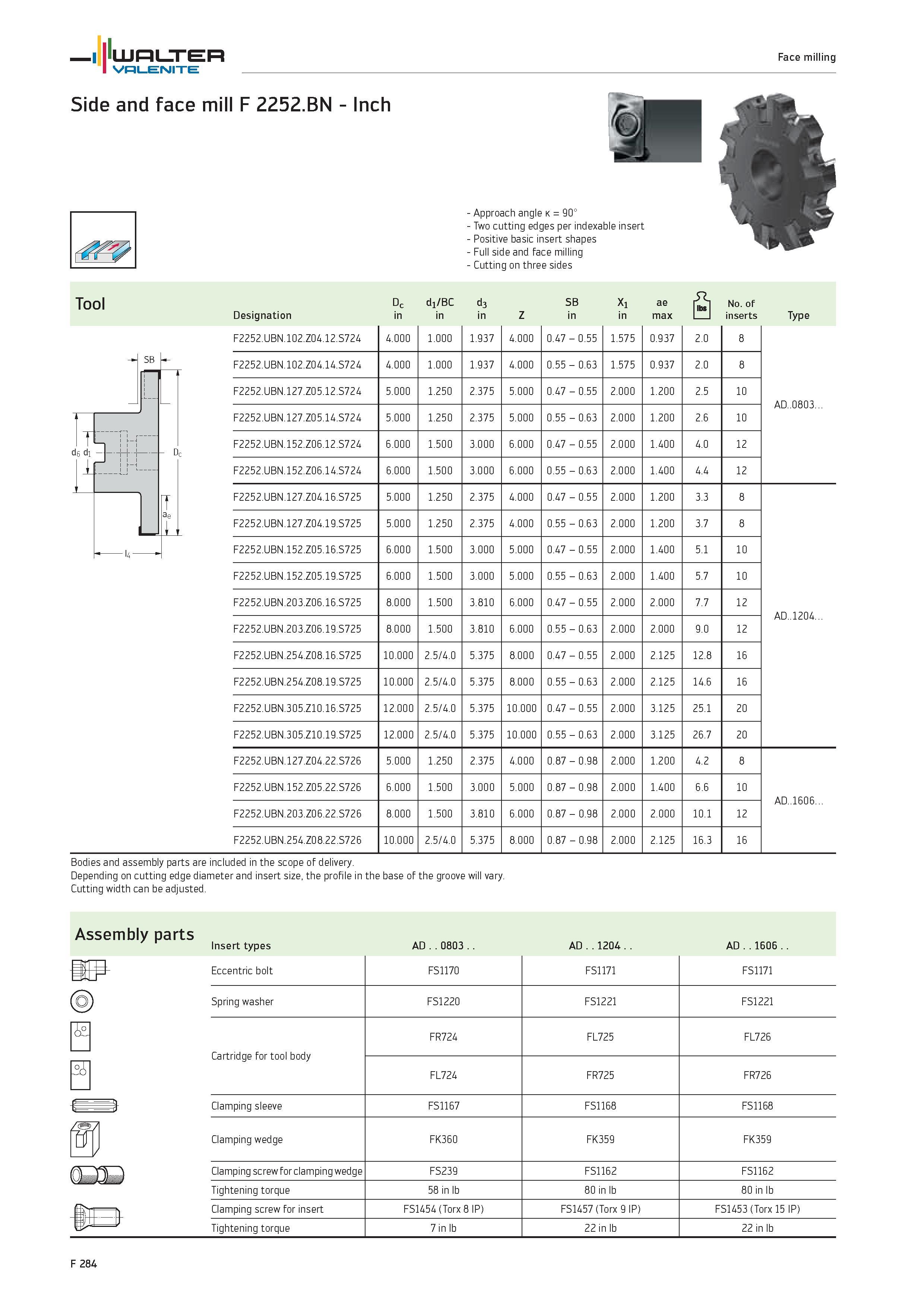

WALTER Valenite Face milling Side and face mill F 2252.BN Inch Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Full side and face milling Cutting on three sides Tool Dc d1/BC d3 SB X1 ae t No. of Designation in Z in max L l inserts Type F2252.UBN.102.Z04.12.S724 4.000 1.000 1.937 4.000 0.47 0.55 1.575 0.937 2.0 8 AD..0803 F2252.UBN.102.Z04.14.S724 4.000 1.000 1.937 4.000 0.55 0.63 1.575 0.937 2.0 8 F2252.UBN.127.Z05.12.S724 5.000 1.250 2.375 5.000 0.47 0.55 2.000 1.200 2.5 10 F2252.UBN.127.Z05.14.S724 5.000 1.250 2.375 5.000 0.55 0.63 2.000 1.200 2.6 10 F2252.UBN.152.Z06.12.S724 6.000 1.500 3.000 6.000 0.47 0.55 2.000 1.400 4.0 12 F2252.UBN.152.Z06.14.S724 6.000 1.500 3.000 6.000 0.55 0.63 2.000 1.400 4.4 12 F2252.UBN.127.Z04.16.S725 5.000 1.250 2.375 4.000 0.47 0.55 2.000 1.200 3.3 8 AD..1204 F2252.UBN.127.Z04.19.S725 5.000 1.250 2.375 4.000 0.55 0.63 2.000 1.200 3.7 8 F2252.UBN.152.Z05.16.S725 6.000 1.500 3.000 5.000 0.47 0.55 2.000 1.400 5.1 10 F2252.UBN.152.Z05.19.S725 6.000 1.500 3.000 5.000 0.55 0.63 2.000 1.400 5.7 10 F2252.UBN.203.Z06.16.S725 8.000 1.500 3.810 6.000 0.47 0.55 2.000 2.000 7.7 12 F2252.UBN.203.Z06.19.S725 8.000 1.500 3.810 6.000 0.55 0.63 2.000 2.000 9.0 12 F2252.UBN.254.Z08.16.S725 10.000 2.5/4.0 5.375 8.000 0.47 0.55 2.000 2.125 12.8 16 F2252.UBN.254.Z08.19.S725 10.000 2.5/4.0 5.375 8.000 0.55 0.63 2.000 2.125 14.6 16 F2252.UBN.305.Z10.16.S725 12.000 2.5/4.0 5.375 10.000 0.47 0.55 2.000 3.125 25.1 20 F2252.UBN.305.Z10.19.S725 12.000 2.5/4.0 5.375 10.000 0.55 0.63 2.000 3.125 26.7 20 F2252.UBN.127.Z04.22.S726 5.000 1.250 2.375 4.000 0.87 0.98 2.000 1.200 4.2 8 AD..1606 F2252.UBN.152.Z05.22.S726 6.000 1.500 3.000 5.000 0.87 0.98 2.000 1.400 6.6 10 F2252.UBN.203.Z06.22.S726 8.000 1.500 3.810 6.000 0.87 0.98 2.000 2.000 10.1 12 F2252.UBN.254.Z08.22.S726 10.000 2.5/4.0 5.375 8.000 0.87 0.98 2.000 2.125 16.3 16 Bodies and assembly parts are included in the scope of delivery. Depending on cutting edge diameter and insert size, the profile in the base of the groove will vary. Cutting width can be adjusted. Assembly parts Insert types AD 0803 AD 1204 AD 1606 Eccentric bolt FS1170 FS1171 FS1171 Spring washer FS1220 FS1221 FS1221 Cartridge for tool body FR724 FL725 FL726 FL724 FR725 FR726 Clamping sleeve FS1167 FS1168 FS1168 Clamping wedge FK360 FK359 FK359 Clamping screw for clamping wedge FS239 FS1162 FS1162 Tightening torque 58 in lb 80 in lb 80 in lb Clamping screw for insert FS1454 (Torx 8 IP) FS1457 (Torx 9 IP) FS1453 (Torx 15 IP) Tightening torque 7 in lb 22 in lb 22 in lb F 284
