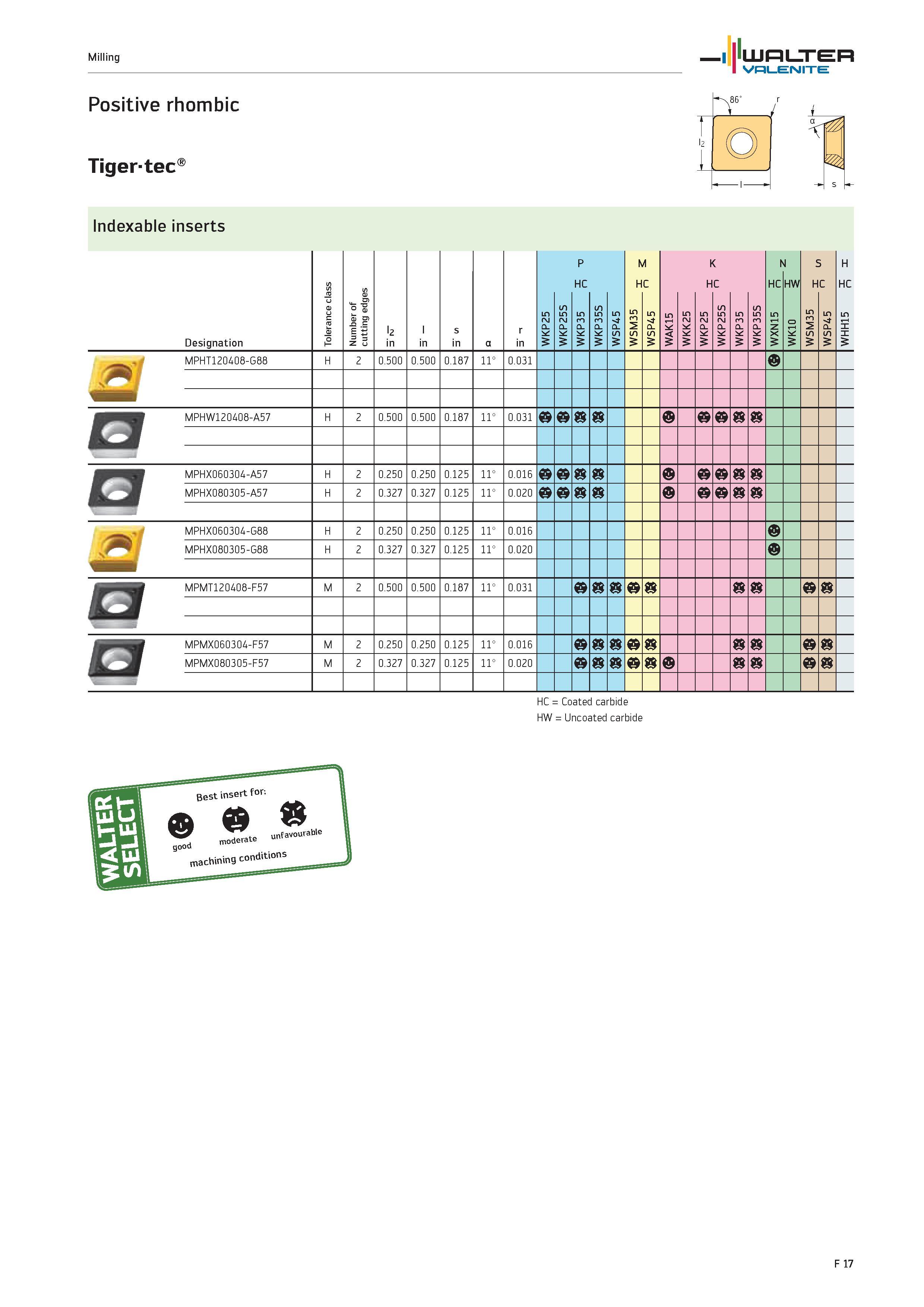

Milling WALTER Valenite Positive rhombic Tigertec Indexable inserts Designation Tolerance class Number of cutting edges l2 in l in s in a r in 5 P K W i/i 5 P K W P HC 5 m P K W WKP35S 5 P S W H 5 m 2 S W WSP45 n WAK15 WKK25 K H 5 P K 5 WKP25S n WKP35 WKP35S HC 5 l-H z X 5 HW o 1 K 5 S H 5 m 2 S W WSP45 n H HC 5 l-H I H W MPHT120408-G88 H 2 0.500 0.500 0.187 11° 0.031 a MPHW120408-A57 H 2 0.500 0.500 0.187 11° 0.031 b MPHX060304-A57 H 2 0.250 0.250 0.125 11° 0.016 b MPHX080305-A57 H 2 0.327 0.327 0.125 11° 0.020 b MPHX060304-G88 H 2 0.250 0.250 0.125 11° 0.016 a MPHX080305-G88 H 2 0.327 0.327 0.125 11° 0.020 a MPMT120408-F57 M 2 0.500 0.500 0.187 11° 0.031 c MPMX060304-F57 M 2 0.250 0.250 0.125 11° 0.016 c MPMX080305-F57 M 2 0.327 0.327 0.125 11° 0.020 o o o HC Coated carbide HW Uncoated carbide s Best insert for A wa.P unfavourable good moderate machining conditions F 17
