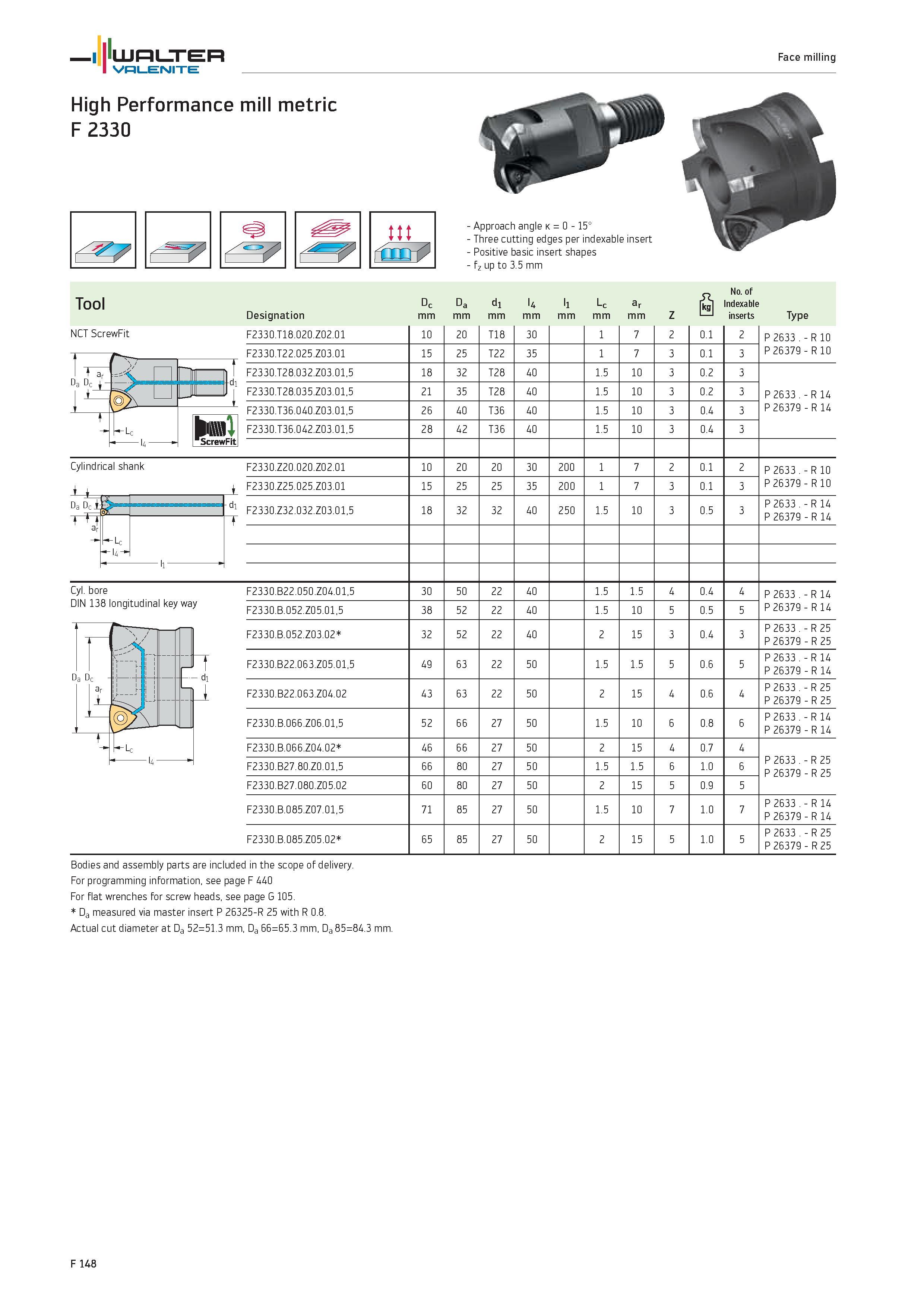

WALTER Valenite Face milling High Performance mill metric F 2330 ttt Approach angle k 0 15° Three cutting edges per indexable insert Positive basic insert shapes fz up to 3.5 mm No. of Tool Dc Da d1 l4 l1 Lc ar kgl Indexable Designation mm Z inserts Type NCT ScrewFit F2330.T18.020.Z02.01 10 20 T18 30 1 7 2 0.1 2 P 2633. R10 P 26379 -R10 F2330.T22.025.Z03.01 15 25 T22 35 1 7 3 0.1 3 F2330.T28.032.Z03.01,5 18 32 T28 40 1.5 10 3 0.2 3 P2633.-R14 P 26379 -R14 F2330.T28.035.Z03.01,5 21 35 T28 40 1.5 10 3 0.2 3 F2330.T36.040.Z03.01,5 26 40 T36 40 1.5 10 3 0.4 3 F2330.T36.042.Z03.01,5 28 42 T36 40 1.5 10 3 0.4 3 F2330.Z20.020.Z02.01 10 20 20 30 200 1 7 2 0.1 2 P 2633. R10 P 26379 R10 F2330.Z25.025.Z03.01 15 25 25 35 200 1 7 3 0.1 3 F2330.Z32.032.Z03.01,5 18 32 32 40 250 1.5 10 3 0.5 3 P2633.-R14 P 26379 R 14 F2330.B22.050.Z04.01,5 30 50 22 40 1.5 1.5 4 0.4 4 P 2633. R14 P 26379 -R14 F2330.B.052.Z05.01,5 38 52 22 40 1.5 10 5 0.5 5 F2330.B.052.Z03.02 32 52 22 40 2 15 3 0.4 3 P2633.-R25 P 26379 R 25 F2330.B22.063.Z05.01,5 49 63 22 50 1.5 1.5 5 0.6 5 P2633.-R14 P 26379 R 14 F2330.B22.063.Z04.02 43 63 22 50 2 15 4 0.6 4 P2633.-R25 P 26379 R 25 F2330.B.066.Z06.01,5 52 66 27 50 1.5 10 6 0.8 6 P2633.-R14 P 26379 R 14 F2330.B.066.Z04.02 46 66 27 50 2 15 4 0.7 4 P 2633.-R 25 P 26379 R 25 F2330.B27.80.Z0.01,5 66 80 27 50 1.5 1.5 6 1.0 6 F2330.B27.080.Z05.02 60 80 27 50 2 15 5 0.9 5 F2330.B.085.Z07.01,5 71 85 27 50 1.5 10 7 1.0 7 P 2633.-R14 P 26379 -R14 F2330.B.085.Z05.02 65 85 27 50 2 15 5 1.0 5 P 2633 R 25 P 26379 R 25 Cylindrical shank Da Dc Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. For programming information, see page F 440 For flat wrenches for screw heads, see page G 105. Da measured via master insert P 26325-R 25 with R 0.8. Actual cut diameter at Da 52=51.3 mm, Da 66=65.3 mm, Da 85=84.3 mm. F 148
