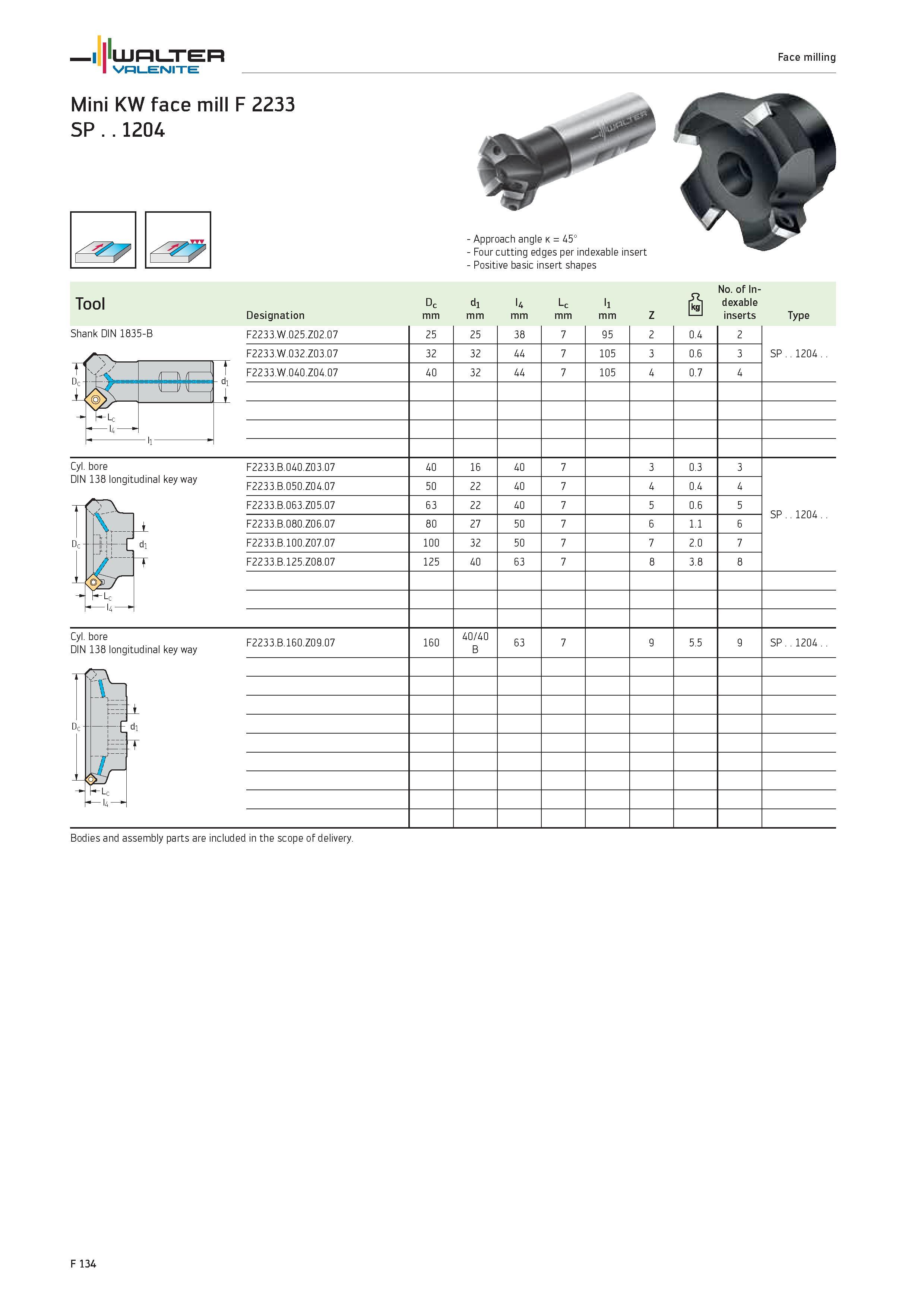

WALTER Valenite Face milling Mini KW face mill F 2233 SP ..1204 Shank DIN 1835-B Approach angle k 45° Four cutting edges per indexable insert Positive basic insert shapes No. of In- Tool Dc di l4 Lc li Ikgl dexable Designation mm Z 1 1 inserts Type F2233.W.025.Z02.07 25 25 38 7 95 2 0.4 2 SP..1204 F2233.W.032.Z03.07 32 32 44 7 105 3 0.6 3 F2233.W.040.Z04.07 40 32 44 7 105 4 0.7 4 F2233.B.040.Z03.07 40 16 40 7 3 0.3 3 SP..1204 F2233.B.050.Z04.07 50 22 40 7 4 0.4 4 F2233.B.063.Z05.07 63 22 40 7 5 0.6 5 F2233.B.080.Z06.07 80 27 50 7 6 1.1 6 F2233.B.100.Z07.07 100 32 50 7 7 2.0 7 F2233.B.125.Z08.07 125 40 63 7 8 3.8 8 F2233.B.160.Z09.07 160 40/40 B 63 7 9 5.5 9 SP..1204 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. F 134
