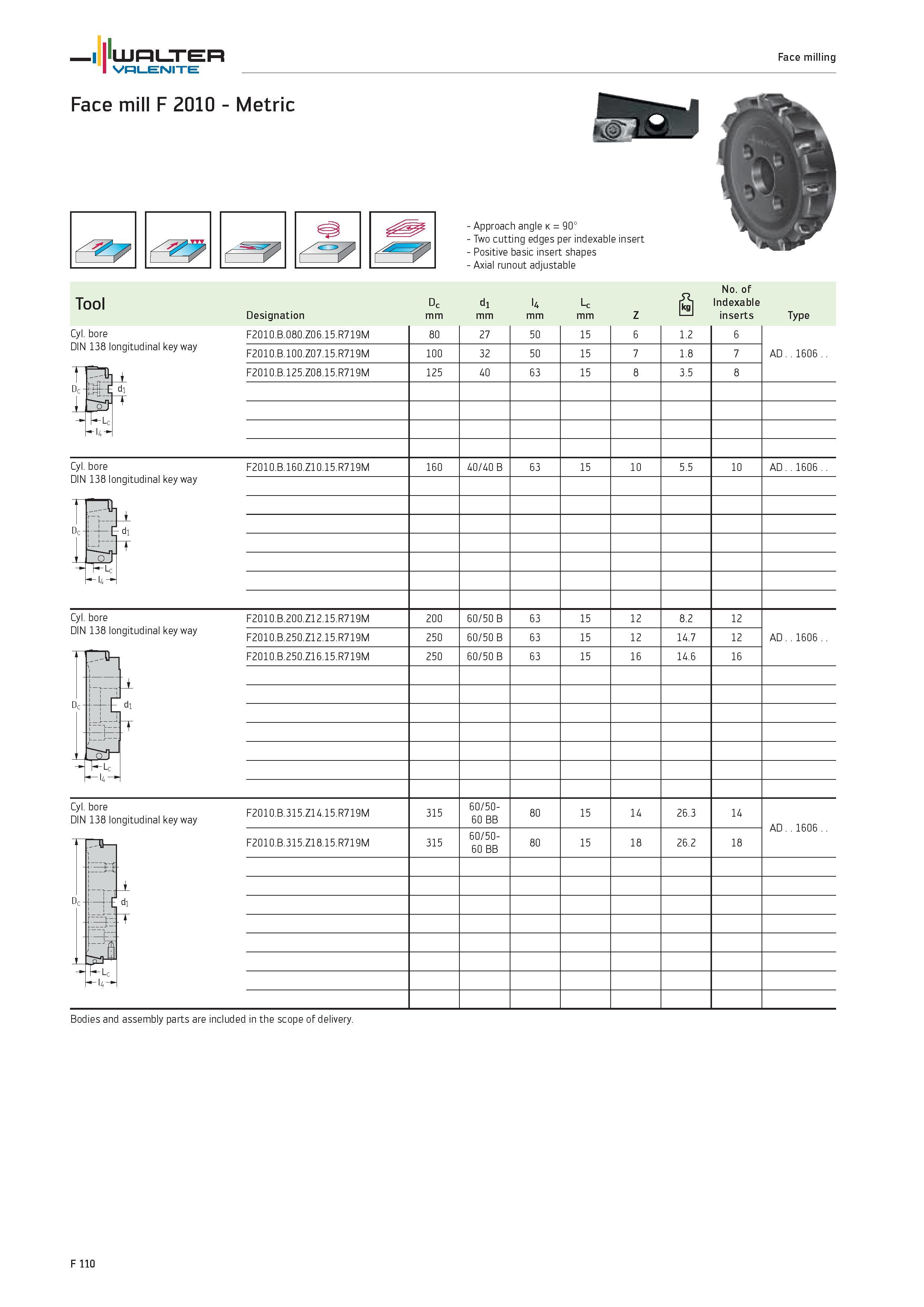

WALTER Valenite Face milling Face mill F 2010 Metric Cyl. bore DIN 138 longitudinal key way -7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Axial runout adjustable No. of Tool Dc di u Lc Ikgl Indexable Designation mm Z Lll inserts Type F2010.B.080.Z06.15.R719M 80 27 50 15 6 1.2 6 AD..1606. F2010.B.100.Z07.15.R719M 100 32 50 15 7 1.8 7 F2010.B.125.Z08.15.R719M 125 40 63 15 8 3.5 8 F2010.B.160.Z10.15.R719M 160 40/40 B 63 15 10 5.5 10 AD..1606. F2010.B.200.Z12.15.R719M 200 60/50 B 63 15 12 8.2 12 AD..1606. F2010.B.250.Z12.15.R719M 250 60/50 B 63 15 12 14.7 12 F2010.B.250.Z16.15.R719M 250 60/50 B 63 15 16 14.6 16 F2010.B.315.Z14.15.R719M 315 60/5060 BB 80 15 14 26.3 14 AD..1606. F2010.B.315.Z18.15.R719M 315 60/5060 BB 80 15 18 26.2 18 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. F 110
