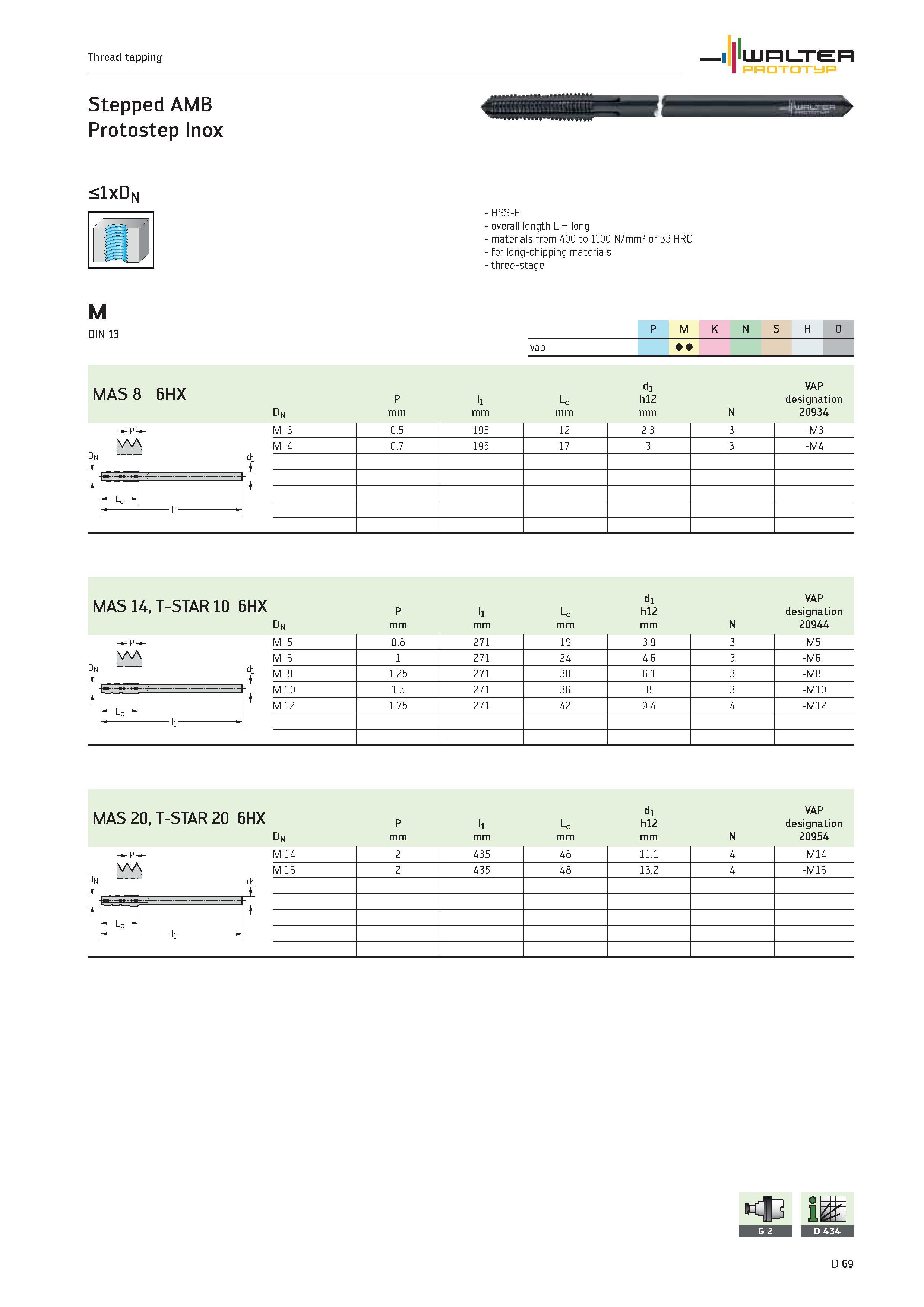

Thread tapping WALTER PROTOTYP Stepped AMB Protostep Inox <1xDN HSS-E overall length L long materials from 400 to 1100 N/mm2 or 33 HRC for long-chipping materials three-stage M DIN 13 P M K N S H O vap MAS 8 6HX P ll Lc di h12 VAP designation dn mm N 20934 Dn M 3 0.5 195 12 2.3 3 -M3 M 4 0.7 195 17 3 3 -M4 L MAS 14, T-STAR 10 6HX P l1 Lc d1 h12 VAP designation Dn mm N 20944 Dn L M 5 0.8 271 19 3.9 3 -M5 M 6 1 271 24 4.6 3 -M6 M 8 1.25 271 30 6.1 3 -M8 M 10 1.5 271 36 8 3 -M10 M 12 1.75 271 42 9.4 4 -M12 L MAS 20, T-STAR 20 6HX dn P mm l1 mm Lc mm d1 h12 mm N VAP designation 20954 Dn ft M 14 2 435 48 11.1 4 -M14 M 16 2 435 48 13.2 4 -M16 di A “ Lc T ll D 69
