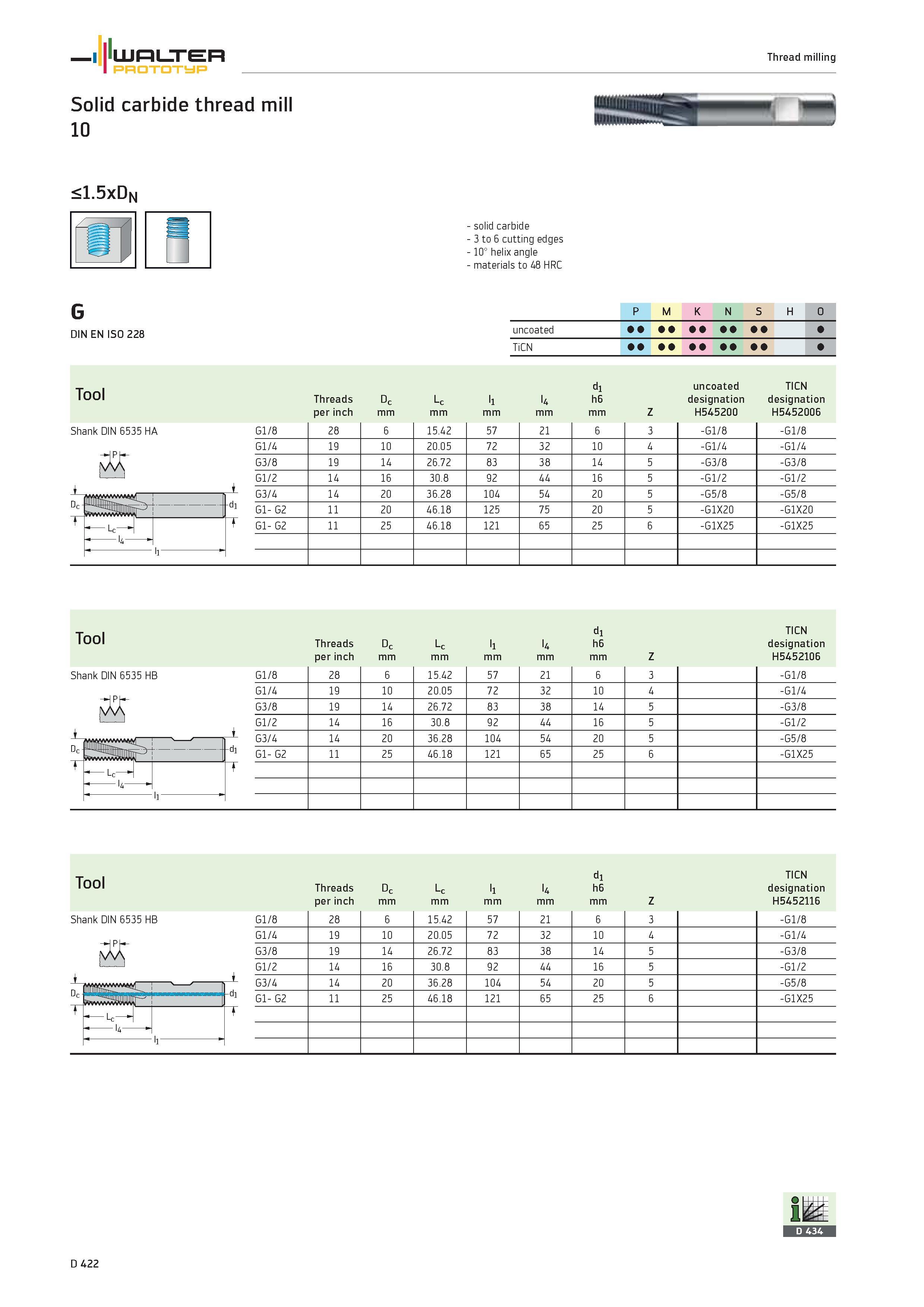

WALTER PROTOTYP Thread milling Solid carbide thread mill 10 <1.5xDn solid carbide 3 to 6 cutting edges 10° helix angle materials to 48 HRC G DIN EN ISO 228 Shank DIN 6535 HA 1 P M K N S H O uncoated TiCN Tool d1 uncoated TICN Threads Dc Lc l1 U h6 designation designation per inch mm Z H545200 H5452006 G1/8 28 6 15.42 57 21 6 3 -G1/8 -G1/8 G1/4 19 10 20.05 72 32 10 4 -G1/4 -G1/4 G3/8 19 14 26.72 83 38 14 5 -G3/8 -G3/8 G1/2 14 16 30.8 92 44 16 5 -G1/2 -G1/2 G3/4 14 20 36.28 104 54 20 5 -G5/8 -G5/8 G1- G2 11 20 46.18 125 75 20 5 -G1X20 -G1X20 G1- G2 11 25 46.18 121 65 25 6 -G1X25 -G1X25 Tool Threads Dc Lc l1 u 16 dh TICN designation per inch mm Z H5452106 Shank DIN 6535 HB -d Lc n t l4 li G1/8 28 6 15.42 57 21 6 3 -G1/8 G1/4 19 10 20.05 72 32 10 4 -G1/4 G3/8 19 14 26.72 83 38 14 5 -G3/8 G1/2 14 16 30.8 92 44 16 5 -G1/2 G3/4 14 20 36.28 104 54 20 5 -G5/8 G1- G2 11 25 46.18 121 65 25 6 -G1X25 Tool Threads Dc Lc l1 l4 d1 h6 TICN designation per inch mm Z H5452116 Shank DIN 6535 HB G1/8 28 6 15.42 57 21 6 3 -G1/8 G1/4 19 10 20.05 72 32 10 4 -G1/4 G3/8 19 14 26.72 83 38 14 5 -G3/8 G1/2 14 16 30.8 92 44 16 5 -G1/2 G3/4 14 20 36.28 104 54 20 5 -G5/8 G1- G2 11 25 46.18 121 65 25 6 -G1X25 MilW
