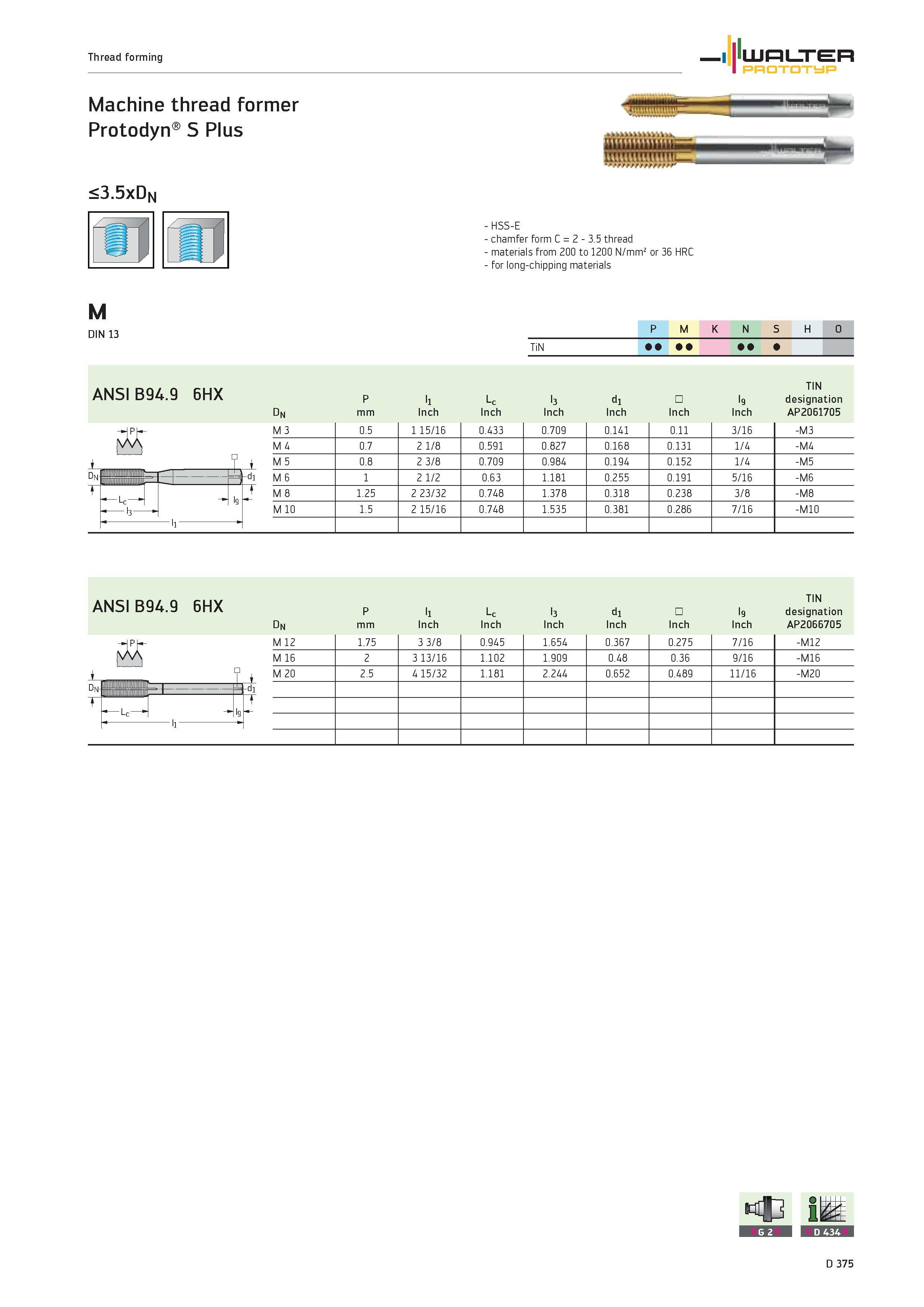

Thread forming WALTER PROTOTYP Machine thread former Protodyn S Plus <3.5xDn HSS-E chamfer form C 2 3.5 thread materials from 200 to 1200 N/mm2 or 36 HRC for long-chipping materials M DIN 13 1 P M K N S H O TiN 1 ANSI B94.9 6HX dn P mm l1 Inch Lc Inch l3 Inch d1 Inch Inch l9 Inch TIN designation AP2061705 I A Z M 3 0.5 1 15/16 0.433 0.709 0.141 0.11 3/16 -M3 M 4 0.7 2 1/8 0.591 0.827 0.168 0.131 1/4 -M4 M 5 0.8 2 3/8 0.709 0.984 0.194 0.152 1/4 -M5 Dn i) III H 4 hdi M 6 1 2 1/2 0.63 1.181 0.255 0.191 5/16 -M6 M 8 1.25 2 23/32 0.748 1.378 0.318 0.238 3/8 -M8 l3 M 10 1.5 2 15/16 0.748 1.535 0.381 0.286 7/16 -M10 ii ANSI B94.9 6HX Dn P mm l1 Inch Lc Inch l3 Inch d1 Inch Inch l9 Inch TIN designation AP2066705 A z M 12 1.75 3 3/8 0.945 1.654 0.367 0.275 7/16 -M12 M 16 2 313/16 1.102 1.909 0.48 0.36 9/16 -M16 M 20 2.5 415/32 1.181 2.244 0.652 0.489 11/16 -M20 Dn- 1 pdi T ii D 375
