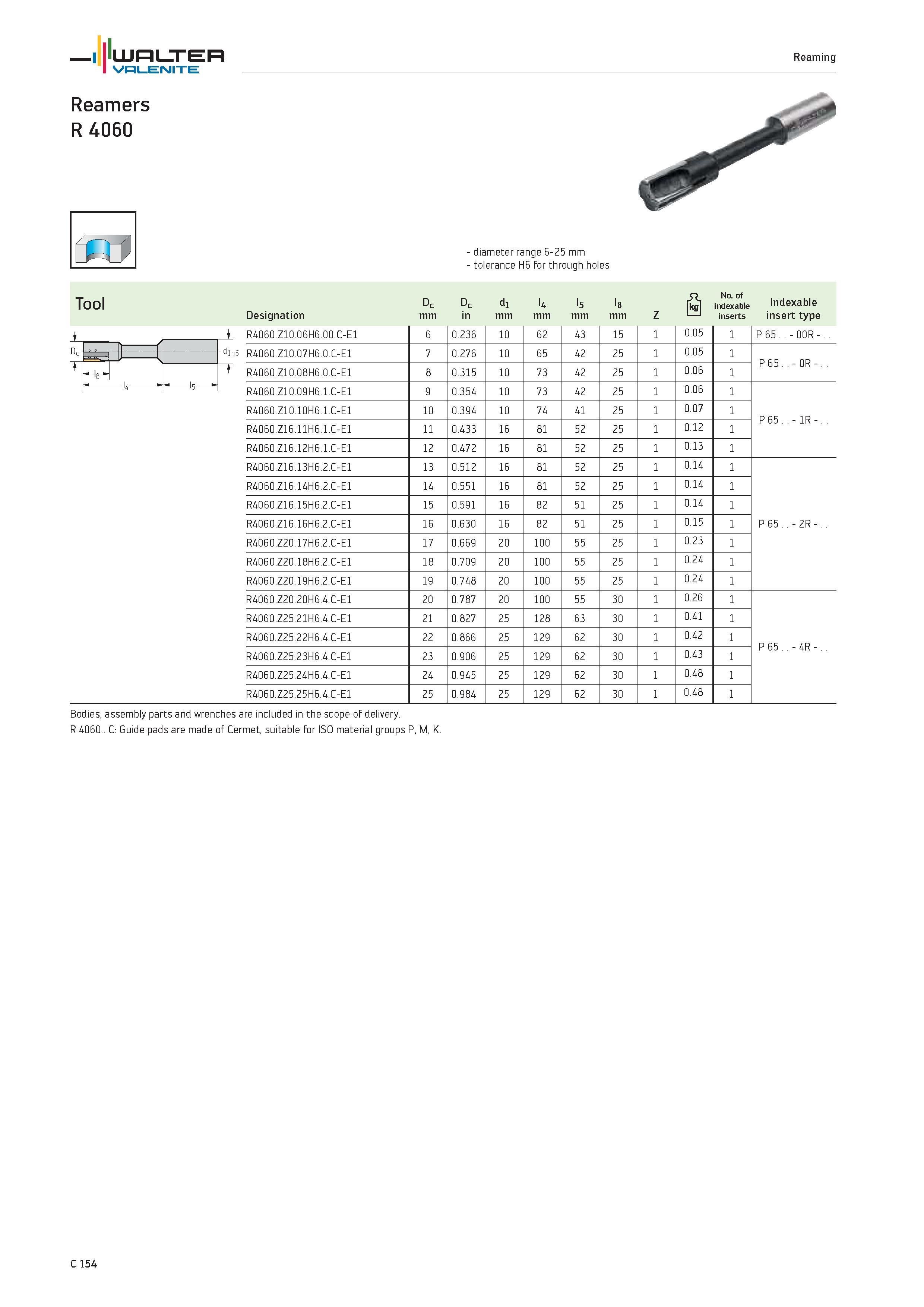

WALTER Valenite Reaming Reamers R 4060 diameter range 6-25 mm tolerance H6 for through holes Tool Designation Dc mm Dc in dl mm l4 mm l5 mm l8 mm Z S No. of indexable inserts Indexable insert type R4060.Z10.06H6.00.C-E1 6 0.236 10 62 43 15 1 0.05 1 P 65..- 00R R4060.Z10.07H6.0.C-E1 7 0.276 10 65 42 25 1 0.05 1 P 65 0R R4060.Z10.08H6.0.C-E1 8 0.315 10 73 42 25 1 0.06 1 R4060.Z10.09H6.1.C-E1 9 0.354 10 73 42 25 1 0.06 1 R4060.Z10.10H6.1.C-E1 10 0.394 10 74 41 25 1 0.07 1 P65..-1R R4060.Z16.11H6.1.C-E1 11 0.433 16 81 52 25 1 0.12 1 R4060.Z16.12H6.1.C-E1 12 0.472 16 81 52 25 1 0.13 1 R4060.Z16.13H6.2.C-E1 13 0.512 16 81 52 25 1 0.14 1 R4060.Z16.14H6.2.C-E1 14 0.551 16 81 52 25 1 0.14 1 R4060.Z16.15H6.2.C-E1 15 0.591 16 82 51 25 1 0.14 1 R4060.Z16.16H6.2.C-E1 16 0.630 16 82 51 25 1 0.15 1 P65. 2R R4060.Z20.17H6.2.C-E1 17 0.669 20 100 55 25 1 0.23 1 R4060.Z20.18H6.2.C-E1 18 0.709 20 100 55 25 1 0.24 1 R4060.Z20.19H6.2.C-E1 19 0.748 20 100 55 25 1 0.24 1 R4060.Z20.20H6.4.C-E1 20 0.787 20 100 55 30 1 0.26 1 R4060.Z25.21H6.4.C-E1 21 0.827 25 128 63 30 1 0.41 1 R4060.Z25.22H6.4.C-E1 22 0.866 25 129 62 30 1 0.42 1 P 65 4R R4060.Z25.23H6.4.C-E1 23 0.906 25 129 62 30 1 0.43 1 R4060.Z25.24H6.4.C-E1 24 0.945 25 129 62 30 1 0.48 1 R4060.Z25.25H6.4.C-E1 25 0.984 25 129 62 30 1 0.48 1 Bodies, assembly parts and wrenches are included in the scope of delivery. R 4060.. C Guide pads are made of Cermet, suitable for ISO material groups P, M, K. D C 154
