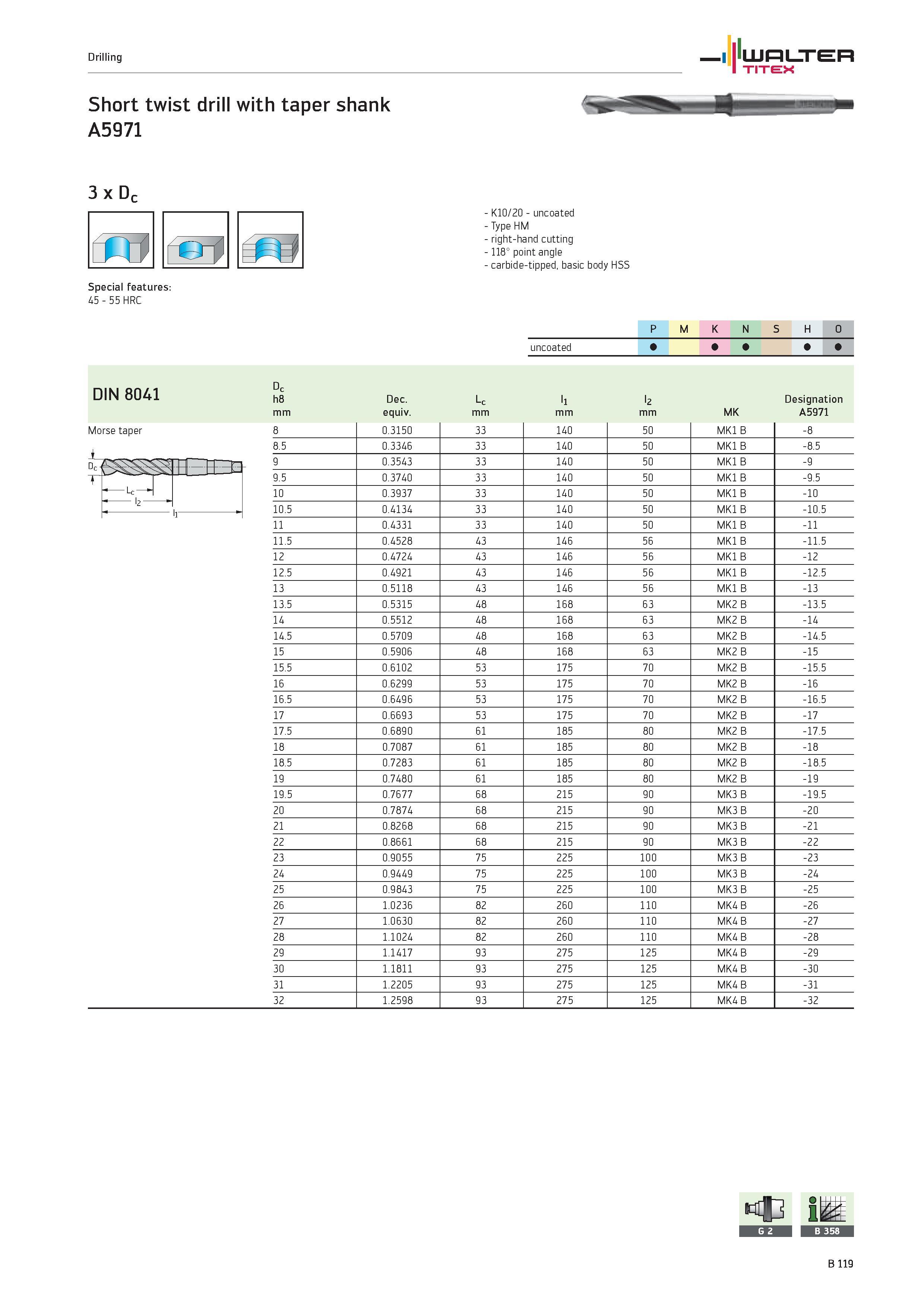

Drilling WALTER TITEX Short twist drill with taper shank A5971 3 x Dc re Special features 45 55 HRC K10/20 uncoated Type HM right-hand cutting 118° point angle carbide-tipped, basic body HSS 1 P M K N S H O uncoated DIN 8041 Morse taper TT FF Lc l2- ii h8 Dec. Lc l1 l2 Designation mm equiv. mm MK A5971 8 0.3150 33 140 50 MK1 B -8 8.5 0.3346 33 140 50 MK1 B -8.5 9 0.3543 33 140 50 MK1 B -9 9.5 0.3740 33 140 50 MK1 B -9.5 10 0.3937 33 140 50 MK1 B -10 10.5 0.4134 33 140 50 MK1 B -10.5 11 0.4331 33 140 50 MK1 B -11 11.5 0.4528 43 146 56 MK1 B -11.5 12 0.4724 43 146 56 MK1 B -12 12.5 0.4921 43 146 56 MK1 B -12.5 13 0.5118 43 146 56 MK1 B -13 13.5 0.5315 48 168 63 MK2 B -13.5 14 0.5512 48 168 63 MK2 B -14 14.5 0.5709 48 168 63 MK2 B -14.5 15 0.5906 48 168 63 MK2 B -15 15.5 0.6102 53 175 70 MK2 B -15.5 16 0.6299 53 175 70 MK2 B -16 16.5 0.6496 53 175 70 MK2 B -16.5 17 0.6693 53 175 70 MK2 B -17 17.5 0.6890 61 185 80 MK2 B -17.5 18 0.7087 61 185 80 MK2 B -18 18.5 0.7283 61 185 80 MK2 B -18.5 19 0.7480 61 185 80 MK2 B -19 19.5 0.7677 68 215 90 MK3 B -19.5 20 0.7874 68 215 90 MK3 B -20 21 0.8268 68 215 90 MK3 B -21 22 0.8661 68 215 90 MK3 B -22 23 0.9055 75 225 100 MK3 B -23 24 0.9449 75 225 100 MK3 B -24 25 0.9843 75 225 100 MK3 B -25 26 1.0236 82 260 110 MK4 B -26 27 1.0630 82 260 110 MK4 B -27 28 1.1024 82 260 110 MK4 B -28 29 1.1417 93 275 125 MK4 B -29 30 1.1811 93 275 125 MK4 B -30 31 1.2205 93 275 125 MK4 B -31 32 1.2598 93 275 125 MK4 B -32 O b n B 119 D c
