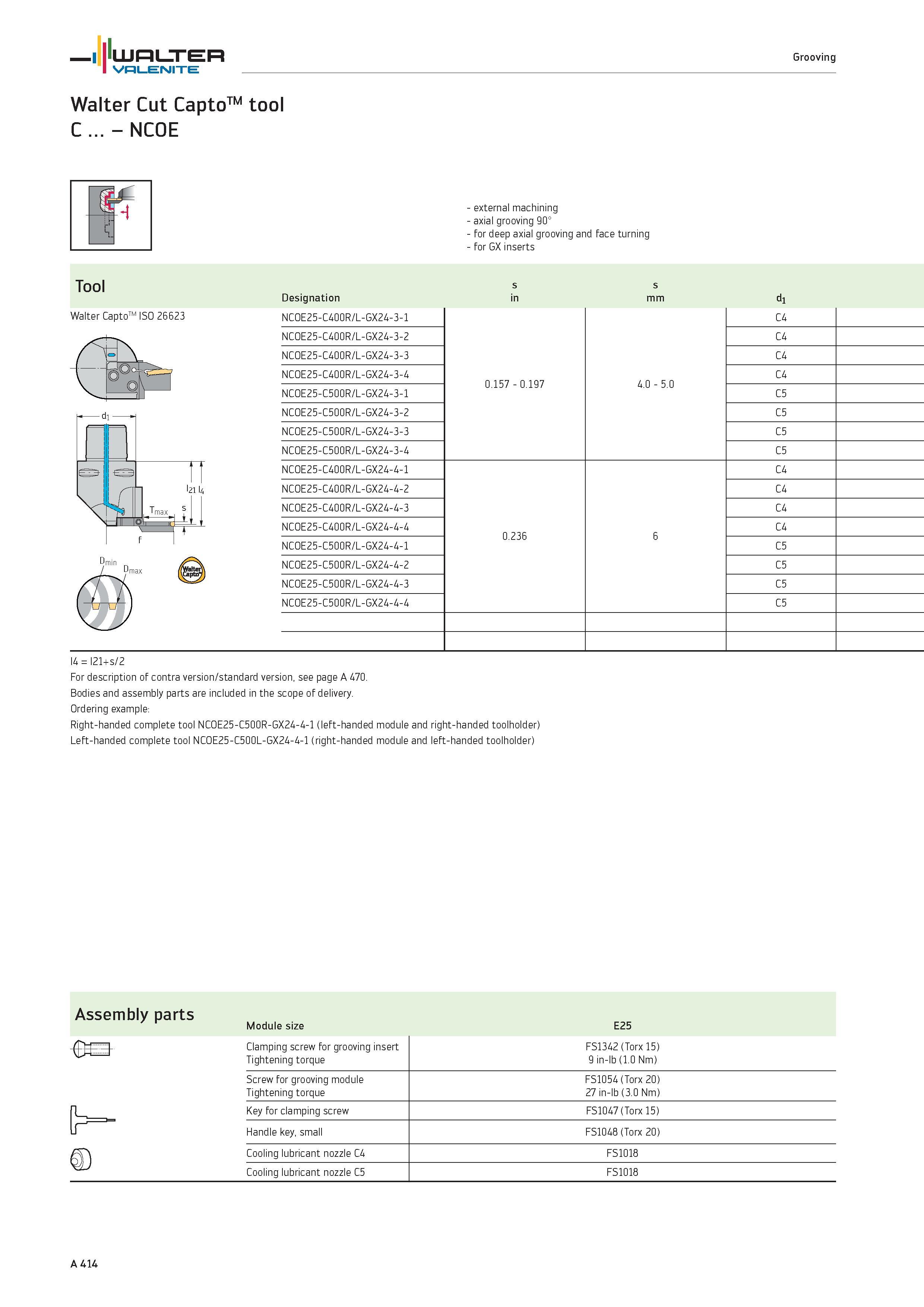

WALTER Grooving Valenite Walter Cut CaptoTM tool C NCOE external machining axial grooving 90° for deep axial grooving and face turning for GX inserts Tool Walter CaptoTM ISO 26623 Designation NCOE25-C400R/L-GX24-3-1 NCOE25-C400R/L-GX24-3-2 NCOE25-C400R/L-GX24-3-3 NCOE25-C400R/L-GX24-3-4 NCOE25-C500R/L-GX24-3-1 NCOE25-C500R/L-GX24-3-2 NCOE25-C500R/L-GX24-3-3 NCOE25-C500R/L-GX24-3-4 NCOE25-C400R/L-GX24-4-1 NCOE25-C400R/L-GX24-4-2 NCOE25-C400R/L-GX24-4-3 NCOE25-C400R/L-GX24-4-4 NCOE25-C500R/L-GX24-4-1 NCOE25-C500R/L-GX24-4-2 NCOE25-C500R/L-GX24-4-3 NCOE25-C500R/L-GX24-4-4 s in s mm 0.157 0.197 0.236 4.0 5.0 di C4 C4 C4 C4 C5 C5 C5 C5 C4 C4 C4 C4 C5 C5 C5 C5 l4 l21+s/2 For description of contra version/standard version, see page A 470. Bodies and assembly parts are included in the scope of delivery. Ordering example Right-handed complete tool NC0E25-C500R-GX24-4-1 (left-handed module and right-handed toolholder) Left-handed complete tool NC0E25-C500L-GX24-4-1 (right-handed module and left-handed toolholder) 6 Assembly parts Module size E25 s- Clamping screw for grooving insert Tightening torque FS1342 (Torx 15) 9 in-lb (1.0 Nm) Screw for grooving module FS1054 (Torx 20) Tightening torque 27 in-lb (3.0 Nm) Key for clamping screw FS1047 (Torx 15) lr Handle key, small FS1048 (Torx 20) Cooling lubricant nozzle C4 FS1018 Cooling lubricant nozzle C5 FS1018 A 414
