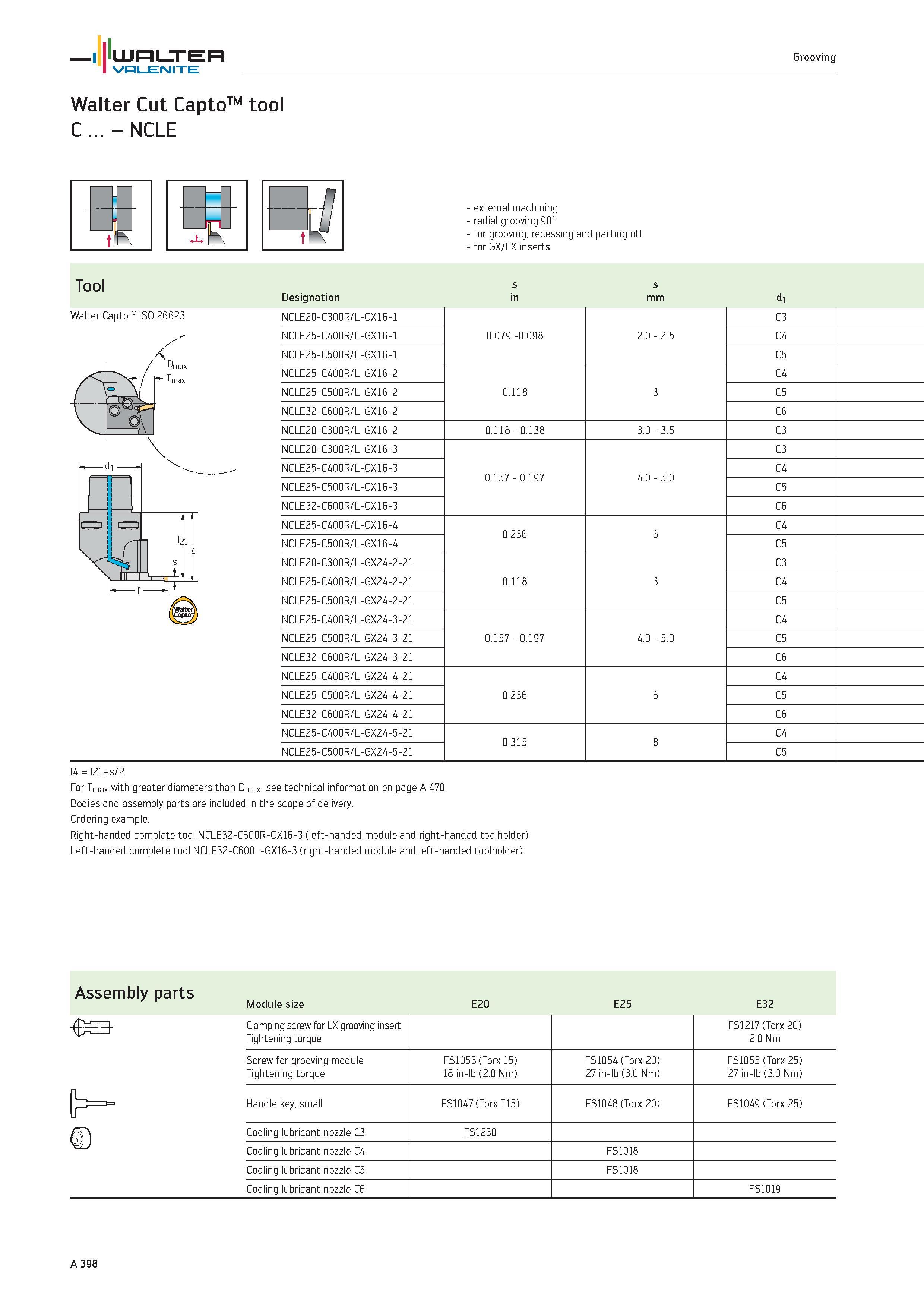

WALTER Valenite Grooving Walter Cut CaptoTM tool C NCLE external machining radial grooving 90° for grooving, recessing and parting off for GX/LX inserts Tool Walter CaptoTM ISO 26623 Designation s mm NCLE20-C300R/L-GX16-1 0.079 -0.098 2.0 2.5 C3 NCLE25-C400R/L-GX16-1 C4 NCLE25-C500R/L-GX16-1 C5 NCLE25-C400R/L-GX16-2 0.118 3 C4 NCLE25-C500R/L-GX16-2 C5 NCLE32-C600R/L-GX16-2 C6 NCLE20-C300R/L-GX16-2 0.118 0.138 3.0 3.5 C3 NCLE20-C300R/L-GX16-3 0.157 0.197 4.0 5.0 C3 NCLE25-C400R/L-GX16-3 C4 NCLE25-C500R/L-GX16-3 C5 NCLE32-C600R/L-GX16-3 C6 NCLE25-C400R/L-GX16-4 0.236 6 C4 NCLE25-C500R/L-GX16-4 C5 NCLE20-C300R/L-GX24-2-21 0.118 3 C3 NCLE25-C400R/L-GX24-2-21 C4 NCLE25-C500R/L-GX24-2-21 C5 NCLE25-C400R/L-GX24-3-21 0.157 0.197 4.0 5.0 C4 NCLE25-C500R/L-GX24-3-21 C5 NCLE32-C600R/L-GX24-3-21 C6 NCLE25-C400R/L-GX24-4-21 0.236 6 C4 NCLE25-C500R/L-GX24-4-21 C5 NCLE32-C600R/L-GX24-4-21 C6 NCLE25-C400R/L-GX24-5-21 0.315 8 C4 NCLE25-C500R/L-GX24-5-21 C5 l4 l21+s/2 For Tmax with greater diameters than Dmax. see technical information on page A 470. Bodies and assembly parts are included in the scope of delivery. Ordering example Right-handed complete tool NCLE32-C600R-GX16-3 (left-handed module and right-handed toolholder) Left-handed complete tool NCLE32-C600L-GX16-3 (right-handed module and left-handed toolholder) s Assembly parts Module size E20 E25 E32 Clamping screw for LX grooving insert Tightening torque FS1217 (Torx 20) 2.0 Nm Screw for grooving module Tightening torque FS1053 (Torx 15) 18 in-lb (2.0 Nm) FS1054 (Torx 20) 27 in-lb (3.0 Nm) FS1055 (Torx 25) 27 in-lb (3.0 Nm) r= Handle key, small FS1047(Torx T15) FS1048 (Torx 20) FS1049 (Torx 25) g\) Cooling lubricant nozzle C3 FS1230 Cooling lubricant nozzle C4 FS1018 Cooling lubricant nozzle C5 FS1018 Cooling lubricant nozzle C6 FS1019 A 398
