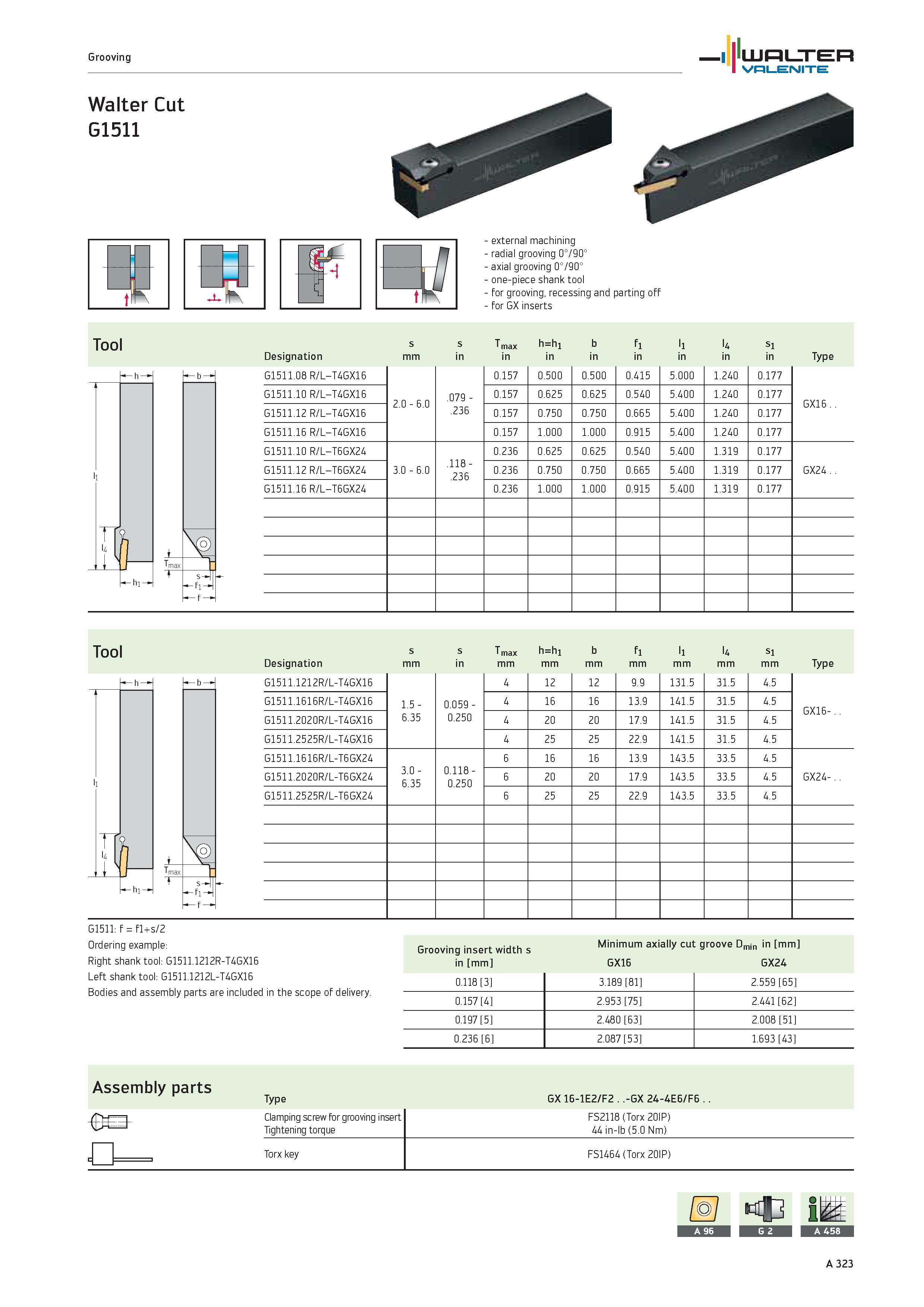

Grooving WALTER Valenite Walter Cut G1511 external machining radial grooving 0°/90° axial grooving 0°/90° one-piece shank tool for grooving, recessing and parting off for GX inserts Tool s s Tmax h h1 b f1 l1 l4 s1 Designation mm in Type G1511.08 R/L-T4GX16 2.0 6.0 .079 -.236 0.157 0.500 0.500 0.415 5.000 1.240 0.177 GX16. G1511.10 R/L-T4GX16 0.157 0.625 0.625 0.540 5.400 1.240 0.177 G1511.12 R/L-T4GX16 0.157 0.750 0.750 0.665 5.400 1.240 0.177 G1511.16 R/L-T4GX16 0.157 1.000 1.000 0.915 5.400 1.240 0.177 G1511.10 R/L-T6GX24 3.0 6.0 .118 -.236 0.236 0.625 0.625 0.540 5.400 1.319 0.177 GX24.. G1511.12 R/L-T6GX24 0.236 0.750 0.750 0.665 5.400 1.319 0.177 G1511.16 R/L-T6GX24 0.236 1.000 1.000 0.915 5.400 1.319 0.177 h b Tool s s T 3 x h II 1 b f1 l1 l4 s1 Designation mm in mm Type Tmax r G1511.1212R/L-T4GX16 1.5 -6.35 0.059 -0.250 4 12 12 9.9 131.5 31.5 4.5 GX16- G1511.1616R/L-T4GX16 4 16 16 13.9 141.5 31.5 4.5 G1511.2020R/L-T4GX16 4 20 20 17.9 141.5 31.5 4.5 G1511.2525R/L-T4GX16 4 25 25 22.9 141.5 31.5 4.5 G1511.1616R/L-T6GX24 3.0 -6.35 0.118 -0.250 6 16 16 13.9 143.5 33.5 4.5 GX24- G1511.2020R/L-T6GX24 6 20 20 17.9 143.5 33.5 4.5 G1511.2525R/L-T6GX24 6 25 25 22.9 143.5 33.5 4.5 G1511 f f1 + s/2 Ordering example Right shank tool G1511.1212R-T4GX16 Left shank tool G1511.1212L-T4GX16 Bodies and assembly parts are included in the scope of delivery. Grooving insert width s in mm Minimum axially cut groove Dmin in mm GX16 GX24 0.118 3 3.189 81 2.559 65 0.157 4 2.953 75 2.441 62 0.197 5 2.480 63 2.008 51 0.236 6 2.087 53 1.693 43 h b Assembly parts Type GX 16-1E2/F2 .-GX 24-4E6/F6 Clamping screw for grooving insert FS2118 (Torx 20IP) Tightening torque 44 in-lb (5.0 Nm) q Torx key FS1464 (Torx 20IP) A 323
