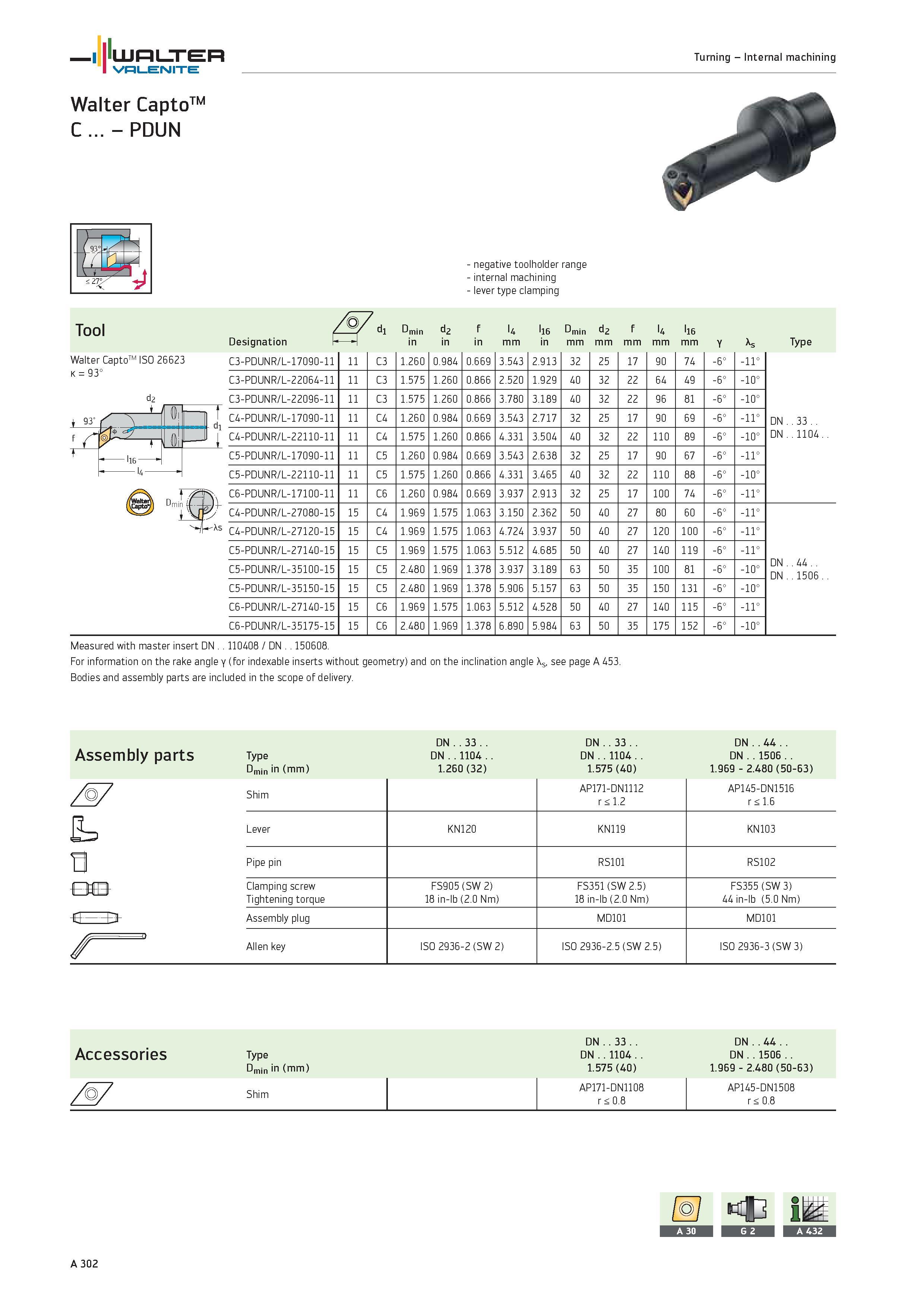

WALTER Valenite Turning Internal machining Walter CaptoTM C PDUN r1 < negative toolholder range internal machining lever type clamping Tool dl Dmin d2 f l4 l16 Dmin d2 f l4 l16 Designation r A in mm y Xs Type Walter CaptoTM ISO 26623 K 93° C3-PDUNR/L-17090-11 11 C3 1.260 0.984 0.669 3.543 2.913 32 25 17 90 74 -6° -11° DN .33.. DN .1104. C3-PDUNR/L-22064-11 11 C3 1.575 1.260 0.866 2.520 1.929 40 32 22 64 49 -6° -10° d2 C3-PDUNR/L-22096-11 11 C3 1.575 1.260 0.866 3.780 3.189 40 32 22 96 81 -6° -10° 93- c ill J C4-PDUNR/L-17090-11 11 C4 1.260 0.984 0.669 3.543 2.717 32 25 17 90 69 -6° -11° f A l16 n C4-PDUNR/L-22110-11 11 C4 1.575 1.260 0.866 4.331 3.504 40 32 22 110 89 -6° -10° A- C5-PDUNR/L-17090-11 11 C5 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 -6° -11° l4 C5-PDUNR/L-22110-11 11 C5 1.575 1.260 0.866 4.331 3.465 40 32 22 110 88 -6° -10° ( gig D mil C6-PDUNR/L-17100-11 11 C6 1.260 0.984 0.669 3.937 2.913 32 25 17 100 74 -6° -11° C4-PDUNR/L-27080-15 15 C4 1.969 1.575 1.063 3.150 2.362 50 40 27 80 60 -6° -11° DN .44.. DN .1506. C4-PDUNR/L-27120-15 15 C4 1.969 1.575 1.063 4.724 3.937 50 40 27 120 100 -6° -11° C5-PDUNR/L-27140-15 15 C5 1.969 1.575 1.063 5.512 4.685 50 40 27 140 119 -6° -11° C5-PDUNR/L-35100-15 15 C5 2.480 1.969 1.378 3.937 3.189 63 50 35 100 81 -6° -10° C5-PDUNR/L-35150-15 15 C5 2.480 1.969 1.378 5.906 5.157 63 50 35 150 131 -6° -10° C6-PDUNR/L-27140-15 15 C6 1.969 1.575 1.063 5.512 4.528 50 40 27 140 115 -6° -11° C6-PDUNR/L-35175-15 15 C6 2.480 1.969 1.378 6.890 5.984 63 50 35 175 152 -6° -10° Measured with master insert DN 110408 / DN 150608. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts m) (m c e n yp min DN..33.. DN 1104 1.260 (32) DN 33 DN 1104 1.575 (40) DN 44 DN 1506 1.969 2.480 (50-63) z 7 Shim AP171-DN1112 r < 1.2 AP145-DN1516 r < 1.6 JL Lever KN120 KN119 KN103 a Pipe pin RS101 RS102 -EM3 Clamping screw FS905 (SW 2) FS351 (SW 2.5) FS355 (SW 3) Tightening torque 18 in-lb (2.0 Nm) 18 in-lb (2.0 Nm) 44 in-lb (5.0 Nm) h> Assembly plug MD101 MD101 Allen key ISO 2936-2 (SW 2) ISO 2936-2.5 (SW 2.5) ISO 2936-3 (SW 3) DN 33 DN 44 Accessories Type DN 1104 DN 1506 Dmin in (mm) 1.575 (40) 1.969 2.480 (50-63) Z 7 Shim AP171-DN1108 r < 0.8 AP145-DN1508 r < 0.8 A 302
