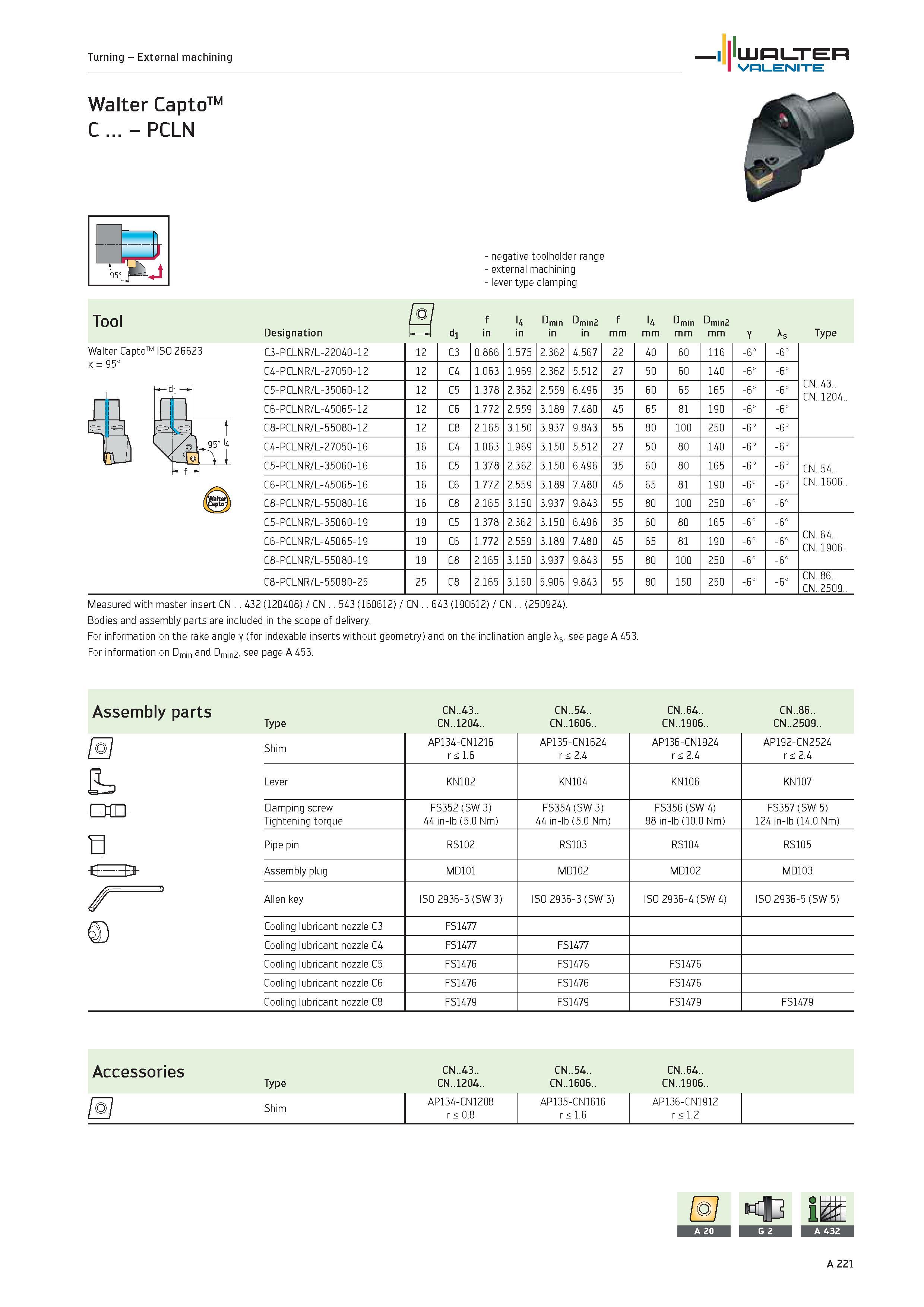

225 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.A221

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. A221 0225 ENG Lab2u

Turning External machining WALTER Valenite Walter CaptoTM C PCLN negative toolholder range external machining lever type clamping Tool f l4 Dmin Dmin2 f l4 Dmin Dmin2 Designation d1 in mm y As Type Walter CaptoTM ISO 26623 k 95° C3-PCLNR/L-22040-12 12 C3 0.866 1.575 2.362 4.567 22 40 60 116 -6° -6° C4-PCLNR/L-27050-12 12 C4 1.063 1.969 2.362 5.512 27 50 60 140 -6° -6° CN..43.. CN..1204.. C5-PCLNR/L-35060-12 12 C5 1.378 2.362 2.559 6.496 35 60 65 165 -6° -6° C6-PCLNR/L-45065-12 12 C6 1.772 2.559 3.189 7.480 45 65 81 190 -6° -6° C8-PCLNR/L-55080-12 12 C8 2.165 3.150 3.937 9.843 55 80 100 250 -6° -6° C4-PCLNR/L-27050-16 16 C4 1.063 1.969 3.150 5.512 27 50 80 140 -6° -6° C5-PCLNR/L-35060-16 16 C5 1.378 2.362 3.150 6.496 35 60 80 165 -6° -6° CN..54.. C6-PCLNR/L-45065-16 16 C6 1.772 2.559 3.189 7.480 45 65 81 190 -6° -6° CN..1606.. C8-PCLNR/L-55080-16 16 C8 2.165 3.150 3.937 9.843 55 80 100 250 -6° -6° C5-PCLNR/L-35060-19 19 C5 1.378 2.362 3.150 6.496 35 60 80 165 -6° -6° CN..64.. CN..1906.. C6-PCLNR/L-45065-19 19 C6 1.772 2.559 3.189 7.480 45 65 81 190 -6° -6° C8-PCLNR/L-55080-19 19 C8 2.165 3.150 3.937 9.843 55 80 100 250 -6° -6° C8-PCLNR/L-55080-25 25 C8 2.165 3.150 5.906 9.843 55 80 150 250 -6° -6° CN..86.. CN..2509.. Measured with master insert CN 432 (120408) / CN 543 (160612) / CN 643 (190612) / CN (250924). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. Assembly parts Type CN..43.. CN..1204.. CN..54.. CN..1606.. CN..64.. CN..1906.. CN..86.. CN..2509.. Shim AP134-CN1216 r < 1.6 AP135-CN1624 r < 2.4 AP136-CN1924 r < 2.4 AP192-CN2524 r < 2.4 Lever KN102 KN104 KN106 KN107 Clamping screw Tightening torque FS352 (SW 3) 44 in-lb (5.0 Nm) FS354 (SW 3) 44 in-lb (5.0 Nm) FS356 (SW 4) 88 in-lb (10.0 Nm) FS357 (SW 5) 124 in-lb (14.0 Nm) n Pipe pin RS102 RS103 RS104 RS105 h> Assembly plug MD101 MD102 MD102 MD103 Allen key ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) ISO 2936-5 (SW 5) Cooling lubricant nozzle C3 FS1477 Cooling lubricant nozzle C4 FS1477 FS1477 Cooling lubricant nozzle C5 FS1476 FS1476 FS1476 Cooling lubricant nozzle C6 FS1476 FS1476 FS1476 Cooling lubricant nozzle C8 FS1479 FS1479 FS1479 FS1479 Accessories Type CN..43.. CN..1204.. CN..54.. CN..1606.. CN..64.. CN..1906.. Shim AP134-CN1208 r < 0.8 AP135-CN1616 r < 1.6 AP136-CN1912 r < 1.2
